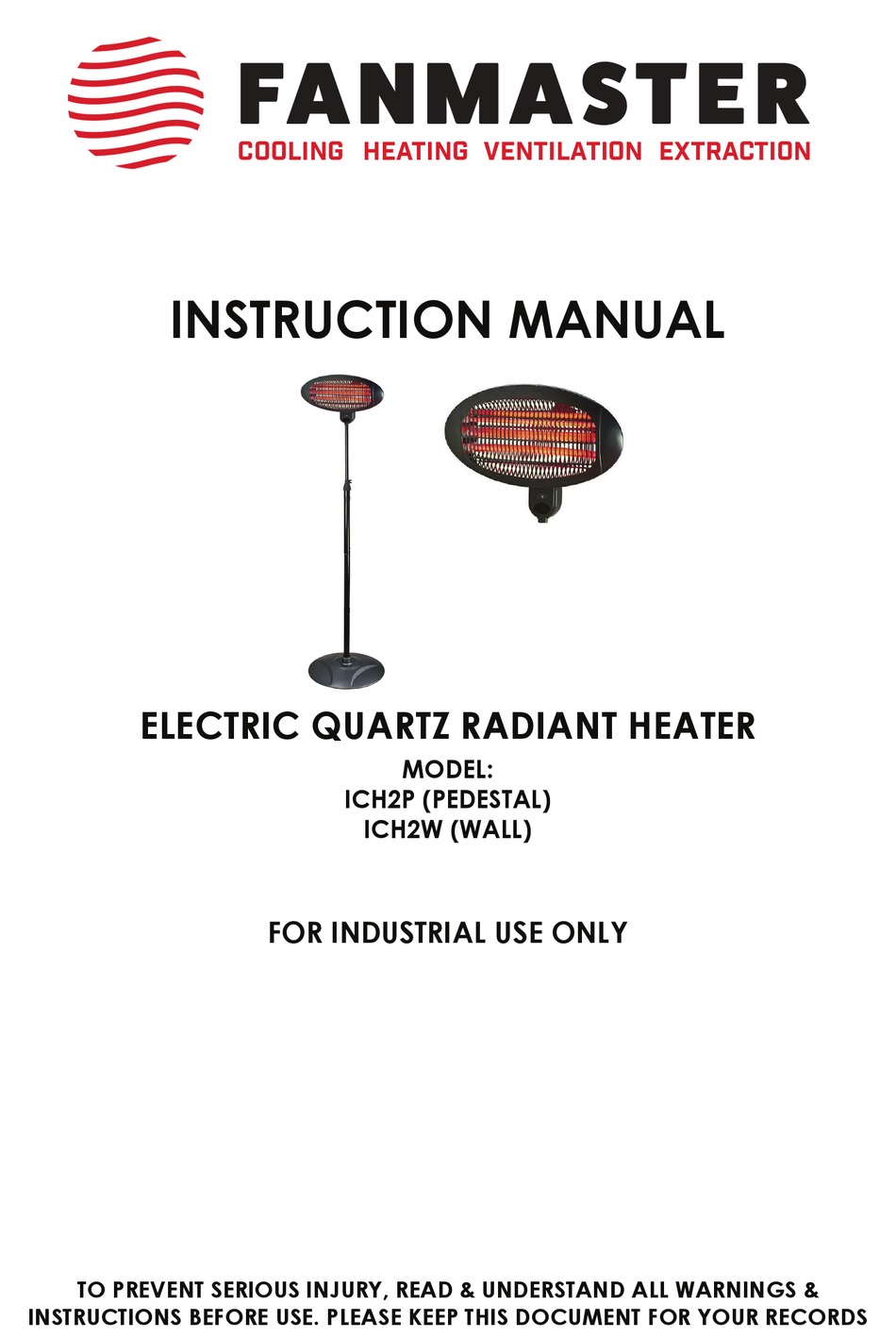

- Page 1 FA NM A ST E R cooling heating ventilation extraction INSTRUCTION MANUAL ELECTRIC QUARTZ RADIANT HEATER MODEL: ICH2P (PEDESTAL) ICH2W (WALL) FOR INDUSTRIAL USE ONLY TO PREVENT SERIOUS INJURY, READ & UNDERSTAND ALL WARNINGS & INSTRUCTIONS BEFORE USE. PLEASE KEEP THIS DOCUMENT FOR YOUR RECORDS...
-
Page 2: For Your Information
FOR YOUR INFORMATION Thank you for purchasing a Fanmaster electric radiant heater. Please read this instruction manual carefully before using this heater. Disclaimer: Fanmaster reserves the right to make alterations to specifications, quantities, dimensions, for production or other reasons, subsequent to publication. - Page 3 ALWAYS CHECK THE POWER CABLE BEFORE USING THE APPLIANCE. IT MUST NOT BE BENT, TAUT, STRETCHED, CRUSHED OR ANY WAY DAMAGED. • IF THE POWER CORD AND/OR PLUG IS DAMAGED, IT MUST BE REPLACED BY FANMASTER, A SERVICE AGENT OR A QUALIFIED PERSONS. •...
-
Page 4: Product Description And Specifications
2. PRODUCT DESCRIPTION & SPECIFICATIONS PRODUCT DESCRIPTION Industrial electric Quartz radiant heater. SPECIFICATIONS MODEL ICH2P ICHW Type Pedestal Wall 2000W 2000W Heat Output 3,824BTU 3,824BTU 3 Heat Settings 3 Heat Settings 1 x 650W 1 x 650W Control settings 2 x 1300W... -
Page 5: Getting To Know Your Heater
3. GETTING TO KNOW YOUR HEATER HEATER/ELEMENT HEAD KNOB HEATER BODY SETTING INDICATOR PULL SWITCH ADJUSTMENT HEIGHT KNOB TOP POST 3 x M5 X 6 SCREW MIDDLE POST 3 x M5 X 6 SCREW LOWER POST CORD CLAMP POWER CORD BASE COVER 4 x M6 X 30 SCREW BASE... - Page 6 4. ASSEMBLING & OPERATING INSTRUCTIONS Remove the heater from the carton. If the heater is damaged, please contact Fanmaster or where you purchased the heater from. How to assemble (ICH2P) 1. Insert Lower Post (11) into the Base (16). Fix it by screwing 4 x M6X30 screws (remove from base).
- Page 7 4. ASSEMBLING & OPERATING INSTRUCTIONS Connect the Top Post (7) to the Middle Post (9) and fix with 3 x M5X6 screws. Connect the Heater Head (1) to the Top Post (7) and tighten by rotating the Knob (2). Place the power cord (13) to the cord clamp (12). Adjust heater head angle as required 0º~45º.
- Page 8 4. ASSEMBLING & OPERATING INSTRUCTIONS Wall Mount Installation (ICH2W) 1. Please ensure the distance between the top of heater heater & ceiling should be more than 0.5m. The distance between side of the heater should more than 0.5m and the distance between the bottom of the heater to the floor should be more than 2m.
- Page 9 4. ASSEMBLING & OPERATING INSTRUCTIONS 1. Mark out corresponding holes on the wall as per the mounting bracket on the back of the heater. All 4 holes must be marked & drilled. 2. Use an 8mm drill bit to make the holes in the wall, minimum 35mm depth. Please use the correct drill bit for the wall material you are drilling into.
- Page 10 4. ASSEMBLING & OPERATING INSTRUCTIONS Ensure you use the correct fixings for the wall material you are mounting the heater to. Fasten the fixings and allow for 4-5mm overhang. Align the back of heater bracket holes, move the product to the left into the safety holes.
-
Page 11: Cleaning, Maintenance And Storage
4. ASSEMBLING & OPERATING INSTRUCTIONS • Position the heater so it stands upright & is on a firm surface (ICH2P). • Connect the plug to the relevant power source. • Switch heater on by means of the Pull Switch Position 0 - OFF... -
Page 12: Troubleshooting
7. TROUBLESHOOTING PROBLEM CAUSE SOLUTION The heater does not operate, even Disconnect the plug, check The plug is loose, bad when it is plugged the connection of the plug & connection in & the switch, socket. Try another socket thermostat is ON Element is not Power or Voltage Surge Replace Element... -
Page 13: Warranty
To make a claim under the warranty, take the product (with proof of purchase) to the store where you purchased the product or go to https://www.fanmaster.com.au/warranty-claims-returns. This warranty is given by Fanmaster Pty Ltd ABN: 45 353 934 457 Unit 1/6-8 Yalgar Rd, KIRRAWEE NSW 2232 P: 1300 900 345 E: warranties@fanmaster.com.au... - Page 16 FA NM A ST E R cooling heating ventilation extraction Fanmaster Pty Ltd | 1/6-8 Yalgar Road, KIRRAWEE NSW 2232 1300 900 345 | sales@fanmaster.com.au | www.fanmaster.com.au N11664 MADE IN CHINA...
