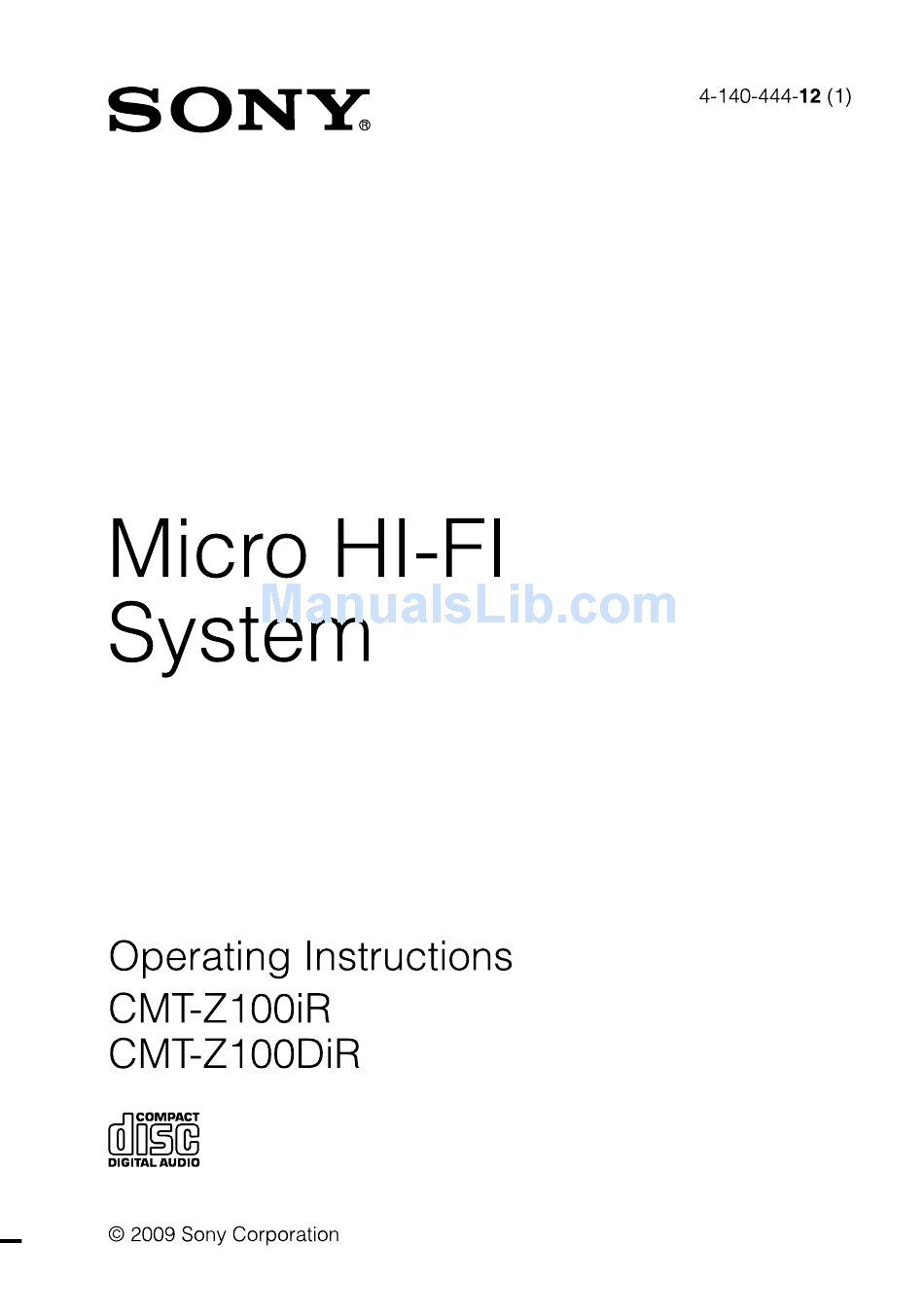

Sony CMT-Z100DIR Operating Instructions Manual
Space-conscious multimedia cd micro system, with ipod® dock, extra large sub display and touch panel control. crystal clear sony sound quality with digital amplifier, plus usb rec / play and dab tuner. stylish new slim design can be wall-hung or self-stan
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Sony CMT-Z100DIR
Summary of Contents for Sony CMT-Z100DIR
- Page 2 Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives. The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku, Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany.
- Page 3 Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic...
- Page 4 Note on DualDiscs A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed.
-
Page 5: Table Of Contents
Table of Contents Guide to parts and controls ... 6 Getting Started Hooking up the system securely ...12 Setting the clock ...15 Operations Playing a CD/MP3 disc ...16 Listening to the radio ...18 Playing the iPod ...20 Before using the USB device with this system ...22 Transferring music from a disc to a USB device ...23... -
Page 6: Guide To Parts And Controls
Guide to parts and controls This manual mainly explains operations using the remote, but the same operations can also be performed using the buttons on the unit having the same or similar names. Main unit * Touch sensitive buttons... - Page 7 / (power) button (page 15, 32, Press to turn on or off the system. STANDBY indicator (page 32, 37) Lights up when the system is turned off. Disc slot (page 16) (eject) button Press to eject a disc. ...
- Page 8 +/ (select folder) button (page 16, 23, 25, 28, 29) Press to select a folder. TUNE +/ (tuning) button (page 18) Press to tune in the desired station. / (go back/go forward) button (page 16, 21, 25, 28, 29) Press to select a track or file.
- Page 9 Remote / (power) button (page 15, 35) Press to turn on or off the system. + (tuning) button (page 18) Press to tune in the desired station. (go forward) button (page 16, 21, 25, 28, 29) Press to select a track or file. ...
- Page 10 FUNCTION +/ button (page 16, 18, 20, 23, 24, 25, 26, 28, 29, 31) Press to select the function. VOLUME +/ button Press to adjust the volume. DSGX button (page 31) EQ button (page 31) Press to select the sound effect. ...
- Page 11 PLAY MODE/TUNING MODE button (page 17, 18, 28, 29, 30) Press to select the play mode of a disc or an optional USB device. Press to select the tuning mode. (tuning) button (page 18) Press to tune in the desired station. ...
-
Page 12: Getting Started
Getting Started Hooking up the system securely To wall outlet AM loop antenna FM lead antenna (Extend it horizontally.) Connect brown side. 75-ohm coaxial cable with F male type connector (not supplied) (CMT-Z100DiR only) To DAB external antenna (not supplied) (CMT-Z100DiR only) ... -
Page 13: Inserting Batteries
Voltage selector For models with a voltage selector, set VOLTAGE SELECTOR to the local power line voltage. For Latin American model, set VOLTAGE SELECTOR to 120 or 220 240 V. Power Connect the power cord to a wall outlet. The demonstration appears in the main display. -
Page 14: Using The Ipod
Using the iPod Insert an iPod Dock Adapter into the Dock before use. The iPod Dock Adapter is not supplied with the system. Use an iPod Dock Adapter supplied with your iPod. For details on the iPod Dock Adapter, refer to the user’s guide of your iPod. -
Page 15: Setting The Clock
Setting the clock Use buttons on the remote to set the clock. Turn on the system. Press /. Select the clock set mode. Press TIMER MENU. If “PLAY SET?” flashes, press / repeatedly to select “CLOCK SET?, ” and then press ENTER. Set the time. -
Page 16: Operations
Operations Playing a CD/MP3 disc Select the CD function. Press FUNCTION +/ repeatedly. Insert a disc. Insert a disc in the disc slot with the label side facing forward. Playback starts automatically when you insert a disc in the disc slot. Insert a disc with the label side facing forward. - Page 17 Notes on inserting/ejecting a disc If you insert or eject a disc, the system will automatically change to the CD function, even when other function was selected. You cannot eject a disc in the following cases. When the music is being transferred or recorded to the USB device.
-
Page 18: Listening To The Radio
Listening to the radio Note that the DAB tuning is only available for CMT-Z100DiR. Select “TUNER DAB”, “TUNER FM” or “TUNER AM. ” Press FUNCTION +/ repeatedly. Perform tuning. For automatic scanning Press TUNING MODE repeatedly until “AUTO” appears, and then press +/... -
Page 19: Presetting A Radio Station
Press ENTER to perform scanning. Scanning begins. The scanning progress is indicated by advancing asterisks (). Depending on the DAB services available in your area, scanning may take a few minutes. When scanning is complete, a list of available services is created. Notes ... -
Page 20: Playing The Ipod
To call up a preset radio station, press TUNING MODE repeatedly until “PRESET” appears, and then press +/ repeatedly to select the desired preset number. Note on presetting DAB stations You can preset a DAB service only when it can be received. - Page 21 To use an iPod, refer to the user’s guide of your iPod. Sony cannot accept responsibility in the event that data recorded to iPod is lost or damaged when using an iPod with this system.
-
Page 22: Before Using The Usb Device With This System
Before using the USB device with this system Check the websites below for information about compatible USB devices. For customers in Europe: <http://support.sony-europe.com/> For customers in Latin America: <http://www.sony-latin.com/index.crp> Notes When USB cable connection is necessary, connect the USB cable supplied with the USB device to be connected. -
Page 23: Transferring Music From A Disc To A Usb Device
Transferring music from a disc to a USB device You can connect an optional USB device to the (USB) port on the unit and transfer music from a disc to the USB device. You can transfer music from a CD-DA disc or MP3 disc only. - Page 24 Start transferring. Press ENTER. Transferring starts. When using CD SYNC When the transfer is completed, access to the USB device and the CD player stop automatically. When using REC1 When the transfer is completed, access to the USB device stops automatically and the CD player continues playback.
- Page 25 To erase audio files or folders from the USB device You can erase audio files or folders from the USB device. Note that you cannot erase audio files and folders in shuffle play mode or program play mode. Note Do not insert a disc during erase operation. If you do so, the system will automatically change to the CD function, and audio files or folders are deleted up to the point when the erase is...
-
Page 26: Recording Analog Audio To A Usb Device
Notes When transferring music from a CD, the tracks are transferred as 128 kbps MP3 files. When transferring music from an MP3 disc, MP3 files are transferred with the same bit rate as the original MP3 files. If you start transferring in shuffle play mode, repeat play mode or in program play mode (when no tracks or MP3 files are programmed), the selected play mode is... -
Page 27: For Recording
Set the USB device to stand by for recording. Press REC TO USB on the unit. “Please Wait” appears and the display cycles between “MB Free” or “GB Free” (free space on the USB device) and “Push ENTER. ” The USB device stands by for recording. -
Page 28: Playing A File Of The Usb Device
Playing a file of the USB device You can listen to music stored in the USB device. The audio formats that can be played back by this system are as follows: MP3*/WMA*/AAC* * Files with copyright protection (Digital Rights Management) cannot be played back by this system. -
Page 29: Creating Your Own Program (Program Play)
Note on shuffle play mode When you turn off the system, the selected “SHUF” or “ shuffle play mode ( is cleared and the play mode returns to normal “ ” play mode ( Notes The following USB device/situations can increase the time it takes to start playback: ... - Page 30 Program the selected track or file. Press ENTER to enter the selected track or file. “ . ” appears when the total program time exceeds 100 minutes for a CD, or when you select an MP3 file. The total program time cannot be displayed, so “...
-
Page 31: Using Optional Audio Components
Using optional audio components Prepare the sound source. Connect additional audio component to the AUDIO IN jack on the unit using an audio analog cord (not supplied). Turn down the volume. Press VOLUME . Select the AUDIO function. Press FUNCTION +/ repeatedly. Start playback. -
Page 32: Turning Off The Beep Sound
Turning off the beep sound You can turn off the beep sounds of the system. “BEEP ON” is set by default. Use buttons on the unit to perform the following procedure. Turn on the system. Press . Hold down , then press DISPLAY MODE until “BEEP OFF”... - Page 33 The system offers the following display options. Display option When the system is off, Demonstration The demonstration indicator is displayed. Power Saving The display is turned Mode off to conserve power. The timer and clock continue to operate. To change the display mode The main and sub displays can be turned on and off.
-
Page 34: Using The Timers
The following are displayed: elapsed playing time of a track. remaining playing time for a track. remaining playing time of a current CD-DA disc during normal play. ID3 tag information for MP3 files when ID3 version 1 and version 2 tags are used (ID3 version 2 tag information display has priority when both ID3 version 1 and version 2 tags are used for a single MP3... - Page 35 Select the timer set mode. Press TIMER MENU. Set the timer. Press / repeatedly to select “PLAY SET?” or “REC SET?”, and then press ENTER. “ON” appears, and the hour indication flashes. Set the time to start playback or recording. Press /...
- Page 36 To change the setting Start over from step 1. Notes for the iPod user Make sure the iPod is not playing when using the Play Timer. The Play Timer may not be activated depending on the status of the connected iPod.
-
Page 37: Additional Information
After the STANDBY indicator stops flashing, reconnect the power cord, and turn on the system. If the issue persists, contact your nearest Sony dealer. General The display starts flashing as soon as you plug in the power cord even though you have not turned on the system. - Page 38 CD function when a disc is inserted. The system does not eject the disc and “LOCKED” appears. Contact your Sony dealer or local authorized Sony service facility. The system does not eject the disc and “Not in Use” appears.
- Page 39 USB device becomes fragmented. Refer to the USB device operation manual for how to deal with this problem. If the problem persists, contact your nearest Sony dealer. Transferring, recording or erase operations stopped partway, and automatically changed to the CD function.
- Page 40 USB device may be broken. Refer to the USB device operation manual for how to deal with this problem. If the problem persists, contact your nearest Sony dealer. Are you using a supported USB device? If you connect an unsupported USB device, the following problems may occur.
- Page 41 Refer to the USB device operation manual for how to deal with this problem. If the problem persists, contact your nearest Sony dealer. Play does not start. Turn off the system and reconnect the USB device, then turn on the system.
- Page 42 Files that are encrypted or protected by passwords, etc. cannot be played back. * This system supports FAT16 and FAT32, but some USB storage devices may not support all of these FAT. For details, see the operation manual of each USB storage device or contact the manufacturer.
-
Page 43: Messages
The number of folders on the USB device has reached the maximum. LOCKED The system does not eject the disc. Contact your nearest Sony dealer. No Device The USB device is either not connected, stopped, or is having a problem. - Page 44 No Step All of the programmed tracks or files have been erased. No Track Playable file on the USB device is not loaded in the system. Not in Use You tried to perform a specific operation under conditions where that operation is prohibited.
-
Page 45: Precautions
Precautions Discs that this system CAN play Audio CD CD-R/CD-RW (audio data/MP3 files) Discs that this system CANNOT play CD-ROM CD-R/CD-RW other than those recorded in music CD format or MP3 format conforming to ISO9660 Level 1/Level 2, Joliet ... - Page 46 On placement Do not place the system in an inclined position or in locations that are extremely hot, cold, dusty, dirty, or humid or lacking adequate ventilation, or subject to vibration, direct sunlight or a bright light. Be careful when placing the unit on surfaces that have been specially treated (for example, with wax, oil, polish) as staining or discoloration of...
-
Page 47: Specifications
Specifications Amplifier section European model: DIN power output (rated): 16 + 16 watts (8 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 20 + 20 watts (8 ohms at 1 kHz, 10% THD) Music power output (reference): 20 + 20 watts (8 ohms at 1 kHz, 10% THD) Latin American model: DIN power output (rated):... - Page 48 DAB frequency table (Band-III) Frequency Label 174.928 MHz 176.640 MHz 178.352 MHz 180.064 MHz 181.936 MHz 183.648 MHz 185.360 MHz 187.072 MHz 188.928 MHz 190.640 MHz 192.352 MHz 194.064 MHz 195.936 MHz 197.648 MHz 199.360 MHz 201.072 MHz 202.928 MHz 204.640 MHz 206.352 MHz 208.064 MHz...
-
Page 49: Compatible Ipod Models With This System
Compatible iPod models with this system You can use the following iPod models on this system. Update your iPod with the latest software before using it. iPod touch 2nd iPod nano 4th generation generation (video) iPod classic iPod nano 2nd generation (aluminum) iPod 4th... -
Page 50: Installing The System On The Wall
Sufficient expertise is required for installing this product. Be sure to subcontract the installation to Sony dealers or licensed contractors and pay special attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation, or installing any other than the specified product. - Page 51 Adjust the position of the holders of the Base Plate. Remove the screws that secure the left and right holders to the Base Plate and move the holders to the inner position. Firmly secure each holder using the screws removed in the previous procedure .
- Page 52 See “System installation dimensions diagram” (page 58), to determine the installation location. Allow for suitable clearance between the system, ceiling and any protruding wall parts as shown below. Never install the system set as shown below: Air circulation is blocked. Wall Air circulation is blocked.
- Page 53 Secure the Base Plate to the wall using 4 or more 6 mm diameter or equivalent screws (not supplied). Select 4 screw holes with the mark shown in the diagram below and tighten the screws securely so that they will not become loose. Secure the Base Plate so that it is level.
- Page 54 Detach the stand from the system. Remove the 2 screws that secure the stand from the system. Push the 2 tabs located on the bottom of the stand, and pull up the stand to detach from the system. Note Do not remove the stand for any reason other than to wall-mount the system.
- Page 55 Secure the two Mounting Hook to the rear of the system. Secure the Mounting Hook to the rear of the system temporarily, using the 4 screws (+PSW4 × 12) supplied with the Wall-mount bracket SU-WL100 Be sure that screws are tightened securely with equal torque strength to the rear of the system.
- Page 56 Install the system onto the Base Plate. Determine the holes of the Base Plate for latching the upper hooks of the Mounting Hook. Hold the system securely with both hands, and gently align it on the wall. Mounting Hook Holder Mounting Hook Base Plate...
- Page 57 Firmly secure the system and the Base Plate, using the 2 screws (+PSW4 × 12) supplied with the Wall-mount bracket SU-WL100. Secure the screws to the angle mark 0. Note When using an electric screwdriver, set the torque setting to approximately 1.5 N·m (15 kgf·cm). WARNING Be sure to tighten both left and right securing screws firmly.
-
Page 58: System Installation Dimensions Diagram
Confirm the completion of the installation. Check the following points. The hooks of the Mounting Hook are firmly latched in the holes of the Base Plate. The power cord is not twisted or pinched. The 2 screws that secure the Mounting Hook and the Base Plate are securely tightened. -
Page 59: Safety Information
For safety reasons, it is strongly recommended that you use Sony accessories, including: Wall-mount bracket SU-WL100 It is strongly recommended that you use a Sony Wall-mount bracket in order to provide adequate air-circulation. Leave at least this space around the system.
