GABRIEL KAKELUGNAR STUDIO2 Assembly Instructions Manual

Tile stove
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Assembly instruction
TMS 2015-10-15
All manuals and user guides at all-guides.com
STUDIO2 tile stoves
Model:
G420 Studio2 White
G421 Studio2 White Special
G422 Studio2 Black
G423 Studio2 Special
Contents
Tests and approvals ............................ 2
Body
Preparations ...................................... 4
Important measurements...................... 5
Assembly ..................................... 7-17
Tiling plan ....................................... 19
Cassette installation ..................... 20-23
Fan installation ................................ 23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STUDIO2 and is the answer not in the manual?

Questions and answers

Related Manuals for GABRIEL KAKELUGNAR STUDIO2

Summary of Contents for GABRIEL KAKELUGNAR STUDIO2

  • Page 1: Table Of Contents

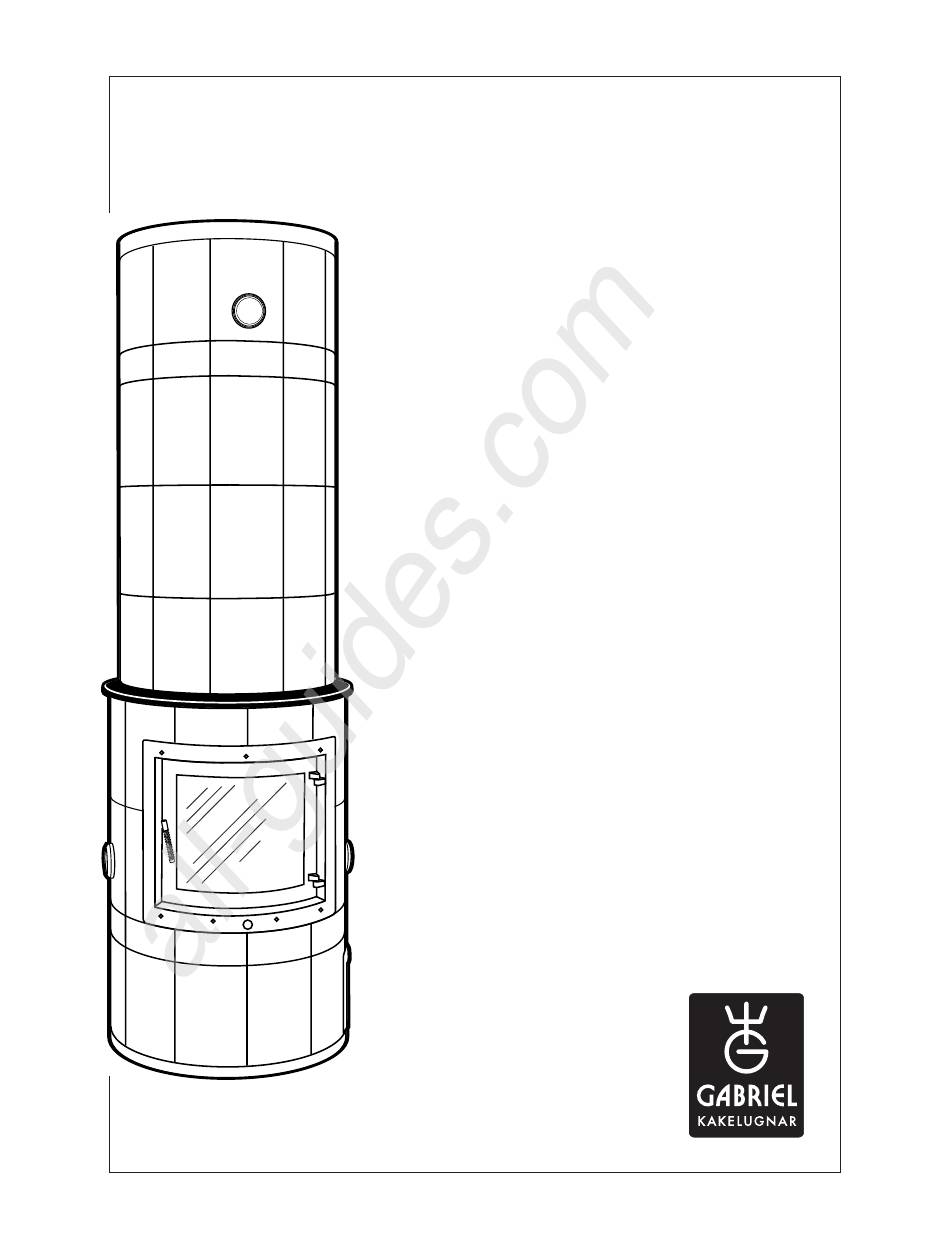

    All manuals and user guides at all-guides.com Assembly instruction STUDIO2 tile stoves Model: G420 Studio2 White G421 Studio2 White Special G422 Studio2 Black G423 Studio2 Special Contents Tests and approvals ......2 Explanation of symbols / foreword ..3 Body Preparations ........

  • Page 2: Tests And Approvals

    Slow heat release appliance (SHRA) fired by solid fuel Type & serial no. Type & serial no. DECLARATION of PERFORMANCE (DoP) Gabriel Kakelugnar 300-serie (G310 - G360) Gabriel Kakelugnar 300-serie (G310 - G360) DECLARATION of PERFORMANCE (DoP) DECLARATION of PERFORMANCE (DoP) No.

  • Page 3: Explanation Of Symbols/Foreword

    Thickness of joints The mortar joints between the modules are approximately 5-10mm. Use a slightly dryer mortar mix for the first half of the assembly. Use a suitable wet brush for neat and tight joints. STUDIO2 • 3...

  • Page 4: Preparations

    125 mm combustion air inlet connection ø In a corner Against a straight wall Combustible wall Combustible wall min. 75 mm min. 75 mm min. 75 mm min. 75 mm 415 mm 415 mm Base block Ø 680 mm 4 • STUDIO2...

  • Page 5: Important Measurements

    Distance to ceiling (50 mm) In a corner Against a straight wall Combustible ceiling Combustible wall Combustible wall min. 75 mm min. 75 mm min. 50 mm min. 75 mm Base blok Ø 730 mm Body Body STUDIO2 • 5...

  • Page 6: Overall Installation Sequence

    All manuals and user guides at all-guides.com Overall installation sequence STUDIO2 GABRIEL KERAMIK AB Start A 6 • STUDIO2...
  • Page 7 Make sure the regu- lation distance to the wall is kept. Level vertically and horizontally, see figure 1. The opening can be directed at right. Check the distance to the wall (min. 75 mm) 600 mm STUDIO2 • 7...
  • Page 8 Level vertically and horizon- tally. For a better joint, wipe the contact surfaces with a squeezed sponge, then brush with a wet radia- tor brush. This is a general 250 mm instruction for the whole assembly. 8 • STUDIO2...
  • Page 9 Make sure that no mortar falls between the blocks. Level vertically and horizontally. Make sure that no mortar falls between the firebox block and the outer ring. Brush the joints with a wet radiator brush. STUDIO2 • 9...
  • Page 10 508 mm Set the third firebox block (8A) on top of the second one. Make sure that no mortar falls between the blocks. Level vertically and horizontally. Note! Clean off mortar leftovers. Plain with a radiator brush. 10 • STUDIO2...
  • Page 11 Keep the support in position till the next day or even longer. Set the outer block (7) in mortar. Ø 630 mm Ø 680 mm STUDIO2 • 11...
  • Page 12 Level vertically and horizontally. Check the control measurements, see page 5. For a better joint, wipe the contact surfaces with a squeezed sponge. After- wards gently brush the mortar joints with a wet radiator brush. 12 • STUDIO2...
  • Page 13 Set the outer block (7) in mortar. Level vertically and horizontally. Set the “church roof” (11). Level vertically and horizontally. Seal with 2-3 mm insulation. Make sure that no mortar falls between the firebox block and the outer block. STUDIO2 • 13...
  • Page 14 GABRIEL KERAMIK AB Set the flame protection block (13) with mortar. Level vertically and horizontally. Set the outer block (7) with mortar. Level vertically and horizontally. Set the outer block (7) with mortar. Level vertically and horizontally. 1965 mm 14 • STUDIO2...
  • Page 15 Smear a small string of mortar on top of the divider block and the flame protection block. Fix the insulation in the mortar string. The insulation creates an expan- sion gap aginst the divider block, allowing the inner core to move vertically. STUDIO2 • 15...
  • Page 16 (easiest done before the assembly). Top flue connection Join the two blocks together with the heat-resistant silicon or mortar. Side flue connection to an exist- ing chimney. Cut the back of the block for a suit- able connection. 16 • STUDIO2...

  • Page 17: Assembly

    Side connected chimney Turn the lid to fit the hole exactly over the underlying block. Fill and even with mortar. Assembly tiles and cassette STUDIO2 • 17...

  • Page 18: Tiling Preparation And Assembly

    • Glue or attach the decor lists with silicone. Use clamps for the top list and a strap for the bottom list. • The tiles are hand-made - there might be some variations in measurements and colours. 18 • STUDIO2...

  • Page 19: Tiling Plan

    All manuals and user guides at all-guides.com Tiling plan GABRIEL KERAMIK AB Kakelsats Studio2 Decor steel band 50 mm 66 cm tiles Granite shelf 27 " tile (Alternative placement) 30 mm Decor steel band STUDIO2 • 19...
  • Page 20 All manuals and user guides at all-guides.com Cassette installation (Studio, Studio2 and round tiled stove) GABRIEL KERAMIK AB 80/125 80/100 Outdoor cumbustion air inlet Indoor cumbustion air inlet Mount the reduction flange to the flexible tube and Mount the reduction flange to the flexible tube and connect to the flange for inlet air through the floor.

  • Page 21: Cassette Installation

    Fasten the flange plate. Mount the damper in the bottom of the cassette, do not forget the cotter pins. Make sure the damper has a free action. Fasten the cover plate. STUDIO2 • 21...
  • Page 22 (dipping the finger into water with washing-up liquid will make it easier to get a neat joint).Remove the masking tape. Insulate behind the cassette, around the sides and in the front edge between the cassette and the body. 22 • STUDIO2...

  • Page 23: Fan Installation

    Note! The fan must be moun- Sealing block ted so that air is sucked into the fan. The air flow passes through channels in the cassette and exit through the upper front edge. STUDIO2 • 23...
  • Page 24 All manuals and user guides at all-guides.com Low temperature flue gas outlet The traditional 5-channel flue gas principle is still incomparable Inner core Outer mantle Expansion area Heat accumulating, dense, fire-resistant material for long-lasting heat radiation Fan controlled direct heat through channels in the hot air cassette for efficient heat circulation Airflow on the inside keeps...
