Installation:
Please follow the steps below to correctly install the product;
The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer
•
than 300mm is not expected.
•
Remove the Lid from the Base by using a flat screwdriver to release the snap fits (see below)
•
For products requiring a Corridor or Area Lens, replace Lens now (see below)
•
Cut/Drill out Cable Entry points (A=End Entry, B=Rear Entry)
•
Drill out the required fixing holes on the Base (see image below, C=Junction Box fixing)
•
Mark holes on mounting surface (use drilled out holes on the Base as a template)
•
Insert Mains Cables & mount Base using appropriate fixings to ensure a secure installation
(mounting points must be sealed appropriately to ensure proper protection from water ingress)
Mount Base using appropriate fixings to ensure a secure installation (pre-drill holes if required)
•
•
Terminate the Mains Cables into terminal block. Ensure Live, L & Neutral, N wires are connected
as per Terminal Block Label. Earth is not required, if Earth is brought in, it can be terminated to E.
•
Re-attach Lid Assembly, ensuring to align Mains Connector Pins into Terminal Block
Where QR/Barcode labels have been supplied with the product, ensure one of the QR/Barcode
•
labels is adhered to a visible surface on the base of the product.
•
If the CTP capabilities are activated, please affix the CTP Status Label to a visible surface.

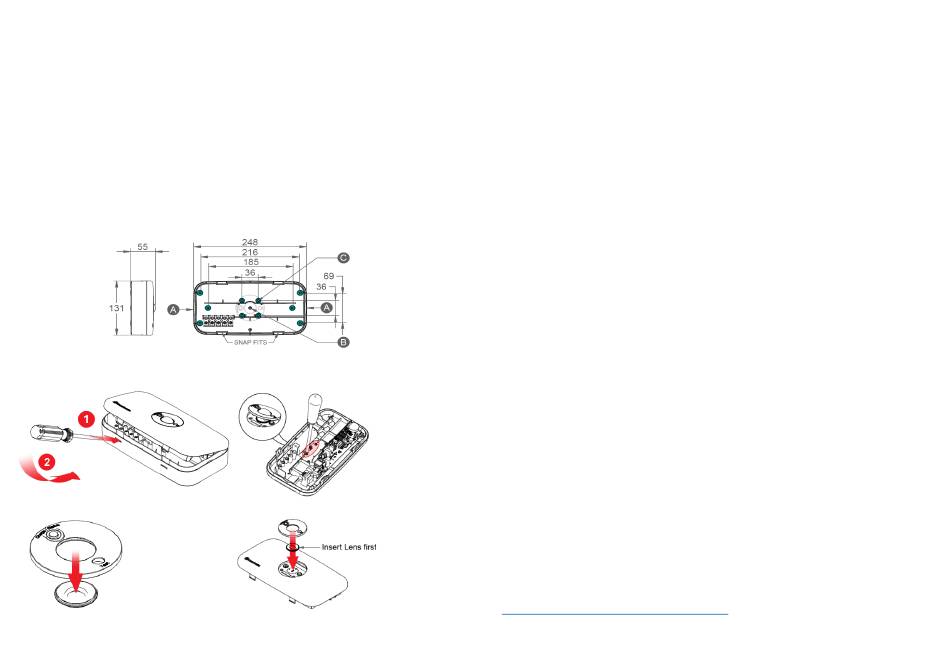

Dimensions:
Lid Removal / Lens Replacement:
STEP 1 – Insert flat screw driver and lever to
remove lid
STEP 3 – Release Lens from the Bezel
STEP 2 – Remove the two coloured screws and
push out Bezel/Lens
STEP 4 – Insert required Lens followed by Bezel
and re-insert coloured screws and Lid
Note: for Corridor Lens ensure the two pins
engage into the PCA
Note:
This luminaire (with reinforced insulation between control/LED terminal and AC supply) contains non-
user replaceable light source and battery - to be replaced (if required, refer installation instructions for
battery replacement) by Clevertronics service personnel/agents or a registered electrician.
Battery Replacement:
1.
Prior to any work, isolate the power to the luminaire that requires battery replacement
2.
Open the fitting by removing the Lid as shown in Lid Removal.
3.
Remove the Battery Connector from the Emergency Driver board.
4.
Remove the battery from the Lid pressing out one end first.
5.
Replace battery, reconnect battery connecter to Emergency Driver board.
6.
Reinstall the Lid, ensure both ends are clipped in.
Testing Procedure:
Once connected to the 240V mains supply, the unit must be allowed to charge the battery for at least 24
hours. Conduct the following tests:
•
The emergency lamp must illuminate for at least 180 min after disconnection from the mains. If the
unit fails to illuminate for the requisite time, remedial action must be taken to repair the situation
and once completed, the unit must pass a subsequent test.
•
Press and hold Test Button or switch Off Mains Supply, check that the emergency lamp is On.
•
Release the Test Button or Switch On Mains Supply, check that the emergency lamp is Off (Non-
maintained operation).
Trouble Shooting:
Below are a list of common problems and their possible causes:
Fault:
The Green LED indicator is not illuminated.
Check:
A.C. is connected and is turned on.
Battery is connected.
Test Switch for damage.
Fault:
Lamp does not illuminate in emergency mode.
Check:
A.C. is connected.
Lamp is correctly inserted.
Battery is connected
Fault:
Lamp illuminates in emergency mode, but only stays on for a short period.
Check:
Battery has been allowed to charge for at least 24 hours.
Battery for damage.
Caution:
On many building sites, power circuits may be cut off in an uncontrolled and repetitive basis during
construction. As a result, any Exit & Emergency Units, on these circuits, will have their batteries
discharged or "cycled". The battery in this fitting has been selected to give excellent long life
performance in a controlled IEC 60598-2-22 testing environment. Excessive battery cycling will reduce
through-life performance and may lead to premature battery failure. Battery warranty claims, as a result
of such abuse, are specifically EXCLUDED from Clevertronics warranty terms.
Warranty:
For Product Warranty information and Terms and Conditions of Sales please refer to our website
https://clevertronics.co.uk/product-warranty-statement/
1942401
V1.1
9 September 2020
