DIGITAL MINILAB FRONTIER 570
PERIODICAL MAINTENANCE AND
INSPECTIONS GUIDE
To keep the FRONTIER 570 operating at peak performance, conduct periodical maintenance
and inspections as indicated in the table below.

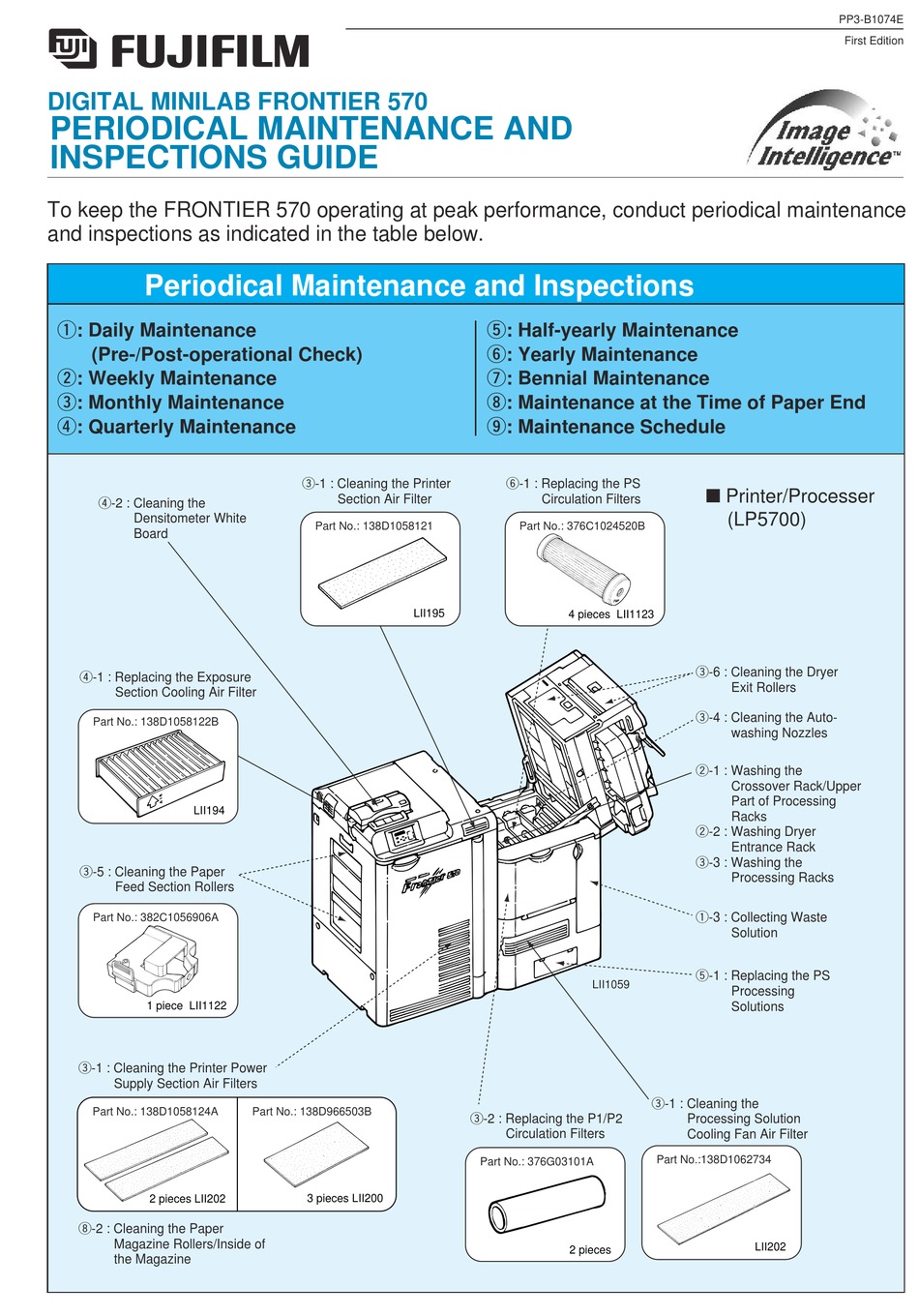

Periodical Maintenance and Inspections
q: Daily Maintenance
(Pre-/Post-operational Check)
w: Weekly Maintenance
e: Monthly Maintenance
r: Quarterly Maintenance
r-2 : Cleaning the
Densitometer White
Board
r-1 : Replacing the Exposure
Section Cooling Air Filter
Part No.: 138D1058122B
LII194
e-5 : Cleaning the Paper
Feed Section Rollers
Part No.: 382C1056906A
1 piece LII1122
e-1 : Cleaning the Printer Power
Supply Section Air Filters
Part No.: 138D1058124A
2 pieces LII202
i-2 : Cleaning the Paper
Magazine Rollers/Inside of
the Magazine
e-1 : Cleaning the Printer
Section Air Filter
Part No.: 138D1058121
LII195
Part No.: 138D966503B
3 pieces LII200
t: Half-yearly Maintenance
y: Yearly Maintenance
u: Bennial Maintenance
i: Maintenance at the Time of Paper End
o: Maintenance Schedule
y-1 : Replacing the PS
Circulation Filters
Part No.: 376C1024520B
4 pieces LII1123
LII1059
e-2 : Replacing the P1/P2
Circulation Filters
Part No.: 376G03101A
2 pieces
Printer/Processer
(LP5700)
e-6 : Cleaning the Dryer
Exit Rollers
e-4 : Cleaning the Auto-
washing Nozzles
w-1 : Washing the
Crossover Rack/Upper
Part of Processing
Racks
w-2 : Washing Dryer
Entrance Rack
e-3 : Washing the
Processing Racks
q-3 : Collecting Waste
Solution
t-1 : Replacing the PS
Processing
Solutions
e-1 : Cleaning the
Processing Solution
Cooling Fan Air Filter
Part No.:138D1062734
LII202
PP3-B1074E
First Edition
