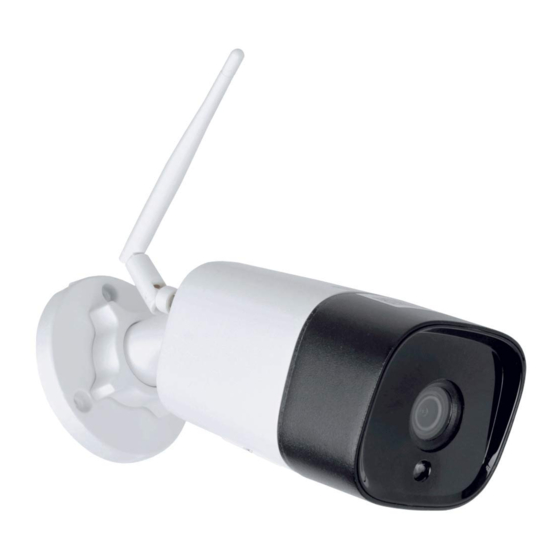

- Page 1 MANUAL WIRELESS HD SECURITY CAMERA ACCESSOIRE HOME ALARM SYSTEM Home is not a place, it’s a feeling AS90CAB AS90CAB Manual EN Version 2...
-
Page 2: Table Of Contents
Inhoud Introduction ........................... - 2 - Package Contents ........................- 2 - Connecting the camera to the smartphone and the network ..........- 3 - Mounting the camera......................- 4 - Explanation of pictograms ..................... - 5 - Motion detection and recording ................... - 5 - Horizontal / vertical rotation .................... -
Page 3: Introduction
1. Introduction Please take the time to read this manual before starting to install the security camera. The camera is suitable for outdoor mounting and has IR-LED illumination with automatic IR-Cut switch. The night vision range is 30 metres. 2. Package Contents •... -
Page 4: Connecting The Camera To The Smartphone And The Network
3. Connecting the camera to the smartphone and the network Connect the supplied adapter (3) to the camera (c) and a power outlet. The camera will send its own network to which your smartphone should be connected. After this, connect the smartphone to your own network again. - Page 5 Note 1 : The location to be monitored by the camera must be within the range of the ELRO HOME+ ALARM unit. Note 2 : If required, the network cable connection can be used for stable connection, see chapter 2.
-
Page 6: Explanation Of Pictograms
5. Explanation of pictograms Take screenshots, these will be saved in a photo folder on your smartphone. Listen, not available for this model Press and hold to speak. 6. Motion detection and recording A micro SD card (1) of max. 128GB can be inserted. All recordings made by motion detection (2) will be saved on this card. -
Page 7: Horizontal / Vertical Rotation
7. Horizontal / vertical rotation These functions (6) allow you to correct the image in the app horizontally and vertically 8. Record playback When you start playing back videos (7), they are retrieved from the SD card, please note that this may take a while. The camera always overwrites the oldest recordings. -
Page 8: Specifications
11. Specifications Camera Image sensor 1/2.9" 1080P CMOS Effective pixels 1920(H)x1080(V) Light sensor (IR-Cut) Auto (ICR) / Kleur / zwart-wit IR distance 30 meter (98 ft) Supported SD Card (excl.) Max. 128 GB Lens Focal length 4 mm Aperture F2.4 Angle of view 114°... -
Page 9: 12. Doc
12. DoC I, ELRO Europe, hereby declare that the radio equipment type AS90CAB is in conformity with Directive 2014/53/EU. The full text of the EU declaration of conformity can be found at the following internet address: www.elro.eu/compliance Frequency: 2.4GHz - 2.4835GHz Maximum transmission power: 19dBm 13.
