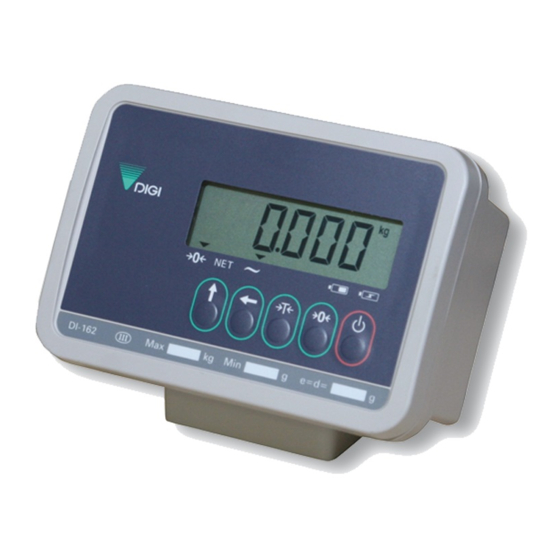

Digi DI-162 Operation Manual
  1. Manuals
  2. Brands
  3. Digi Manuals
  4. Measuring Instruments
  5. DI-162
  6. Operation manual

Digi DI-162 Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

All manuals and user guides at all-guides.com
OPERATION MANUAL
Model
Edition
1st
2nd
3rd
4th
5th
SHANGHAI TERAOKA ELECTRONIC Co., Ltd.
3rd Floor of 2nd Building, Jia Yuan Business Center,
51# Long Wu Road, Shanghai China 200232.
Tel: +86-21-64085151 Fax: +86-21-64083468 E-mail:
DI-162
:
Month
Year
November
2005
March
2006
May
2006
June
2006
Dec.
2007
--- Technical Support Dept.
steservice@digi-scale.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DI-162 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digi DI-162

Summary of Contents for Digi DI-162

  • Page 1 All manuals and user guides at all-guides.com OPERATION MANUAL Model DI-162 Edition Month Year November 2005 March 2006 2006 June 2006 Dec. 2007 SHANGHAI TERAOKA ELECTRONIC Co., Ltd. --- Technical Support Dept. 3rd Floor of 2nd Building, Jia Yuan Business Center, 51# Long Wu Road, Shanghai China 200232.

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com DI-600 Operation Manual CONTENTS 1. General Specification 1.1. General Layout ------------------------------------------------------------------------------------------- 1.2. Features ----------------------------------------------------------------------------------------------------- 1.3. Operating Conditions ------------------------------------------------------------------------------------- 1.4. Charging Conditions -------------------------------------------------------------------------------------- 1.5. Analog Specification -------------------------------------------------------------------------------------- 1.6. Display and Indicators ---------------------------------------------------------------------------------- 1.7. Dimensions ------------------------------------------------------------------------------------------------ 1.8.

  • Page 3: General Specification

    All manuals and user guides at all-guides.com 1. General Specification 1.1 General Layout DI-162...
  • Page 4 All manuals and user guides at all-guides.com DI-162SS...
  • Page 5 All manuals and user guides at all-guides.com DI-162C...
  • Page 6 All manuals and user guides at all-guides.com DS-162 HD...
  • Page 7 All manuals and user guides at all-guides.com DI-162 P...

  • Page 8: Features

    All manuals and user guides at all-guides.com 1.2 Features * Low cost digital indicator. * Quick response to weight changes. * Resolution : Display Resolution: variable : Internal Resolution: 1/300,000. *Low power consumption. * Auto Power Off * Calibration by software. * 6 digits with 8 segments LCD Operator displays.
  • Page 9 All manuals and user guides at all-guides.com DI-162 P: * Low cost digital indicator. * Quick response to weight changes. * Resolution : Display Resolution: variable : Internal Resolution : 1/300,000. * Calibration by software. * 6 digits with 8 segments large size LCD Operator displays with backlight.
  • Page 10 All manuals and user guides at all-guides.com DS-162 HD * Quick response to weight changes. * Low power consumption: Rechargeable Battery backup for 30 hours (Backlight Off) 5 hours (Backlight On)of continuous usage . * Intelligent power control A. When AC power is available, scale will use AC power only whatever rechargeable battery is installed or not.
  • Page 11 All manuals and user guides at all-guides.com * 5 operational keys: UP; LEFT; TARE; ZERO; ON/OFF; * RS-232C interface for data communication . * Capacity: 60kg/(10~20)g, 150kg/(20~50)g * Platter size: 429mmx429mm * Waterproof rating: IPX5 *,Net weight: 6.4 kg...

  • Page 12: Operating Conditions

    All manuals and user guides at all-guides.com 1.3 Operating Conditions * Power Source 240/230/220V, 117/100V(+10%,-15%). : Rechargeable battery (6V 1.2Ah). * Operating Temperature : -10 /14 ~ +40 /+104 ℃ ℉ ℃ ℉ (OIML). * Operating Humidity : 15 ~ 85% RH. * Power Consumption : 18W when using AC power.

  • Page 13: Display And Indicators

    All manuals and user guides at all-guides.com 1.6 Display and Indicators DI-162 Weight Display : 6 digits...
  • Page 14 All manuals and user guides at all-guides.com DI-162SS * Weight Display : 6 digits e=d= DI-162 SS...
  • Page 15 All manuals and user guides at all-guides.com DI-162C Unit Price : 5 digits (Display when Checkout-Dialog 02/04/06 protocol) *Total Price : 6 digits (Display when Checkout-Dialog 02/04/06 protocol) * Tare : 4 digits (Display when Checkout-Dialog 02/04/06 protocol) * Weight Display: 6 digits...
  • Page 16 All manuals and user guides at all-guides.com Indicators sign will light up when current zero -------▼ point is within 1/4d of true zero and true zero. ------- ▼sign will light up when tare weight is set. -------▼sign will light up when weight/scale is in stable condition.

  • Page 17: Dimensions

    All manuals and user guides at all-guides.com and high than 1d. 1.7 Dimensions DI-162: 200mm/7.9in (W) × 164mm/6.5in (H) ×150mm/5.9in (D) DI-162SS: 200mm/7.9in (W) × 164mm/6.5in (H) ×150mm/5.9in (D) DI-162C: 130mm (W) × 110mm (H) ×35mm (D) 1.8 External Connectors * AC plug.
  • Page 18 All manuals and user guides at all-guides.com DS-162HD * Weight Display : 6 digits DS-162HD Max 60/150 kg Min 400 g e=d= 20/50 g Indicators -------▼sign will light up when current zero point is within 1/4d of true zero and true zero.
  • Page 19 All manuals and user guides at all-guides.com External Dimensions External Connectors * AC plug. * RS-232C interface.
  • Page 20 All manuals and user guides at all-guides.com DS-162 P Display and Indicators Display Specifications * Weight Display : 6 digits Indicators -------▼sign will light up when current zero point is within 1/4d of true zero and true zero. ------- ▼sign will light up when tare weight is set. -------▼sign will light up when weight/scale is in stable condition.
  • Page 21 All manuals and user guides at all-guides.com -------sign on when the display unit of weight is kg. -------sign on when the display unit of weight is lb. -------sign on when weight is high than setpoint2. -------sign on when weight is between setpoint1 and setpoint2 ------- sign on when weight is below setpoint1 and high than 1d.

  • Page 22: Main Operation

    All manuals and user guides at all-guides.com 2. Main Operation [ON/OFF] ------To turn on or off the display. [REZERO] ------To re-zero the scale. [TARE] -------To set tare weight. -------To set digital tare weight value, /To shift the digital which to be edit. -------To change weight unit, /To change numeric data for set-up mode.

  • Page 23: One-Touch Tare Weight Reduction

    All manuals and user guides at all-guides.com 2.2 One-touch Tare Weight Reduction ZERO OPERATION Key-in WEIGHT STABLE 0.0 0 0 Weighing mode. Put tare (e.g. 30 g) on platter 0.0 3 0 Subtract the tare weight. [TARE] 0.0 0 0 Remove the weight - 0.0 3 0 [TARE]...

  • Page 24: Change Weight Unit

    All manuals and user guides at all-guides.com If it is out of the range, the weight will remain in the display, the buzzer will beep alarm. 2.4 Change Weight Unit OPERATION Key-in WEIGHT ZERO STABLE 0.0 0 0 Weighing mode. Put tare (e.g.

  • Page 25: Internal Count Display

    All manuals and user guides at all-guides.com 2.6 Internal Count Display Key-in OPERATION WEIGHT ZERO NET STABLE 0.0 0 0 Weighing mode. [REZERO] 8 8 8 8 8 8 Press [REZERO] [REZERO]+ Press [ ][T] by holding [REZERO] ][T] 1,2,0,2,3,4 To display A / D row data Press[ ] key.
  • Page 26 All manuals and user guides at all-guides.com 2):As introduced at the previous section, there are 2 kinds of key-operation when entering SPEC setting mode. a . [REZERO] + [T] [T] [T] ------- for SPEC No.0-No.19 b . [REZERO] + [ ] -------for SPEC No.20-No.39 When SPEC setting operation , the following display will appear.

  • Page 27: Setpoint Set

    All manuals and user guides at all-guides.com will move to next digit. ------------ To change SPEC data to either “0” or “1”. 2.8 Set point Set OPERATION Key-in WEIGHT ZERO STABLE 0.0 0 0 0 Weighing mode. [REZERO] 8 8 8 8 8 8 Press [REZERO] Press [ ][ ][ ] by holding [REZERO] [REZERO]+...

  • Page 28: Initial Setup

    All manuals and user guides at all-guides.com 3. Initial Setup 3.1 Prepare Connect DI-162 with the weighing platform Plug in the power supply 3.2 Setup Set the relative specification Calibration Turn on the SPAN SW first (JP1 on Main Board.)
  • Page 29 All manuals and user guides at all-guides.com 3.2.1. Weight Calibration (SPAN Adjustment) OPERATION Key-in WEIGHT ZERO NET STABLE 0.0 0 0 Weighing mode. [REZERO] 8 8 8 8 8 8 Press [REZERO] Press [ ] [T] [T] by holding [REZERO] [REZERO]+ ][T][T] “G0”...
  • Page 30 All manuals and user guides at all-guides.com Press [REZERO] to insure the zero point. [REZERO] - - - - - - CALSP /2 0.0 0 0 Put weight (e.g. 10kg) on platter. 1 0.0 0 0 Enter the weight which is used to calibrate by taking the same steps as above.

  • Page 31: G Caliberation

    All manuals and user guides at all-guides.com 3.2.2. G Calibration (Gravity Adjustment) Turn on the SPAN SW. (JP1 on Main Board.) OPERATION Key-in WEIGHT ZERO NET STABLE 9.0 0 0 Weighing mode. [REZERO] 8 8 8 8 8 8 Press [REZERO] Press [ ][T][ ] by holding [REZERO] [REZERO]+ [ ][T][ ]...

  • Page 32: Specification List

    All manuals and user guides at all-guides.com Specification List DI-162 V1.09 07-2-1 Operational Specification List For The Customer - (1 4 1) SPEC NO. BIT 3 BIT 2 BIT 1 BIT 0 Auto Power-off function (for no key operation & weigh operation)
  • Page 33 All manuals and user guides at all-guides.com Weight unit after net PC send “w” in PC send “t” in RS232C High speed weight and tare weight Standard command Standard command output when baud in the text of RS-232C mode mode rates >=9600 0 - Allow 0 - Allow...
  • Page 34 All manuals and user guides at all-guides.com Digital tare Priority Tare Zero tracking when Weight reset when tare Operation tare 0 - Allow 0 – One Touch Tare 0 - Allow 0 - Allow 1 – Inhibit Priority 1 – Inhibit 1 –...

  • Page 35: Error Message

    All manuals and user guides at all-guides.com 5. Error Message Error Message Display Please following the solution when you see the error message ERROR Probable Cause Solution 8 8 8 8 8 8 (Lock-up) Zero-point is out of range. Need to re-calibrate the scale. When displayed weight...
