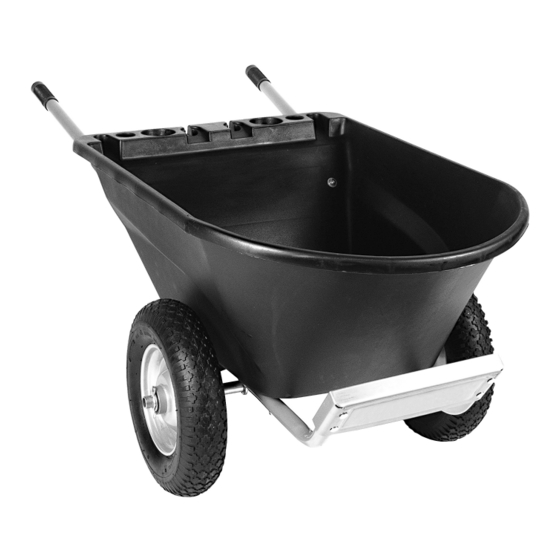

Equilibrium Wheelbarrow
Please read carefully before use and retain for future reference.
NOTE: 2 person assembly recommended
1
End support bars
2
Crossbar
3
Tool holder
4
Rear bumper
5
Front support bars
6
Handlebars
7
Front cover
8
Axle
9
Wheels
10
Handle grips
11
Barrow
PART
QTY
2
1
1
2
2
2
1
1
2
2
1
9019
PART
12
Cotter pins
13
Locking nuts
14
Small washers
15
Medium washers
16
Large washers
17
U bolts
18
Short carriage bolts
19
Medium carriage bolts
20
Long carriage bolts
21
Round head bolts
Instructions
QTY
4
18
18
8
4
2
4
8
2
4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Coopers of Stortford 9019
Summary of Contents for Coopers of Stortford 9019
- Page 1 Equilibrium Wheelbarrow Instructions 9019 Please read carefully before use and retain for future reference. NOTE: 2 person assembly recommended PART PART End support bars Cotter pins Crossbar Locking nuts Tool holder Small washers Rear bumper Medium washers Front support bars...
- Page 2 ASSEMBLY: • Attach the rear bumpers (4) to the end support bars (1) and in turn fix to the tool holder (3) using round head bolts (21). • Attach the handlebars (6) and front support bars (5) to the assembled section using long carriage bolts (20), 2x small washers (14) and 2x locking nuts (13).
