Accessory Kit 2 in 1

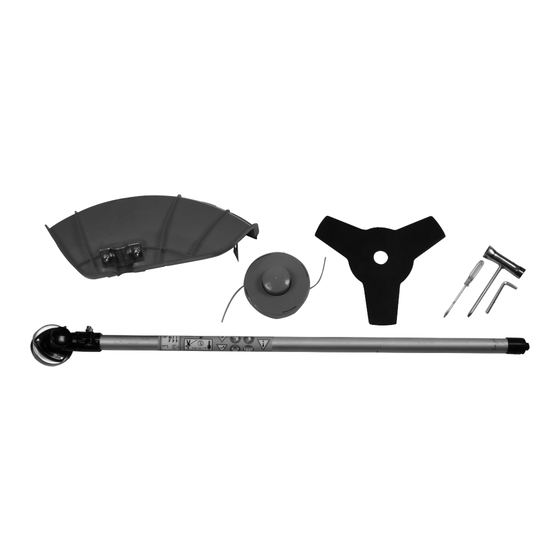

Parts
Debris guard
Drive shaft head
Disconnect the spark plug from the engine before you proceed with assembly.
1. Remove your chainsaw
or hedge trimmer
attachment from the
drive shaft at the joint
connection directly
below the handle.
2. Remove the black
rubber cover from your
new drive shaft.
3. Connect your new drive
shaft in the same joint
connection, making sure
the gears interlink
correctly (you may need
to twist the drive shaft
a couple of times for
drive shaft to lock into
place), then tighten the
knob bolt on the drive
shaft securely.
Please read this instruction manual thoroughly before starting and ensure
you are familiar with the operation.
ASSEMBLING TO YOUR 2-IN-1 EXTENDABLE
REACH PETROL CHAINSAW AND HEDGE TRIMMER
9489
Strimmer
Brush cutter
Drive shaft
WARNING
4. Position the debris
guard directly behind
the drive shaft head and
secure the two bolts on
the debris guard bracket
using the Allen key
provided.
5. Align the holes in the
drive shaft and insert
the 5mm Allen key
through both holes.
Instructions
Spark plug socket
Screwdriver
Rubber cover
Allen key
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Coopers of Stortford 9489
Summary of Contents for Coopers of Stortford 9489

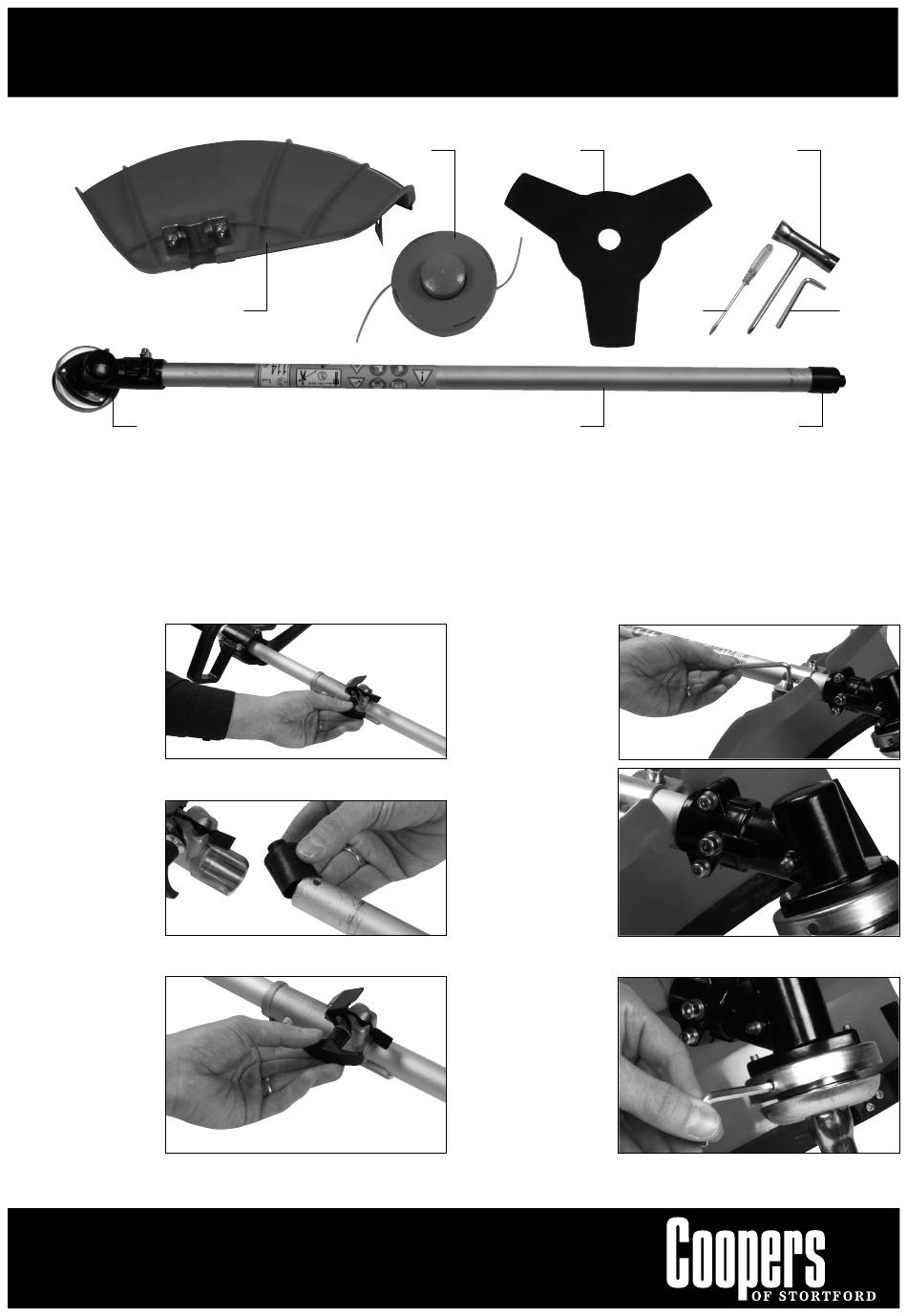

- Page 1 Accessory Kit 2 in 1 Instructions 9489 Parts Strimmer Brush cutter Spark plug socket Debris guard Screwdriver Allen key Drive shaft head Drive shaft Rubber cover ASSEMBLING TO YOUR 2-IN-1 EXTENDABLE REACH PETROL CHAINSAW AND HEDGE TRIMMER WARNING Disconnect the spark plug from the engine before you proceed with assembly.
- Page 2 6. Holding the spark plug ATTACHING socket with one hand THE STRIMMER and with your other 1. Align the holes in the hand hold the Allen key drive shaft head and unscrew the locking nut in an anti-clockwise insert the 5mm Allen key through both holes.
- Page 3 TRIMMING GRASS AND WEEDS WITH THE STRIMMER ATTACHMENT Change the blade if it has been damaged. Hold the unit so the head is off the ground and is tilted about 20º toward the Turn off the engine and make sure the blade has completely stopped before sweep direction.
- Page 4 MAINTENANCE REPLACING THE STRIMMER LINE Hook each end of the line in both slots on the edge of the spool, and then pull WARNING the ends through the eyelets in the housing. Make sure that the spring For replacement line use - remove the spark plug from the engine and the washers are in place.
