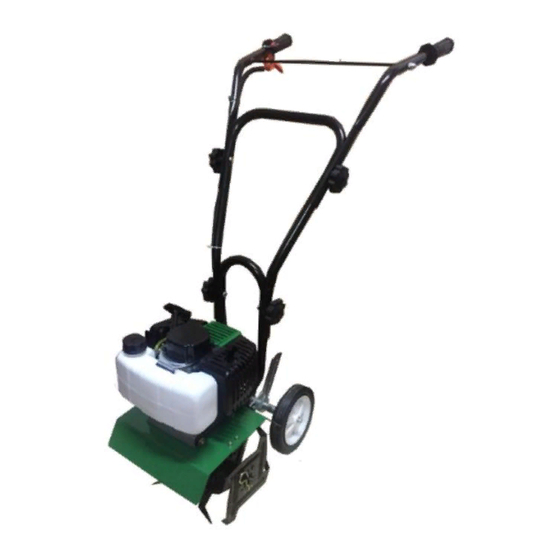

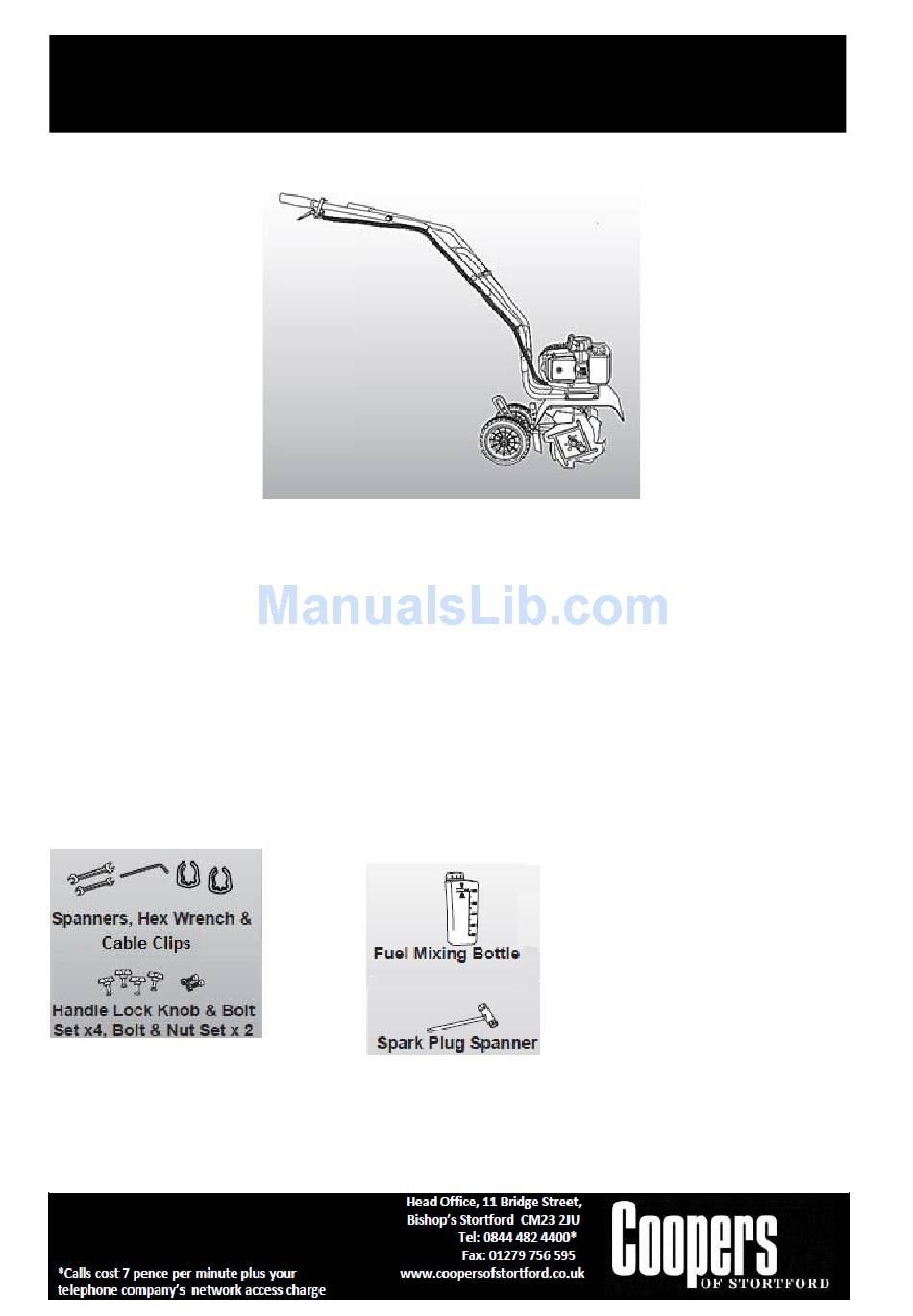

Petrol Tiller Rotavator
Please read and retain these instructions for future reference
Specifications
Engine:
Power:
Fuel & oil mix:
Fuel tank capacity:
Starter type:
No load speed
Idle:
Max.:
Tilling width:
Tilling depth:
Net weight:
Noise level:
Parts:
Please read this instruction manual thoroughly before starting and ensure you are familiar with the
operation of your new Petrol Tiller Rotavator.
10598
51,7cc 2-stroke, air-cooled
1.5kw (2HP)
40:1
1000ml
Recoil
3000 ±200 rpm
8300 ± 300 rpm
250-300mm
60-100mm
16kgs
94dB approx.
Accessories:
Instructions for Use
v003:8/11/17
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Coopers of Stortford 10598
Summary of Contents for Coopers of Stortford 10598
- Page 1 Petrol Tiller Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v003:8/11/17 Specifications Engine: 51,7cc 2-stroke, air-cooled Power: 1.5kw (2HP) Fuel & oil mix: 40:1 Fuel tank capacity: 1000ml Starter type: Recoil No load speed Idle: 3000 ±200 rpm...
- Page 2 Petrol Tiller Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v003:8/11/17 Parts 1. Throttle lock-off 2. Throttle lever 3. On/Off switch 4. Cross bar 5. Right handle 6. Left handle 7. Mid-handle frame 8. Handle lock knobs 9.
- Page 3 Petrol Tiller Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v003:8/11/17 1. Place the mid-handle frame onto the lower handle frame so that it bends in the direction of the user. 2. Ensure that the holes in the bars of both handle frames are in alignment.
- Page 4 Petrol Tiller Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v003:8/11/17 6. Use the cable clips (supplied) to fasten the cable container to the mid-handle frame and the right handle. Attaching the wheel assembly 1.
- Page 5 Petrol Tiller Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v003:8/11/17 Adjusting the tilling depth The drag stake is used to regulate the depth of the turning tiller tines. It also serves as a brake, slowing the tiller’s forward motion, enabling the blades to penetrate the soil.
- Page 6 Petrol Tiller Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v003:8/11/17 Adjusting the wheel height 1. The transport wheels can be adjusted into one of three grooves in the connection plate. When tilling, adjust the wheels so that they are set within the top groove.
- Page 7 Petrol Tiller Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v003:8/11/17 5. Shift the wheel assembly to the appropriate groove, depending on whether you are transporting or operating the tiller. 6. Release the axle collar so that it engages in the newly selected groove.
- Page 8 Petrol Tiller Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v003:8/11/17 2. Add 2-stroke oil up to oil line. Shake vigorously for a thorough mix. 3. Fill the fuel tank to about 80% of its capacity with the fuel mix Fuel tank capacity: 1000ml 4.
- Page 9 Petrol Tiller Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v003:8/11/17 Starting and stopping Starting Note: Do not squeeze the throttle before starting. 1. Press the ignition switch on the handle to the ON (I) position.
- Page 10 Petrol Tiller Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v003:8/11/17 6. Tilt the tiller backwards, so that the blades are clear of the ground. 7. With your thumb, pull back the throttle lock-off and then squeeze the throttle lever.
- Page 11 Petrol Tiller Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v003:8/11/17 3. As the blades begin to make contact with the ground, hold the tiller in position until the blades dig into the soil.
- Page 12 Petrol Tiller Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v003:8/11/17 Maintenance General maintenance • Keep the ventilation vents of the tool clean at all times. If possible, prevent foreign matter from entering the vents.
- Page 13 Petrol Tiller Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v003:8/11/17 WARNING! BEFORE CLEANING YOUR PETROL TILLER OR CARRYING OUT ANY MAINTENANCE PROCEDURE, MAKE SURE THAT THE ENGINE IS OFF AND IS COOL. DISCONNECT THE SPARK PLUG TO PREVENT ACCIDENTAL STARTING.
- Page 14 Petrol Tiller Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v003:8/11/17 Spare parts...
- Page 15 Petrol Tiller Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v003:8/11/17 Carriage screw Spec. Lock nut Left gearbox Connecting plate one Right gearbox Spacing board Screw Screw Screw Screw Wheel bolt Screw Axle sleeve two...
-
Page 16: Risk Of Explosion Or Fire
Petrol Tiller Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v003:8/11/17 Safety instructions RISK OF EXPLOSION OR FIRE What can happen: • Spilled petrol and its vapours can become ignited from cigarette sparks, electrical arcing, exhaust gases and hot engine components such as the muffler. - Page 17 Petrol Tiller Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v003:8/11/17 2) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a petrol tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication.
- Page 18 Petrol Tiller Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v003:8/11/17 4) Service a) Have your petrol tool serviced by a qualified repair technician using only identical replacement parts. This will ensure that the safety of the petrol tool is maintained.
- Page 19 Petrol Tiller Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v003:8/11/17 • Never remove the fuel tank cap or add fuel to a running or hot engine. • Never store fuel or petrol tiller with fuel in the tank inside a building where fumes may reach an open flame.
