Operating Instructions
for
Linear Feeders
SLK 05
SLK 1
SLK - N 6
SLK - N 6G
SLK 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLK 05 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RNA SLK 05

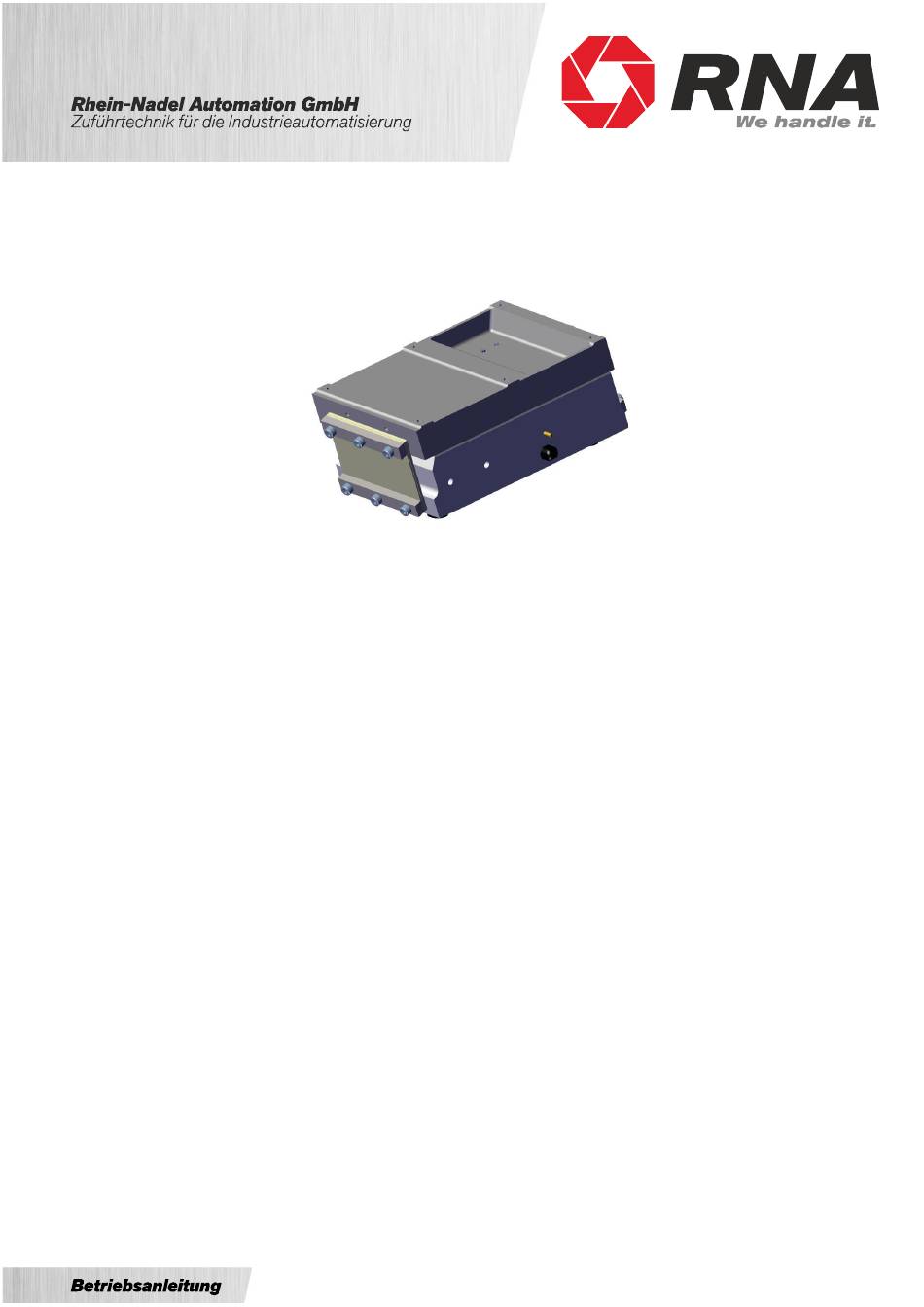

  • Page 1 Operating Instructions Linear Feeders SLK 05 SLK 1 SLK - N 6 SLK - N 6G SLK 12...
  • Page 2: Table Of Contents

    Table of Contents Technical data ........................4 Safety directives ........................6 2.1. Applicable directives and standards ..................7 Design and functional description of linear feeder ..............7 Shipment and installation ....................... 8 Commissioning ........................9 5.1. Feeder speed decreases? ....................11 5.2.
  • Page 3 Declaration of Incorporation according to Machinery Directive 2006/42/EC Company Rhein-Nadel Automation GmbH Reichsweg 19-23 52068 Aachen Germany herewith declare under our sole responsibility that with regard to the following product: Linear feeder Machine designation: (function) SL(…) Type designation: GL(…) all relevant essential safety and health requirements of Directive 2006/42/EC have been fulfilled up to the battery limits.
  • Page 4: Technical Data

    Notice All linear feeders listed in this table shall be operated only in conjunction with an RNA control unit and with a mains voltage of 230 V / 50 Hz. For special voltages and frequencies please refer to the separate data sheet.
  • Page 5 Pin assignment M20 gland grey-2 100 Hz vibration frequency black-1 50 Hz vibration frequency Metal EMC gland for frequency-controlled systems Mode of operation Vibration frequency Vibratory With jumper: 100 Hz feeder load Without jumper: 50 Hz Coding in connector With jumper: The jumper must be inserted between connections 3 + 4. Rhein-Nadel Automation GmbH VT-BA-SLK-EN_2020.docx / 06.09.2018 SD...
  • Page 6: Safety Directives

    2. Safety directives We have taken great care in design and manufacture of our linear feeder in order to ensure smooth and safe operation. You, too, can make an important contribution towards safety at work. We therefore ask you to read the brief operating instructions completely prior to commissioning the system.
  • Page 7: Applicable Directives And Standards

    Attention The linear feeder must be installed, put into operation and maintained by professional personnel only. Observe the legally binding provisions for the qualifications of qualified electrical workers and instructed workers as defined by standards IEC 364 and DIN VDE 0105, part 1. Caution: Electromagnetic field Magnetic fields may affect a cardiac pacemaker.
  • Page 8: Shipment And Installation

    All control units have two essential operating elements: • The power switch is used to energize and de-energize the linear feeder. • A rotary knob (or buttons) can be used to set the feed rate of the system. Frequency controller: Tuning of the linear feeders can also be done by means of frequency controllers. For detailed description of the tuning procedure refer to the frequency controller operating instructions.
  • Page 9: Commissioning

    Linear feeder type Length Width Shock absorber thread in mm in mm SLK 05 SLK 1 SLK-N 6 SLK-N 6 G SLK 12 Table: Drilling data Make sure that the linear feeder cannot touch other devices during operation.
  • Page 10 M 10 M 10 The size of the counterweight must be determined through trials. Linear feeders of types SLK 05 and SLK - N 6 G come with a factory-mounted counterweight. To achieve a uniform feeding speed adjust the feed rail as follows: •...
  • Page 11: Feeder Speed Decreases

    Feed rate Resonance frequency of the system Resonance curve (not true to scale) Spring force (number of springs) Notice The resonance frequency of the linear feeder must not be equal to the mains frequency. If the feeder speed decreases after you loosen the spring fastening screw, please proceed as described in section 5.1.
  • Page 12: Feed Rail Design Rules

    6. Feed rail design rules For feed rail projections in longitudinal direction of the vibratory unit observe a ratio of 1/3 on the entry end to 2/3 at the exit end. The design of the rails must provide maximum stability. Upright profiles of high section modulus are to be preferred (U profiles, square tubes etc.).
  • Page 13: What If

    (see rating plate and Attention 'Technical Data' (Section 1)) If you operate the linear feeders of type SLK 05 and SLK 1 without having inserted the jumper in the 5-pin connector, there is a risk of damage to...
  • Page 14 RNA Group Further manufacturing sites Headquarters of the RNA Group Manufacturing and Sales Rhein-Nadel Automation GmbH Manufacturing Reichsweg 19-23 Lüdenscheid branch D-52068 Aachen Rhein-Nadel Automation GmbH Nottebohmstraße 57 Phone: +49 (0) 241-5109-0 D-58511 Lüdenscheid Fax: +49 (0) 241-5109-219 Phone: +49 (0) 2351 41744 E-mail: vertrieb@RNA.de...
