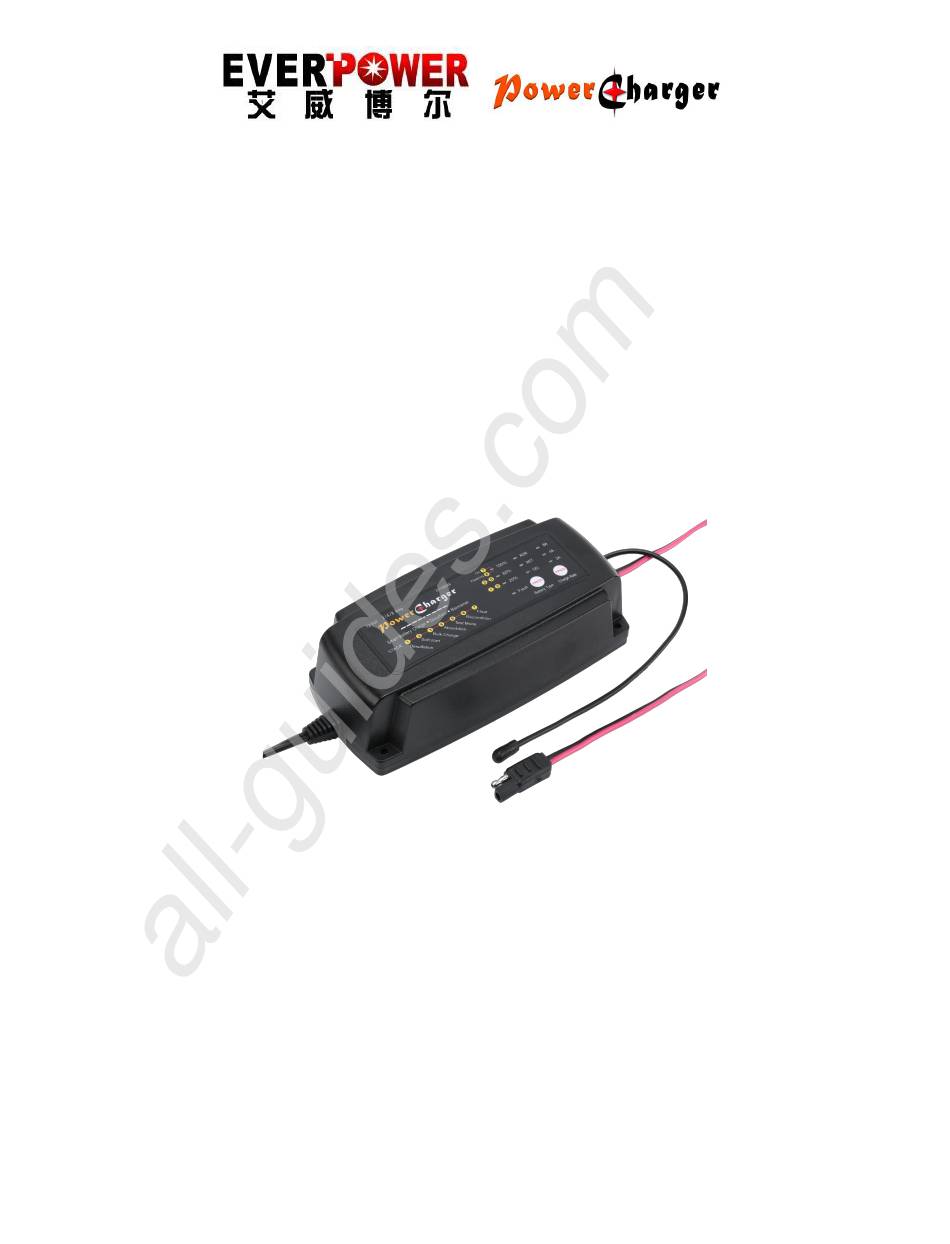

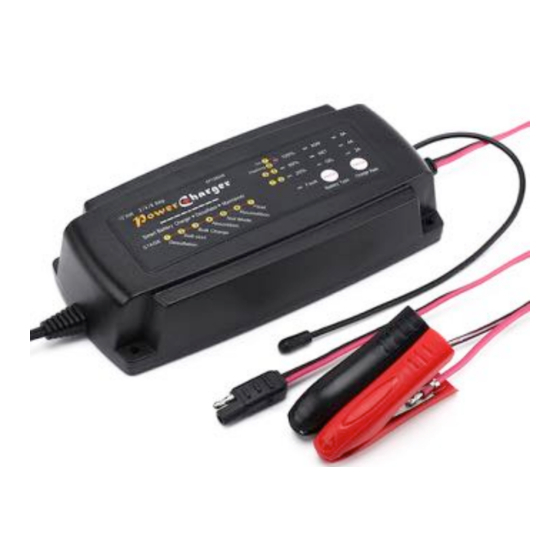

- Page 1 All manuals and user guides at all-guides.com EP12M248 7 Stage Automatic Smart Battery Charger, esulphuration& Maintainer 12V, 2 / 4 / 8A FOR AGM, GEL AND WET BATTERIES USER MANUAL THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS...
- Page 2 WARNING： 。The EP12M248 charger is designed to charge 12V lead-acid batteries from 6Ah to 160Ah and maintain batteries up to 200Ah. . 。Check batter y manufacturer s p ecifications before usin g this char g er.
- Page 3 All manuals and user guides at all-guides.com 。 Multi Charge Stages: Battery desulphation charging Soft start charging Bulk charging Absorption charging Battery analysis Recondition charging Float & maintenance charging Temperature sensor Temperature & Safety Protection: 。 INTERNAL OVERHEAT PROTECTION: The charger is equipped with built-in overheat and overload electronic circuit protection 。...
- Page 4 13.5V WET Batteries For Charging AGM , Sealed , 1 4.7V 13.6V VRLA , Calcium batteries TECHNICAL SPECIFICATIONS: Model EP12M248 Type Smart & Automatic In p ut 115Vac 50 /60Hz ( ULVersion) In p ut ( CE 2 / 4 / 8A <...
- Page 5 All manuals and user guides at all-guides.com ELECTRICAL PARTS: 。 AC power cord: 6 feet SPT-2 with UL plug 。 Output lead: 6 feet SPT-1 2X18AWG with insulated battery clamps. ENVIRONMENTAL CHARACTERISTICS: 。 Operating temperature range: 32 to 104° F 。...
- Page 6 All manuals and user guides at all-guides.com STEP 4 – Disconnect Charger from Battery 。 If the battery is out of the vehicle: 。Switch OFF and remove the AC power socket from the outlet. 。Remove the black lead and then the red lead. 。Check electrolyte levels if possible.
- Page 7 All manuals and user guides at all-guides.com 。FULL LED: Flashing. 。 Recondition charging 。Charger will go into this stage if battery fails Test Mode due to its condition, age or being under charged. 。This stage can recover batteries from deeply discharged state increasing performance and battery life.
- Page 8 All manuals and user guides at all-guides.com Status Description Green GELBatteryCharging Green Flooded, WET battery Charging Green Sealed, AGM, VRLA & Calcium Battery Charging. Green 20% capacity charging. Green 80% capacity charging. 100% Flash Test Modeor recondition charging. 100% Fully charged, maintaining the battery. Fault Output short –circuit or reverse polarity.
