Page 1: User Manual

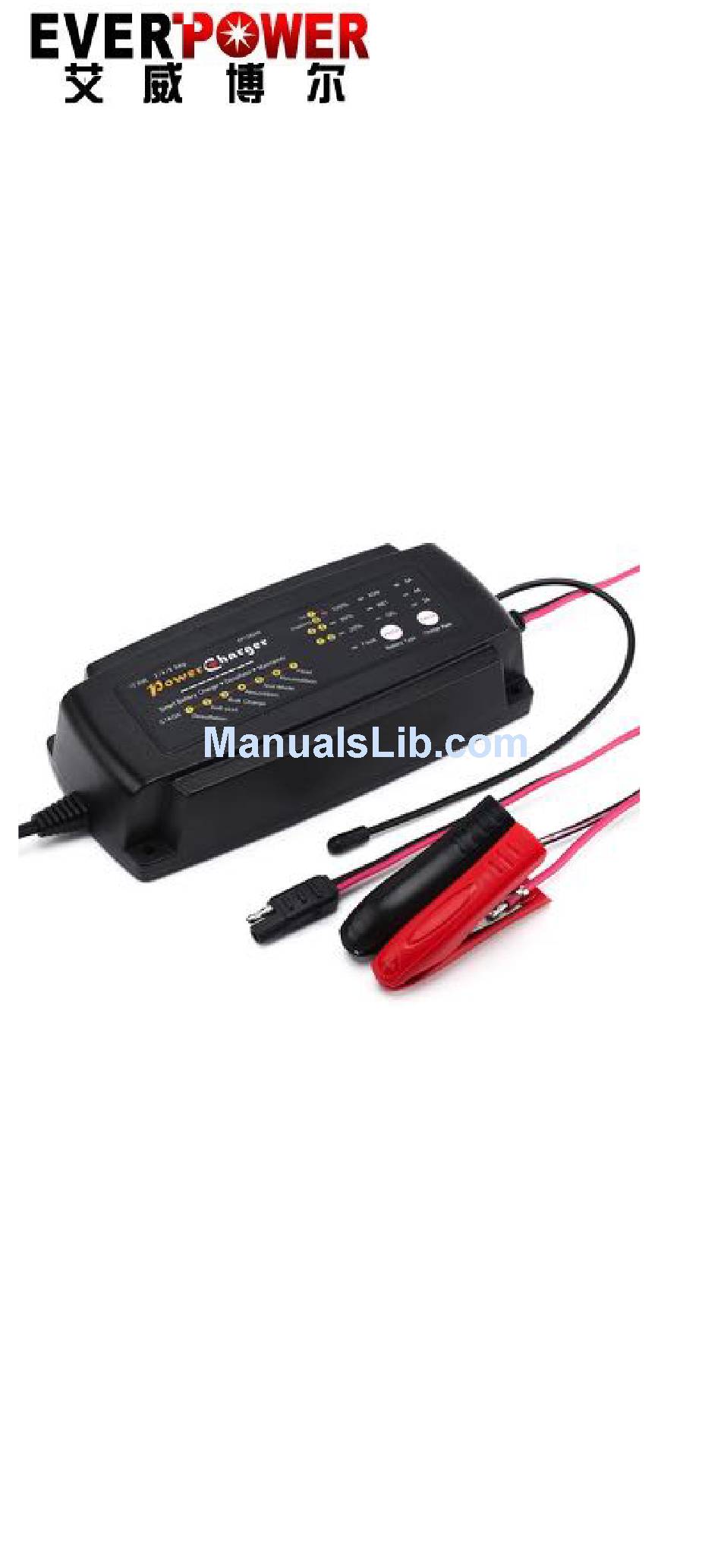

7 Stage Automatic Smart Battery Charger esulphuration& Maintainer (FOR CHARGING 12V / 24V AGM, GEL,SLA AND WET BATTERIES) USER MANUAL THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS http://www.oceanpowercharger.com... -
Page 2: Important Safety Instructions
Please read this manual and follow the instructions carefully before using the charger. WARNING The EP12M248 charger is designed to charge 12V lead-acid batteries from 6Ah to 160Ah and maintain batteries up to 200Ah. The EP24M124 charger is designed to charge 24V lead-acid batteries from 4Ah to 80Ah and maintain batteries up to 100Ah. -
Page 3: Recommended Settings
Temperature sensor Temperature & Safety Protection: INTERNAL OVERHEAT PROTECTION: The charger is equipped with built-in overheat and overload electronic circuit protection TIMER PROTECTION: Charger provides the maximum charging time for each charging stage. In the event it is wired to recharge a larger than recommended battery, charger will stop charging after maximum stage recommended time and the RED LED will be FLASH slowly. -
Page 4: Technical Specifications
13.4V 14.4V For Charging FLOODED or 14.7V 14.4V 13.5V WET Batteries For Charging AGM, Sealed, 14.7V 13.6V VRLA, Calcium batteries TECHNICAL SPECIFICATIONS: EP12M248 EP24M124 Model Type Smart & Smart & Automatic Automatic Input (UL Version) 115Vac 115Vac 50/60Hz 50/60Hz Input (CE Version) -
Page 5: Eco Mode
ECO MODE: If AC power is connected, and the battery is not connected, the charger will automatically go into ECO mode. Input power draw in ECO mode is less than 1.5W (0.04kWh per day). Power consumption in maintenance mode is 0.05kWh per day CHARGING INSTRUCTIONS: STEP 1 - Pre Charge: Battery &... -
Page 6: The Charging Process
Check electrolyte levels if possible. (As they may need topping up with distilled water after charging) THE CHARGING PROCESS: The charging stages and performance are as follows: Battery initial condition check After all connections are made, the charger will automatically diagnose battery condition. - Page 7 Full LED: ON. The float mode allows the charger to effectively be left connected to your batteries; it works at a safe level and ready for use. Maintenance mode Full LED: ON. The program engages a special charging waveform and monitors the battery voltage variety, if the battery voltage sinks, the special pulses will keep the battery in optimal state, if the battery voltage drops even lower, the battery charger will switch into bulk...
-
Page 8: Troubleshooting
TROUBLESHOOTING Problem Error Possible Suggested Solution Code Causes -No AC - Check AC connections Charger Indicator Power and make sure Power Does Not lights on Point is switched ON Work? -Output is - Check DC connection Fault short between charger and RED LED circuited battery and make sure...
