Lezyne MICRO DRIVE 500 HV User Manual

73725-B1

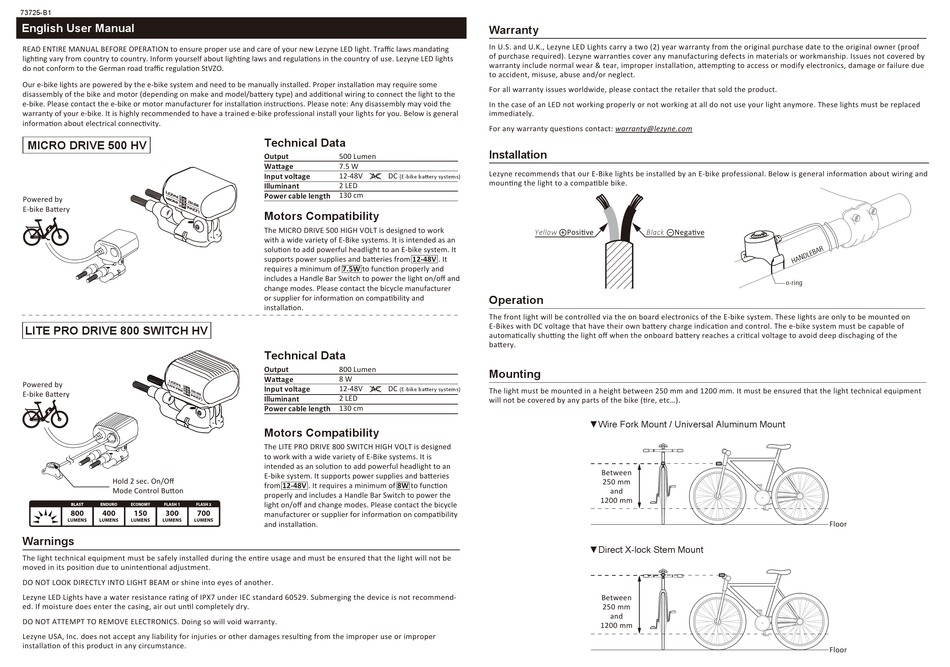

English User Manual
READ ENTIRE MANUAL BEFORE OPERATION to ensure proper use and care of your new Lezyne LED light. Traffic laws manda�ng
ligh�ng vary from country to country. Inform yourself about ligh�ng laws and regula�ons in the country of use. Lezyne LED lights
do not conform to the German road traffic regula�on StVZO.
Our e-bike lights are powered by the e-bike system and need to be manually installed. Proper installa�on may require some
disassembly of the bike and motor (depending on make and model/ba�ery type) and addi�onal wiring to connect the light to the
e-bike. Please contact the e-bike or motor manufacturer for installa�on instruc�ons. Please note: Any disassembly may void the
warranty of your e-bike. It is highly recommended to have a trained e-bike professional install your lights for you. Below is general
informa�on about electrical connec�vity.
MICRO DRIVE 500 HV
Powered by
E-bike Ba�ery

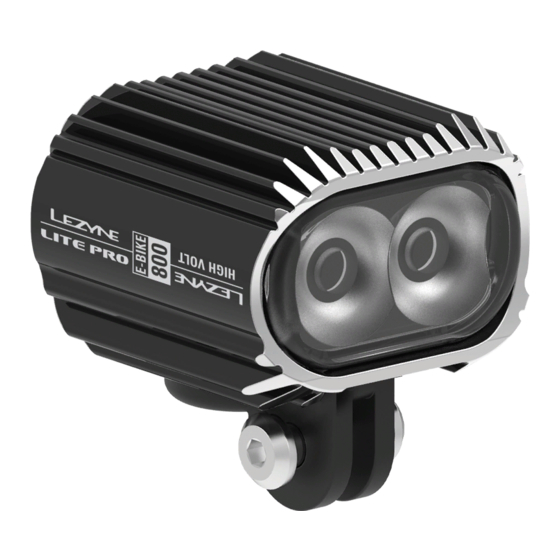

LITE PRO DRIVE 800 SWITCH HV
Powered by
E-bike Ba�ery
Hold 2 sec. On/Off
Mode Control Bu�on
BLAST ENDURO FLASH 1
ECONOMY FLASH 2
800 400 150 300 700
LUMENS LUMENS LUMENS LUMENS LUMENS
Warnings
The light technical equipment must be safely installed during the en�re usage and must be ensured that the light will not be
moved in its posi�on due to uninten�onal adjustment.
DO NOT LOOK DIRECTLY INTO LIGHT BEAM or shine into eyes of another.
Lezyne LED Lights have a water resistance ra�ng of IPX7 under IEC standard 60529. Submerging the device is not recommend-
ed. If moisture does enter the casing, air out un�l completely dry.
DO NOT ATTEMPT TO REMOVE ELECTRONICS. Doing so will void warranty.
Lezyne USA, Inc. does not accept any liability for injuries or other damages resul�ng from the improper use or improper
installa�on of this product in any circumstance.
Technical Data
Output
500 Lumen
Wa�age 7.5 W
Input voltage 12-48V AC DC
(E-bike ba�ery systems)
Illuminant 2 LED
130 cm
Power cable length
Motors Compatibility
The MICRO DRIVE 500 HIGH VOLT is designed to work
with a wide variety of E-Bike systems. It is intended as an
solu�on to add powerful headlight to an E-bike system. It
supports power supplies and ba�eries from 12-48V . It
requires a minimum of 7.5W to func�on properly and
includes a Handle Bar Switch to power the light on/off and
change modes. Please contact the bicycle manufacturer
or supplier for informa�on on compa�bility and
installa�on.
Technical Data
Output 800 Lumen
Wa�age 8 W
Input voltage 12-48V AC DC
(E-bike ba�ery systems)
Illuminant 2 LED
130 cm
Power cable length
Motors Compatibility
The LITE PRO DRIVE 800 SWITCH HIGH VOLT is designed
to work with a wide variety of E-Bike systems. It is
intended as an solu�on to add powerful headlight to an
E-bike system. It supports power supplies and ba�eries
from 12-48V . It requires a minimum of 8W to func�on
properly and includes a Handle Bar Switch to power the
light on/off and change modes. Please contact the bicycle
manufacturer or supplier for informa�on on compa�bility
and installa�on.
Warranty
In U.S. and U.K., Lezyne LED Lights carry a two (2) year warranty from the original purchase date to the original owner (proof
of purchase required). Lezyne warran�es cover any manufacturing defects in materials or workmanship. Issues not covered by
warranty include normal wear & tear, improper installa�on, a�emp�ng to access or modify electronics, damage or failure due
to accident, misuse, abuse and/or neglect.
For all warranty issues worldwide, please contact the retailer that sold the product.
In the case of an LED not working properly or not working at all do not use your light anymore. These lights must be replaced
immediately.
For any warranty ques�ons contact: warranty@lezyne.com
Installation
Lezyne recommends that our E-Bike lights be installed by an E-bike professional. Below is general informa�on about wiring and
moun�ng the light to a compa�ble bike.
Yellow + Posi�ve Black − Nega�ve
Operation
The front light will be controlled via the on board electronics of the E-bike system. These lights are only to be mounted on
E-Bikes with DC voltage that have their own ba�ery charge indica�on and control. The e-bike system must be capable of
automa�cally shu�ng the light off when the onboard ba�ery reaches a cri�cal voltage to avoid deep dischaging of the
ba�ery.
Mounting
The light must be mounted in a height between 250 mm and 1200 mm. It must be ensured that the light technical equipment
will not be covered by any parts of the bike (�re, etc...).
▼Wire Fork Mount / Universal Aluminum Mount
Between
250 mm
and
1200 mm
▼Direct X-lock Stem Mount
Between
250 mm
and
1200 mm
o-ring
Floor
Floor
