ZN-7100 SERIES
Wireless Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-
step instructions on how to set up your ZN-
7100 Series Access Point. After completing
the steps described in this Guide, you will
be able to place the AP at your site and
provide wireless network access to users.

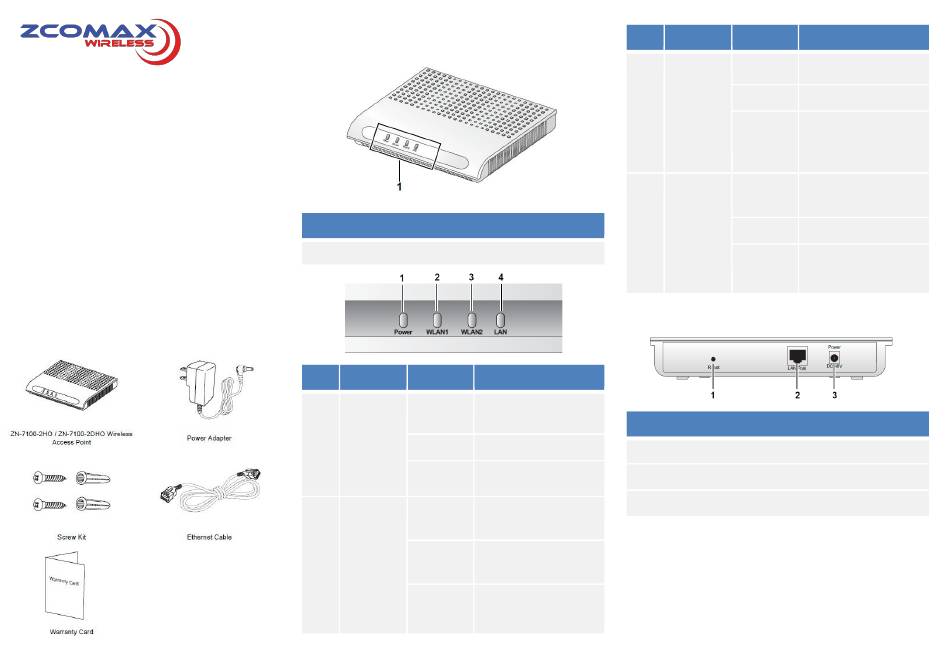

PACKAGE CONTENTS
HARDWARE OVERVIEW
Front View
No.
Item
1
LED Indicators
No
LED
State
Description
1
Power
On
Power on, device
ready
Off
No power to AP
Blinking
System initializing
2
WLAN1
Solid
2.4G radio enabled
Green
Off
2.4G radio
disabled
Rapid
Data forwarding
Blinking
through 2.4G radio
No
LED
State
Description
3
WLAN2
On
5G radio enabled
Off
5G radio disabled
Rapid
Data forwarding
Blinking
through 5G radio
4
LAN
Green
Ethernet is linked
On
Off
No Link
Blinking
Ongoing data
transmission
Rear View
No.
Item
1
Reset Pinhole
2
LAN/PoE
3
48VDC
SETUP REQUIREMENTS
Before installing your ZN-1000 Series Access Point,
be sure that you have the following:
