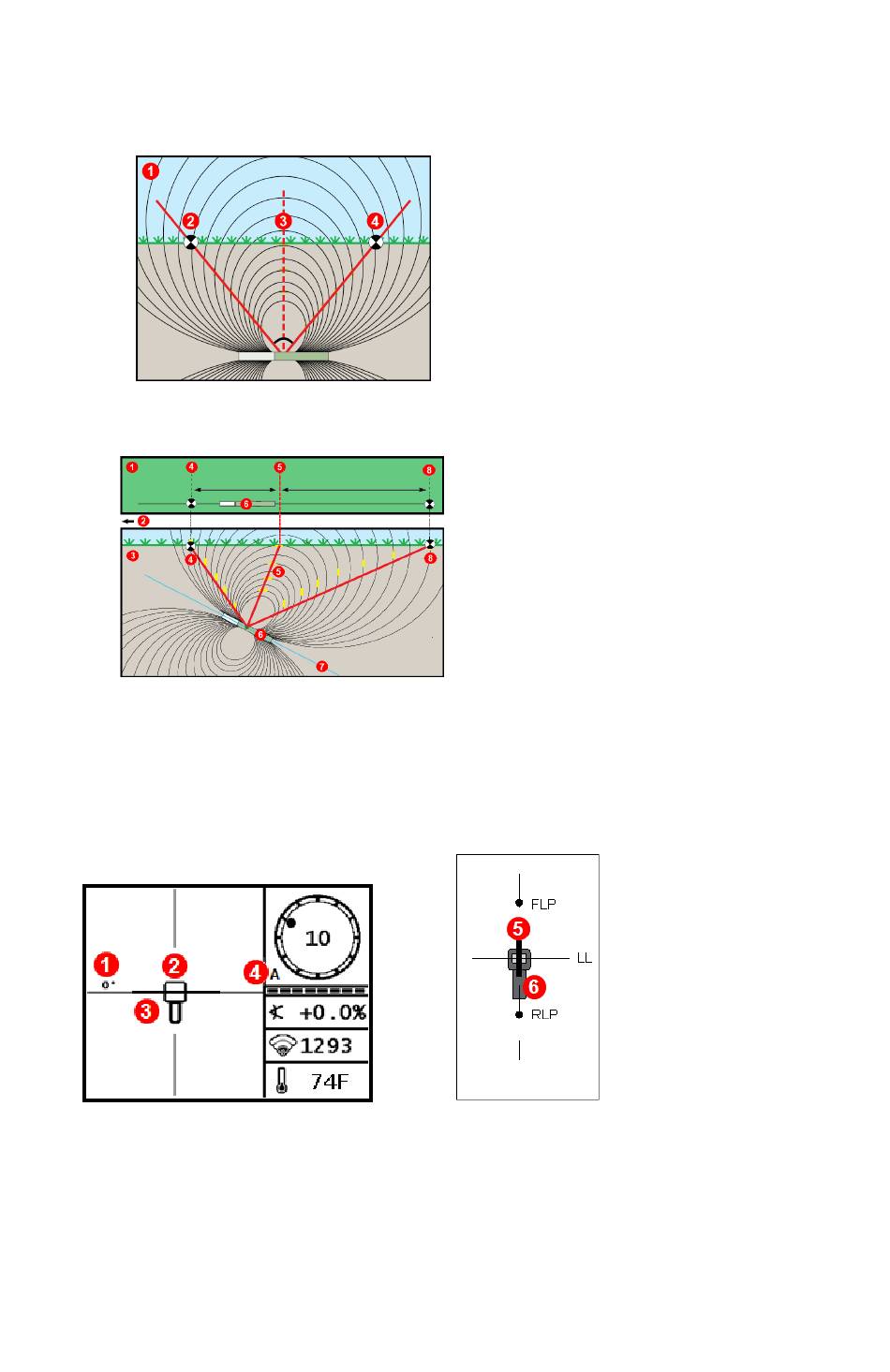

Transmitter Signal Field Geometry

Level Transmitter
Pitched Transmitter
FLP and RLP are not equidistant from the LL when the transmitter is
pitched. For more information, search the
and Deep."
Bird's-Eye View on Locate Mode Screen
Locate Mode Screen
(Line-in-the-Box at LL)
1. Side view
2. RLP: Rear Locate Point
3. LL: Locate Line
4. FLP: Front Locate Point
1. Bird's-eye view (top down)
2. Drill rig
3. Side view (underground)
4. RLP: Rear Locate Point
5. LL: Locate Line
6. Transmitter (Tx)
7. Bore path
8. FLP: Front Locate Point
DCI DigiGuide App
Actual Position of
Locator and
Transmitter
for "Steep
1. Locate Line Yaw
2. Locator (box)
3. Locate Line (LL)
4. Attenuation
5. Tx
6. Locator
- 5 -
