CFT610/5X/P
 CFT610/4W/P
 CFT610/5S/P
Cooker Hood
Instruction Manual








Advertisement

loading
Need help?

Need help?

Do you have a question about the CFT610/5X/P and is the answer not in the manual?

Questions and answers

Summary of Contents for Candy CFT610/5X/P

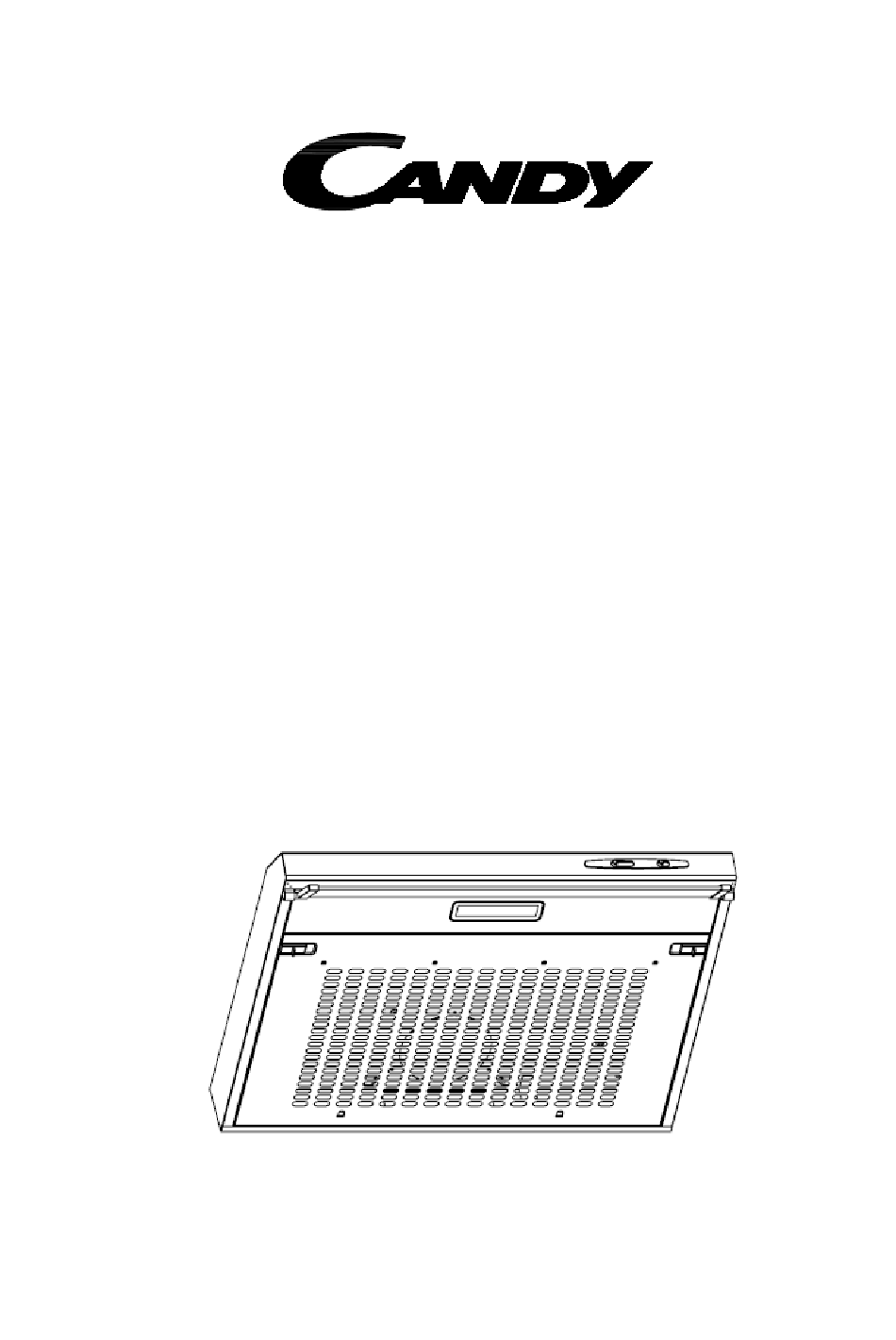

  • Page 1     CFT610/5X/P   CFT610/4W/P   CFT610/5S/P  Cooker Hood  Instruction Manual              ...
  • Page 2     Content 1…………………………………..………………………………Safetyinstructions 2…………………………………..………………………………Installation 3…………………………………..………………………………Startusingyourcookerhood 4…………………………………..………………………………Troubleshooting 5…………………………………..………………………………Maintenanceandcleaning 6…………………………………..………………………………Environmentprotection...
  • Page 3 SAFETY INSTRUCTIONS  hismanualexplainstheproperinstallationanduseofyourcookerhood, pleasereaditcarefullybeforeusingevenifyouarefamiliarwiththeproduct. Themanualshouldbekeptinasafeplaceforfuturereference. monoxide poisoning. After installation Nevertodo: of a range hood or other cooking fume extractor, the operation of open flued ● o not try to use the cooker hood gas appliances should be tested by a without the grease filters or if the filters competent person to ensure that back are excessively greasy! flow of combustion gases does not...
  • Page 4 ● Alwaystodo: arning: Before obtaining access to terminals, all supply circuits must be ● disconnected. aution: The appliance and its Alwaystodo: accessible parts can become hot during operation. Be careful to avoid touching the heating elements. ● lways put lids on pots and pans Children younger than 8 years old when cooking on a gas cooker.
  • Page 5 INSTALLATION(VENT OUTSIDE)   If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or non- flammable material with an interior diameter of 120mm) 1. Before installation, turn the unit off and unplug it from the outlet.. 2.
  • Page 6 8. Put the expansion pipe on the outlet, then lead it to outdoor, or use the outlet cover to seal the outer outlet and open the inner exhaust valve.Note:the expansion pipe is not supplied. Method B: 1. Drill 4 holes of Ø 6mm at the bottom of the hanging cupboard. See pic below. 2.
  • Page 7 Air ventilation setting  Outdoor air ventilation: Turn the adjuster to outdoor position(pic A), install the outlet, turn on the cooker hood, then the air will be vented from the outside outlet. Indoor air ventilation: Turn the adjuster to indoor position (pic B), install the outlet cover, turn on the cooker hood, then the air can be vented from the inside outlet.
  • Page 8 TROUBLESHOOTING  Fault  Possible Cause  Solution  Fan switch turned off Select a fan switch position. Light on, but motor Fan switch failed Contact service center. does not work Motor failed Contact service center. House fuses blown Reset/Replace fuses. Light does not Refit mains power cable to work, motor does Mains power cable is loose or power outlet.
  • Page 9 STAINLESS STEEL The stainless steel must be cleaned regularly (e.g.weekly) to ensure long life expectancy.Dry with a clean soft cloth. A specialized stainlesssteel cleaning fluid may be used. NOTE: Ensure that wiping is done along with thegrain of the stainless steel to prevent anyunsightly crisscross scratching patterns fromappearing.
  • Page 10  Installing grease mesh filters • To install filters for the following four steps: - Angle the filter into slots at the back of the hood. - Push the button on handle of the filter. - Release the handle once the filter fits into a resting position. - Repeat to install all filters.
  • Page 11 BULB REPLACEMENT  The bulb must be replaced by the manufacturer, its Important : service agent or similarly qualified persons.  Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it has completely cooled down before any direct contact with hands.
  • Page 12 ENVIRONMENTAL PROTECTION:  This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU.
  • Page 13 CFT610/5X/P CFT610/4W/P CFT610/5S/P Hotte de cuisson Manuel d'instructions...
  • Page 14: Table Of Contents

    Sommaire Consignes de sécurité Installation (évacuation externe) Comment utiliser votre hotte de cuisson Dépannage Entretien et nettoyage Protection environnementale :...
  • Page 15: Consignes De Sécurité

    CONSIGNES DE SECURITE Ce manuel indique comment installer votre hotte de cuisson et comment vous en servir. Avant toute utilisation, veuillez le lire attentivement, même si vous connaissez déjà ce produit. Conservez ce manuel dans un endroit sûr, pour pouvoir le consulter par la suite.
  • Page 16 Ne jamais oublier de : Ne jamais oublier de : ● ● Faites bien attention aux bords Cet appareil peut être utilisé par aiguisés à l’intérieur de la hotte, des enfants âgés de 8 ans et plus, notamment pendant l’installation et par des personnes dont les le nettoyage.
  • Page 17: Installation (Évacuation Externe)

    Ne jamais oublier de : Ne jamais oublier de : ● ● Pour des explications concernant le ATTENTION : Risque d’incendie : mode et la fréquence de nettoyage, ne pas stocker d’éléments sur les veuillez consulter le chapitre surfaces de cuisson. ●...
  • Page 18 3. Pour l'installation sur le mur, percez 2 trous de Ø 8 mm à un endroit approprié en fonction de l'entraxe des trous à l'arrière de la hotte, voir ill. 2. 4. ntroduisez les écrous dans les trous. 5. Insérez les vis ST4*30 mm dans les écrous et serrez fort. 6.
  • Page 19: Comment Utiliser Votre Hotte De Cuisson

    Réglage de la ventilation Ventilation à l’air extérieur : Tournez le bouton sur extérieur (ill. A), installez la sortie, allumez la hotte et l’air sera ventilé depuis la sortie extérieure. Ventilation à l’air intérieur : Tournez le bouton sur intérieur (ill. B), installez le couvercle de sortie, allumez la hotte et l’air sera ventilé...
  • Page 20: Dépannage

    DEPANNAGE Problème Cause possible Solution Sélectionnez une position Le commutateur de active du commutateur de ventilation est désactivé. ventilation. Lumière allumée, mais le moteur ne Le commutateur de Contactez le service après- fonctionne pas. ventilation est endommagé. vente. Contactez le service après- Le moteur est endommagé.
  • Page 21: Entretien Et Nettoyage

    ENTRETIEN ET NETTOYAGE Attention : Avant d'effectuer l'entretien ou le nettoyage, la hotte doit être débranchée de l'alimentation secteur. Assurez-vous que la hotte de cuisson est éteinte au niveau de la prise murale et que sa fiche est retirée. ● Les surfaces externes sont sujettes à...
  • Page 22  Démontage des filtres à graisse en caissettes métalliques a. Poussez les attaches du filtre à graisse en caissettes métalliques vers l’avant et retirez l’avant du filtre. b. Poussez ensuite les butées latérales inférieures gauche ou droite du filtre vers le haut jusqu'à...
  • Page 23 REMPLACEMENT D’UN LAMPE Important :  La lampe doit être remplacée par le fabricant, un agent après-vente ou toute autre personne qualifiée.  Coupez l’alimentation électrique avant toute intervention sur l’appareil. Lors de la manipulation d’une lampe, assurez-vous qu'elle a complètement refroidi avant de la mettre en contact avec vos mains.
  • Page 24: Protection Environnementale

    PROTECTION ENVIRONNEMENTALE : Ce produit est marqué du symbole du tri sélectif des équipements électroniques. Cela signifie que ce produit ne doit pas être éliminé en tant que déchet ménager, mais qu’il doit être traité selon un système de tri sélectif, conformément à la directive 2012/19/CE. Il sera ensuite recyclé...
