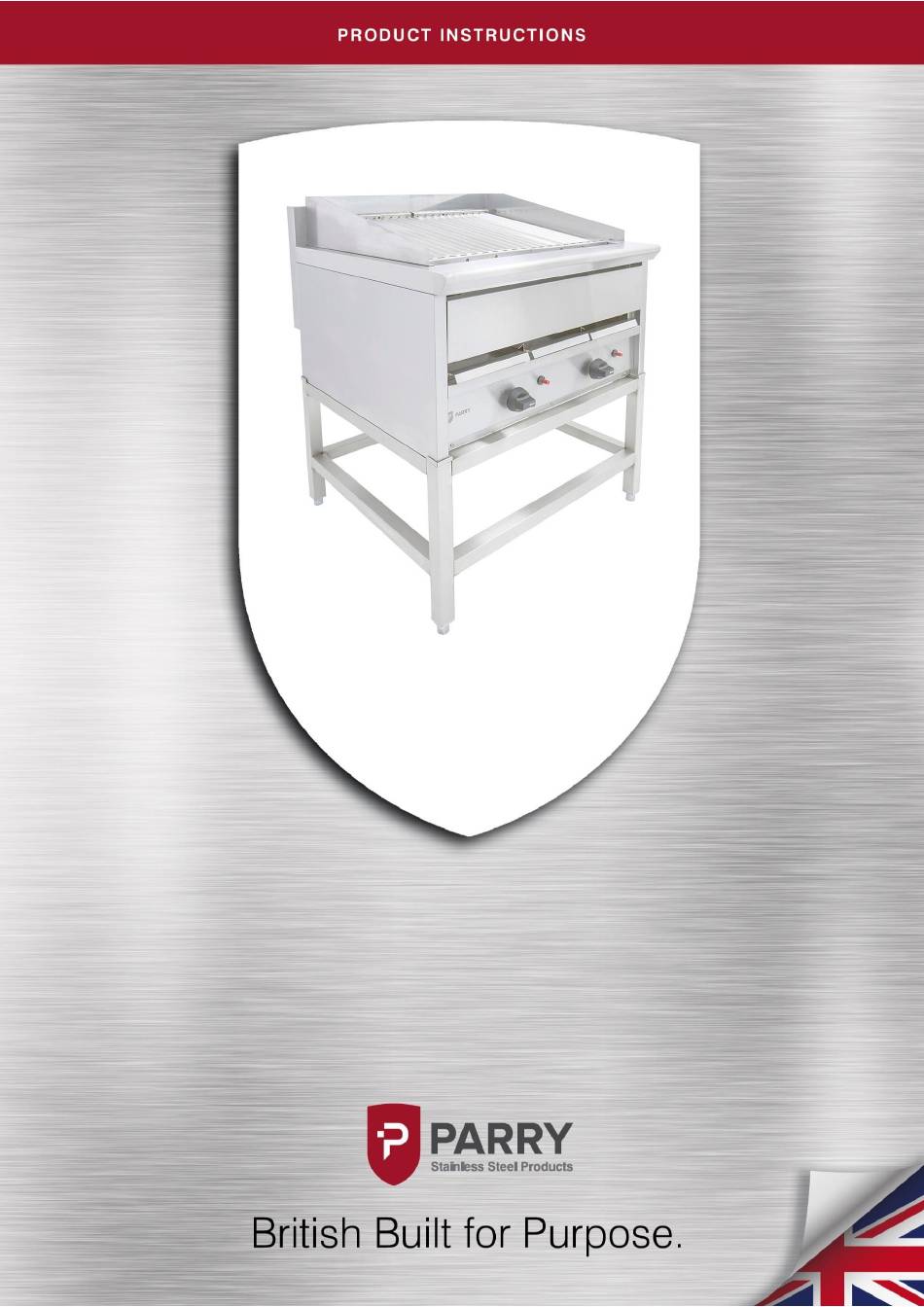

- Page 1 Instruction Manual Gas Chargrill UGC8/UGC8P...
-
Page 3: Table Of Contents
Parts List ............................15 Replacement Parts .......................... 16 Warranty Information........................17 Disposal & Recycling ........................18 Parry Catering Equipment (Midlands) Ltd, Town End Road, Draycott, Derby, DE72 3PT. Sales Tel: 01332 875544 Fax: 01332 874455 Parry-British Built for Purpose IN164-6... -
Page 4: Product Overview
Product Overview Designed for the demands of constant commercial use, the Parry UGC8/UGC8P gas chargrill is the perfect choice for takeaways, restaurants and canteens. Packed with useful features, the chargrill is incredibly heavy duty. The powerful burners have push button ignition and are shielded to prevent blockages from food residue. -
Page 5: Safety Instructions
To avoid scratching the highly polished exterior surface of this equipment whilst in transit, the protective film on the exterior surfaces has NOT been removed. It is IMPORTANT that this protective film is peeled off before the equipment is used. Parry-British Built for Purpose IN164-6... -
Page 6: Installation Instructions
It is recommended that the appliance be sited below a ventilating hood preferably of the extractor type incorporating a grease filter. Appliances are designed to be installed and fitted on a Parry stand for stability. If they are fitted on any other surface they should be suitably secured. - Page 7 All units should have a restraining cable fitted preventing the unit from being pulled away from the wall and causing the gas hose to become disconnected accidentally. Parry-British Built for Purpose IN164-6...
-
Page 8: Operating Instructions
Both trays are removable for cleaning, but care should be taken as during normal use the trays may get hot. Only remove when tray has cooled or with suitable gloves. Parry-British Built for Purpose IN164-6... -
Page 9: Cleaning Instructions
The burner shields lift off and burners can be cleaned in situ with a wire brush. The burners should only be removed by an engineer. Carefully clean the thermocouple probe, the ignitor electrode and pilot jet Parry-British Built for Purpose IN164-6... -
Page 10: Maintenance Instructions
Maintenance and service must only be undertaken by a qualified electrician. Parry Catering provides a complete after-sales service by offering the sales of spare parts directly to customers. Buying spares straight from the manufacturer allows customer to experience exceptional value and speedy delivery on all spare parts. -
Page 11: Fault Finding
Fault Finding Fault Check Solution No spark from electrode to Faulty piezo Change piezo pilot Faulty electrode Change electrode Uneven flame pattern on Possible blocked burner ports Clean burner with a wire brush burner Parry-British Built for Purpose IN164-6... -
Page 12: Conversion Instructions
Injector Size Injector Code Pilot injector 1.4 PINJ76371 Propane G31 @ UGC8 37 mbar 14.8” W.G. Burner injector 1.35 INJECT135 Pilot injector 2.6 UCG8NATINJ Nat Gas G20 @ 20mbar 8” W.G UGC8 Burner injector 2.20 INJECT220 Parry-British Built for Purpose IN164-6... -
Page 13: Technical Data
Injector Size Injector Code Pilot injector 1.4 PINJ76371 Propane G31 @ UGC8 37 mbar 14.8” W.G. Burner injector 1.35 INJECT135 Pilot injector 2.25 PINJ76378 Nat Gas G20 @ 20mbar 8” W.G UGC8 Burner injector 2.20 INJECT220 Parry-British Built for Purpose IN164-6... - Page 14 M³/HR FT³/HR LB/HR KG/HR NATURAL G20 0.991 35.004 PROPANE G31 0.572 20.20 2.412 1.094 Pilot Injector Rates (All figures are NET) Flowrate M³/HR Total Heat Input KW NATURAL G20 0.058 0.548 PROPANE G31 0.005 0.122 Parry-British Built for Purpose IN164-6...
-
Page 15: Service Information
This appliance should be routinely serviced to prolong its lifetime. Parry recommends that the appliance is serviced every 12 months by a Parry authorised engineer. Failure to service your product within the initial 12 month warranty period will cause the 24 month warranty to become void. -
Page 16: Exploded View
Exploded View Parry-British Built for Purpose IN164-6... -
Page 17: Parts List
Saddle Bracket for Rail SADDLEBKT Piezo Igniter PIEZO1SP1 Injector 193 INJECT 193 8mm T Piece 8MMTEE UGC8 8mm Bundy Tube from UCG8PIPE1 Valve to Burner UGC8 6mm Bundy Tube from UCG8PIPE2 Valve to pilot UGC8 8mm tee to injector UCG8PIPE3... -
Page 18: Replacement Parts
Thermocouple ULTKNOB2 Gas Tap Knob ULTUS9PILOT Pilot UCG8GASR Gas Rail UGC8 UCG8PIPE1 UGC8 8mm pipe valve to burner UCG8PIPE2 UGC8 6mm pipe valve to pilot UCG8PIPE3 UGC8 8mm tee pipe to injector UCG8VGRID V cooking grid UCG8RGRID Rod cooking grid... -
Page 19: Warranty Information
Parry and not the sale or installation date of the equipment. Please ensure you have referred to the manufacturer’s instruction before placing a warranty... -
Page 20: Disposal & Recycling
Disposal & Recycling The packaging should be disposed of in accordance with the regulations in force. Parry-British Built for Purpose IN164-6...
