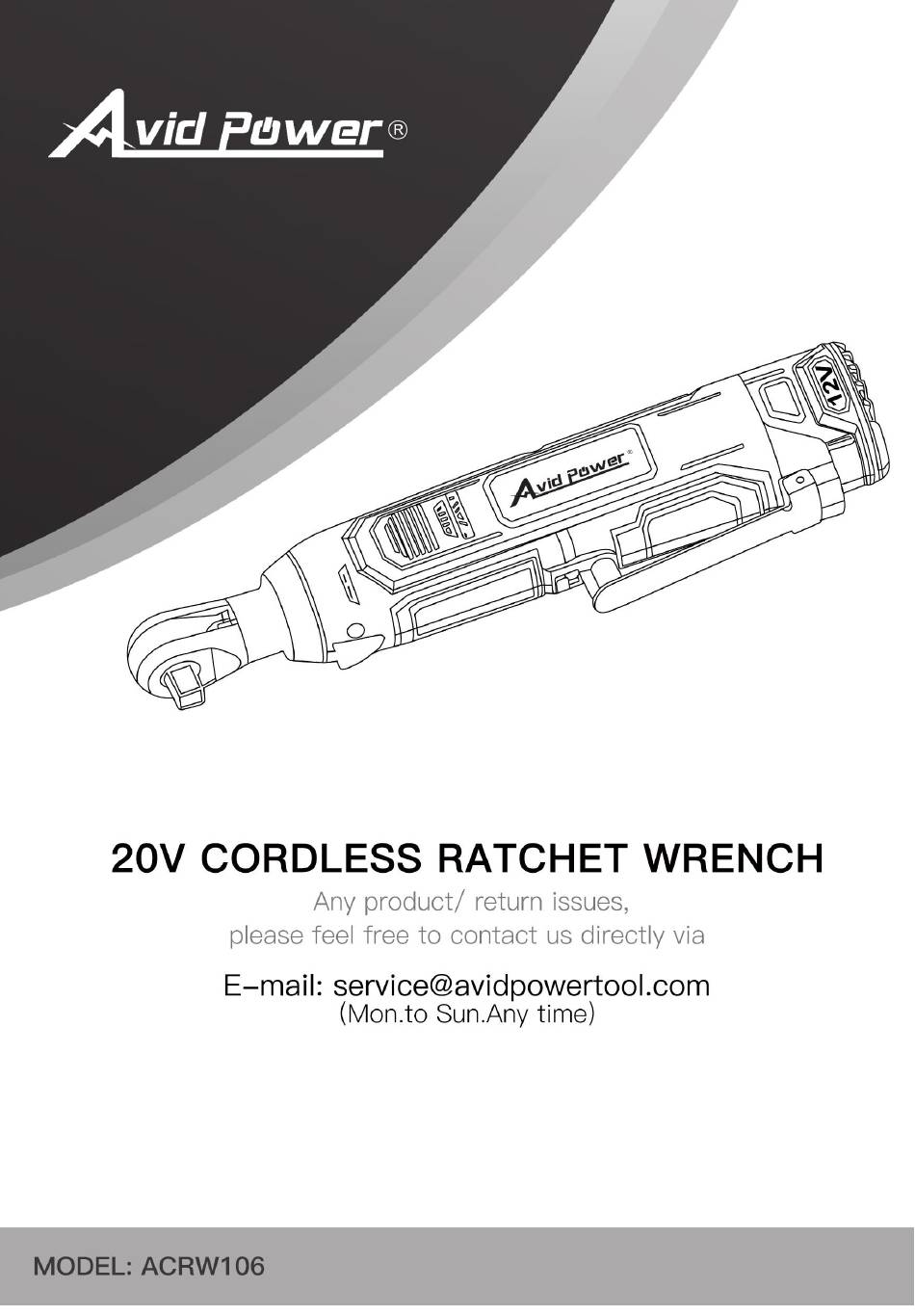

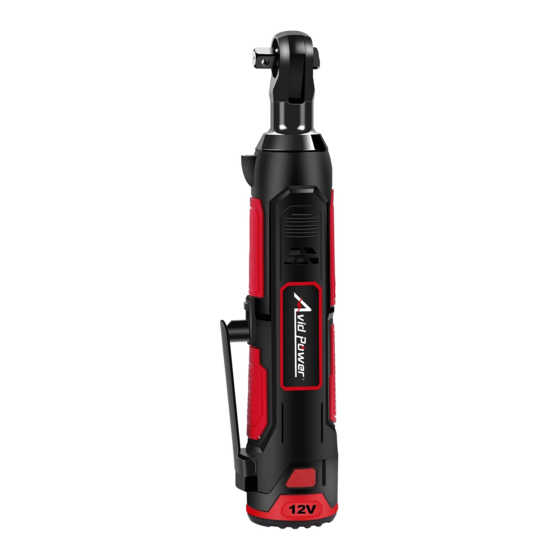

20v cordless ratchet wrench

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACRW106 and is the answer not in the manual?

Questions and answers

Summary of Contents for Avid Power ACRW106

  • Page 2: General Safety Rules

    GENERAL SAFETY RULES Work Place Keep the workplace clean and bright. Chaos and dark places can cause an accident. Do not operate electric tools in explosive atmospheres, in the presence of explosive liquids, gases or dust. The spark generated by the power tool ignites dust or gas. To operate the power tools when children and bystanders are not at the scene.
  • Page 3 GENERAL SAFETY RULES If provided with the chip removal device, dust collection device connected to the device, make sure they are connected and used properly. The use of these devices reduces the risk of debris. Power tools use and precautions Do not abuse the power tool, use the appropriate power tool according to the application.
  • Page 4: Product Introduction

    PRODUCT INTRODUCTION 1. 3/8” output shaft 2. Ratchet head component 3. Left/right Housing 4. Paddle switch 5. Battery 6. Battery button Basic Specification Item No ratchet wrench Rated Voltage No Load Speed 0-300rpm Output shaft 3/8" Motor RS540 MAX Max Torque 50N.m (37ft-lbs) Battery Capacity 2000MAH...
  • Page 5 OPERATION INSTRUCTIONS 1. Adjusting the knob of ratchet head, Turning R to make it forward, thus tightening bolt; Turning F to make it reverse, thus taking off bolt. 2.When Pressing the paddle switch, the ratchet wrench start to on work. 2.
  • Page 6 OPERATION INSTRUCTIONS It also can be external 3/8 conversion head. Important safety precautions for battery packs Before using the battery pack, please carefully read the relevant instructions and (1) the charger (2) the battery pack and (3) the warning mark on the product that requires the use of the battery. Do not disassemble the battery pack If the working time is significantly shorter, you should immediately stop the operation.
  • Page 7: Charging Instructions

    OPERATION INSTRUCTIONS battery pack water or rain. Battery short circuit can lead to current increases, overheating, burning or even breakdown. Tools and battery packs shall not be stored where the temperature is likely to reach or exceed 50°C(122.F). Even if the battery pack has been severely damaged or completely depleted, and can not be burned.
  • Page 8: Component List

    COMPONENT LIST Name Qty. spring#23 spin knob Shaft ratchet ring big washer ratchet pin ratchet small spring gear box nut φ11x9 bearing φ17xφ12.7x14mm orbital shaft star frame star gear motor gear inside circle screw M3x10 screw M3x8 motor seat motor led light left housing power indicator...
  • Page 9: Exploded View

    EXPLODED VIEW...
