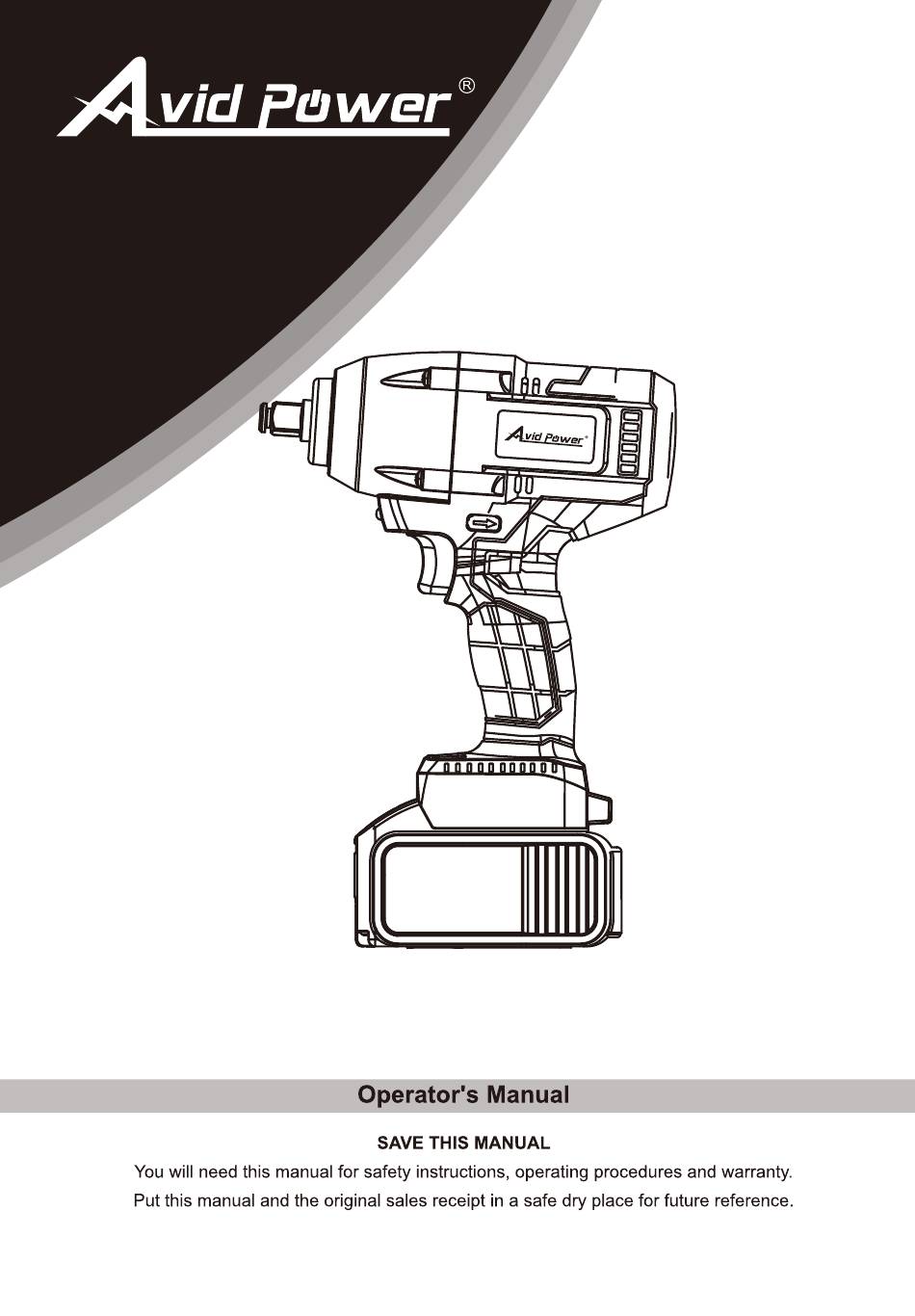

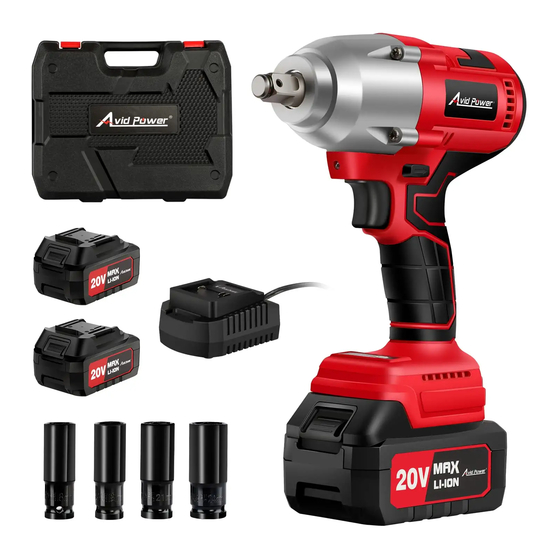

MODEL: ACIW124
20V MAX CORDLESS IMPACT WRENCH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACIW124 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avid Power ACIW124

Summary of Contents for Avid Power ACIW124

  • Page 1 MODEL: ACIW124 20V MAX CORDLESS IMPACT WRENCH...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTENDED USE ..................3 SAFETY INSTRUCTIONS ..............3 PRODUCT FEATURES .................8 PACKAGE CONTENTS ................8 TECHNICAL SPECIFICATIONS ............9 CHARGING INSTRUCTIONS ...............9 BASIC IMPACT WRENCH OPERATION ..........11 MAINTENANCE ..................14 TROUBLESHOOTING ................14 DISPOSAL ....................14 PARTS LIST ..................15 EXPLODED VIEW .................16...

  • Page 3: Intended Use

    INTENDED USE This hand-held cordless impact wrench is intended to tighten and loosen mechanical fixings (nuts, bolts, etc). It is intended for domestic and light commercial use only. Any other application is considered misuse. SAFETY INSTRUCTIONS General Safety Instructions For Power Tool Use Read all safety warnings and all instructions.
  • Page 4 SAFETY INSTRUCTIONS slip sole. „ Wear personal protective equipment (PPE). Dust, noise, vibration and swarf can be dangerous if not fully emphasized. If the work involving the power tool creates dust or fumes wear a dust mask. Vibration to the hand, caused by operating some tools for long time use must be protected against.
  • Page 5 SAFETY INSTRUCTIONS „ Carefully select an extension lead. Some machines are not suitable for use with extension leads. If the tool is designed for outdoor use, use an extension lead also suitable for that environment. When using an extended lead, select one capable of handling the current (amps) drawn by the machine in use.
  • Page 6 SAFETY INSTRUCTIONS „ Impact wrenches are not torque wrenches and are not designed or capable of installing fasteners to specified torque. For fasteners requiring a specific torque, install the fastener to well below the required value then complete the task with a hand torque wrench to avoid damaging the fastener or workpiece.
  • Page 7 SAFETY INSTRUCTIONS proceeding with the charging operation. „ Set up the charger and cable in a safe place when it won't be knocked, tripped over, stepped on, etc. and when it is ventilated. Make sure the ventilation slots in the charger are not obstructed, plug the charger into the socket outlet.

  • Page 8: Product Features

    SAFETY INSTRUCTIONS supplementary insulation is applied to the basic insulation to protect against electric shock in the event of failure of the basic insulation. PRODUCT FEATURES 1. Socket 2. Rotational direction switch 3. On/Off switch 4. Handle 5. Battery pack 6.

  • Page 9: Technical Specifications

    TECHNICAL SPECIFICATIONS Model ACIW124 Rating voltage (DC) 20V MAX No load speed 2300/1900 /1600rpm Maximum torque (Forward / Reverse) 550N.m(406 ft-lbs) INPUT: 100-240VAC,50/60Hz 1.5A Rating Voltage for Charger OUTPUT: 21VDC, 2.3A Battery capacity 4.0Ah Charge time CHARGING INSTRUCTIONS Charging the battery pack To charge the battery pack, it must be removed from the tool.
  • Page 10 CHARGING INSTRUCTIONS „ After a few seconds delay, the red LED will light to show the battery pack is being charged and the green LED will go out. Ensure the battery pack is connected correctly. Sliding the battery pack incorrectly may cause damage to the battery charger. When the battery pack is fully charged, the green LED will light.

  • Page 11: Basic Impact Wrench Operation

    CHARGING INSTRUCTIONS BASIC IMPACT WRENCH OPERATION Installing and removing This impact wrench is supplied with a 1/2 square drive and an electric brake. Never use any sockets or accessories that are not hardened for impact use. Never use standard chrome vanadium steel sockets which can shatter and can cause personal injury. To fit a socket: „...
  • Page 12 BASIC IMPACT WRENCH OPERATION „ Stop the machine and push the switch to the left or right. „ When the direction switch is pushed to the left, the drive will rotate clockwise. „ When the switch is pushed to the right, the drive will rotate anticlockwise. „...
  • Page 13 BASIC IMPACT WRENCH OPERATION LED Worklight To aid use in confined and inadequately lit spaces the LED worklight automatically illuminates when the trigger is activated. Variable Torque Selector Output force can be varied by pressing the selector button to a desired level, this helps to limit the output torque.

  • Page 14: Maintenance

    MAINTENANCE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. Avoid blocking the air inlets and vacuum the ventilation slots regularly. TROUBLESHOOTING Problems Possible cause...

  • Page 15: Parts List

    PARTS LIST...

  • Page 16: Exploded View

    EXPLODED VIEW...
