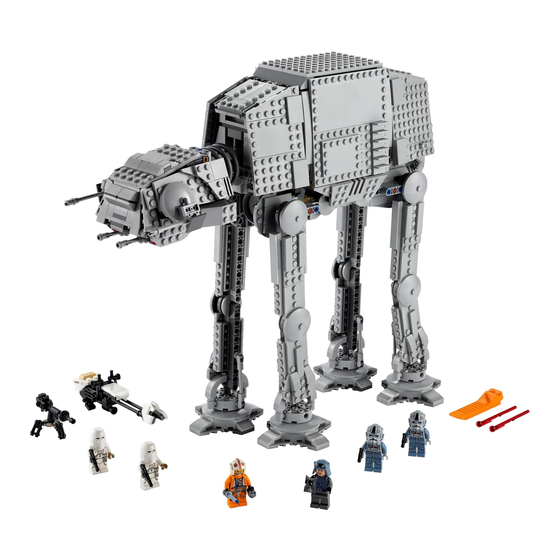

- Page 1 LEGO® STAR WARS AT-AT #75288 LIGHT KIT INSTALLATION GUIDE...
- Page 2 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE Light My Bricks LEGO® STAR WARS AT-AT #75288 LIGHT KIT INSTALLATION GUIDE Hi There! We’re here to help you get started on the LEGO® Star Wars AT-AT (75288) Light Kit. This PDF details the instructions for the LED light kit only. If you are wishing to purchase this product, please click here to view the product page.
- Page 3 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE PACKAGE CONTENTS: LEGO PIECES: • 1 x Round Brick 1x1 - Trans Red 1 x Light My Bricks Lightsaber - Blue • 1 x Round Plate 1x1 - Trans Red 1 x Rotating Bit Light 30cm •...
-
Page 4: Table Of Contents
LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE Contents Before You Begin Blueprint Instructions Final Product Troubleshooting Contact CONTENTS... -
Page 5: Before You Begin
LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE Before You Begin Laying cables in between Connecting Cable and underneath bricks Connectors To Expansion Boards Cables can fit in between and underneath LEGO® bricks, plates, and tiles providing Take extra care when inserting connectors they are laid correctly between the to ports of Expansion Boards. - Page 6 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE Before You Begin Connecting Cable Connecting Micro Cable Connectors To Strip Lights Connectors To Micro Expansion Board Ports Take extra care when inserting connectors to ports on the Strip Lights. Connectors Take extra care when inserting the can be inserted only one way.
- Page 7 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE Before You Begin Installing Bit Lights Under Lego® Bricks And Plates When installing Bit Lights under LEGO® pieces, ensure they are placed the correct way up (Yellow LED component exposed). You can either place them directly on top of LEGO®...
-
Page 8: Blueprint
LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE BLUEPRINT INSTRUCTIONS... -
Page 9: Instructions
LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE INSTRUCTIONS To ensure a smooth installation of your light kit, please read and follow each step carefully. If you run into any issues, please refer to the online troubleshooting guide. INSTRUCTIONS... - Page 10 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 11 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE LMB Lightsaber - Blue CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 12 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE Thread the Rotating Bit Light 30cm Round Brick 1x1 - Trans Red lightsaber cable between the gun barrels, then wrap it around the rope Bend the Rotating Bit Light cable so it fits inside...
- Page 13 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE 30cm Connecting Cable CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 14 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE 2-Port Expansion Board USB Power Cable Partially remove Ensure the the black round 2-Port Expansion plate enough for Board sits in the the cable to fit space at the bottom underneath...
- Page 15 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE White Strip Light Plate 1x6 - Black Connect to a USB Power Bank, AA Battery Pack, or USB Wall Adapter (each sold seperately) 30cm Connecting Cable CONNECT / Legend DISCONNECT TURN / FLIP...
- Page 16 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE Put the wire 30cm Connecting Cable behind the column LEGO piece, and on the inside of the red clip CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST...
- Page 17 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE Please thread the cable under the door hinge Thread the Connecting Cable through the rings on the neck Thread the 30cm Connecting Cable from step 9 through to the neck CONNECT /...
- Page 18 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE 4-Port Micro Expansion Board Red 15cm Micro Bit Light Place the Micro 4 x Plate 1x2 - Trans Red Bit Lights face down in the corner of the inner Trans Red Plates...
- Page 19 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE Red 30cm Bit Light Red 15cm Micro Bit Light Round Plate 1x1 Open Stud - Light Grey CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST...
- Page 20 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE Connect the two Gun Effects Board Red 30cm Bit Light Red 30cm Bit Lights to the “OUT” ports on the Gun Effects Board Round Plate 1x1 Open Stud - Light Grey...
- Page 21 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE Connect the other end of the 5cm Connecting Cable to the “5V+” port of the Gun Effects Board Connect the two 5cm Connecting Cable Red 30cm Bit Lights to the remaining “OUT”...
- Page 22 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE To keep the interior neat, twist the cables running from the roof Place the 6-Port Expansion Board from step 8 in the belly of the AT-AT CONNECT / Legend DISCONNECT TURN / FLIP...
- Page 23 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
-
Page 24: Final Product
LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE FINAL PRODUCT This finally completes installation of the Light My Bricks Star Wars AT-AT 75288 Light Kit. FINAL PRODUCT... -
Page 25: Troubleshooting
LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE TROUBLESHOOTING Light My Bricks lighting To prevent unnecessary If you are experiencing kits contain individual damage to components, issues with your Light components that are very we highly recommend that My Bricks set, watch our... - Page 26 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE Troubleshooting Firstly, ensure that the Check For CR2032 Batteries batteries have power using a Using The Flat Battery Pack battery charge gauge. Inside the battery pack is a symbol indicating which side the (round) CR2032 If the batteries have no power, battery should be inserted.
- Page 27 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE Troubleshooting Check For Cr2032 Batteries Check for AA batteries Using The Round Battery using the AA battery pack Pack Inside the battery pack are symbols indicating which direction the AA battery Inside the battery pack is a symbol indicating should be inserted.
- Page 28 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE Troubleshooting Check Your Wires In order for Light My Bricks components to fit If the wiring is detached from the LED itself, the in between and underneath LEGO® bricks, the light will not operate.
- Page 29 LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE Troubleshooting Check Your Expansion Board A short circuit can also result in overheating of the board, cable or Ports/ Strip Light Ports / batteries. If you suspect a short circuit, Effects Board Ports...
-
Page 30: Contact
LEGO STAR WARS AT-AT 75288 LIGHT KIT INSTALL GUIDE CONTACT US If you have an enquiry regarding the online shop, our products or a general enquiry please refer to our Frequently Asked Questions webpage here. Alternatively, you can contact our Customer Services team by visiting our online support portal here. - Page 31 lightmybricks.com...
