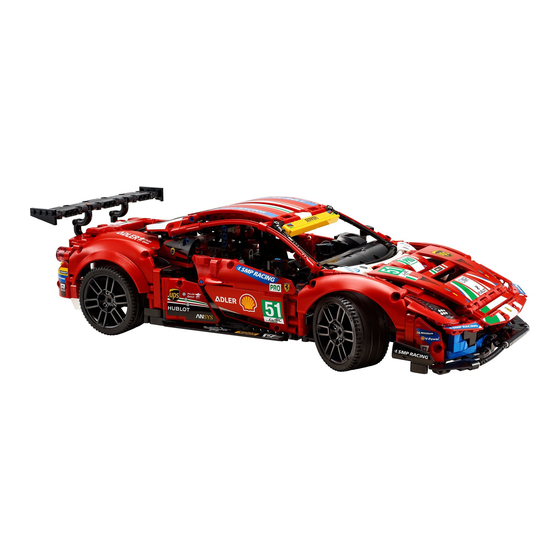

- Page 1 LEGO® TECHNIC FERRARI 488 GTE “AF CORSE #51” #42125 LIGHT KIT INSTALLATION GUIDE...
- Page 2 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE Light My Bricks LEGO® TECHINIC FERRARI 488 GTE “AF CORSE #51” #42125 LIGHT KIT INSTALLATION GUIDE Hi There! We’re here to help you get started on the LEGO® Techinic Ferrari 488 GTE (42125) Light Kit.
- Page 3 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE PACKAGE CONTENTS: LEGO PIECES: 2 x Cool White 30cm Bit Lights • 3 x Technic Pin 1/2 4 x Large Cool White 30cm Bit Lights • 1 x Grey Bracket 1x1 - 1x1 7 x White 30cm Bit Lights •...
-
Page 4: Table Of Contents
LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE Contents Before You Begin Instructions Final Product Troubleshooting Contact CONTENTS... -
Page 5: Before You Begin
LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE Before You Begin Laying cables in between Connecting Cable and underneath bricks Connectors To Expansion Boards Cables can fit in between and underneath LEGO® bricks, plates, and tiles providing Take extra care when inserting connectors they are laid correctly between the to ports of Expansion Boards. - Page 6 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE Before You Begin Connecting Cable Connecting Micro Cable Connectors To Strip Lights Connectors To Micro Expansion Board Ports Take extra care when inserting connectors to ports on the Strip Lights. Connectors Take extra care when inserting the can be inserted only one way.
- Page 7 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE Before You Begin Installing Bit Lights Under Lego® Bricks And Plates When installing Bit Lights under LEGO® pieces, ensure they are placed the correct way up (Yellow LED component exposed).
-
Page 8: Instructions
LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE INSTRUCTIONS To ensure a smooth installation of your light kit, please read and follow each step carefully. If you run into any issues, please refer to the online troubleshooting guide. - Page 9 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE Legend CONNECT / DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 10 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE Black 2x4 Plate Grey 1x4 Plate 3 x Trans Yellow 1x1 Plate 3 x White 30cm Bit Light Legend CONNECT / DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST...
- Page 11 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
- Page 12 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE Grey 1x4 Plate Black 2x4 Plate 3 x White 30cm Bit Light 2 x Large Cool White 30cm 3 x Trans Yellow 1x1 Plate Bit Light Legend CONNECT / DISCONNECT...
- Page 13 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
- Page 14 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE Legend CONNECT / DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 15 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE Thread the 30cm Connecting Cable to the passenger side Ensure the wires 8-Port Expansion Board are tucked so that it is not visible Legend CONNECT / DISCONNECT TURN / FLIP...
- Page 16 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE Ensure that you do NOT forcefully push the technic axle all the way through. Doing so will break the Bit Light Large Red 30cm Bit Light Legend CONNECT / DISCONNECT...
- Page 17 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
- Page 18 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE White 30cm Bit Light Trans Clear 1x1 Round Plate Technic Pin 1/2 Grey Bracket 1x1 - 1x1 Legend CONNECT / DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST...
- Page 19 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE Thread the 30cm Bit Light through the LEGO Technic Beam as shown NC Push Board Connect the 30cm Connecting Cable 30cm Connecting Cable to the ‘IN’ port of the NC Push...
- Page 20 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
- Page 21 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE Technic Pin 1/2 Trans Clear 1x1 Round Plate Thread the 30cm Cool White Bit Light through the hole as shown with the connector end going through the hole first Legend...
- Page 22 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE Thread the bit light through the whole as shown White 30cm Bit Light Trans Clear 1x1 Round Plate Legend CONNECT / DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST...
- Page 23 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
-
Page 24: Final Product
LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE FINAL PRODUCT This finally completes installation of the Light My Bricks Technic Ferrari 488 GTE 42125 Light Kit. FINAL PPRODUCT... -
Page 25: Troubleshooting
LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE TROUBLESHOOTING Light My Bricks lighting To prevent unnecessary If you are experiencing kits contain individual damage to components, issues with your Light components that are very we highly recommend that... - Page 26 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE Troubleshooting Firstly, ensure that the Check For CR2032 Batteries batteries have power using a Using The Flat Battery Pack battery charge gauge. Inside the battery pack is a symbol indicating which side the (round) CR2032 If the batteries have no power, battery should be inserted.
- Page 27 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE Troubleshooting Check For Cr2032 Batteries Check for AA batteries Using The Round Battery using the AA battery pack Pack Inside the battery pack are symbols indicating which direction the AA battery Inside the battery pack is a symbol indicating should be inserted.
- Page 28 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE Troubleshooting Check Your Wires In order for Light My Bricks components to fit If the wiring is detached from the LED itself, the in between and underneath LEGO® bricks, the light will not operate.
- Page 29 LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE Troubleshooting Check Your Expansion Board A short circuit can also result in overheating of the board, cable or Ports/ Strip Light Ports / batteries. If you suspect a short circuit,...
-
Page 30: Contact
LEGO TECHNIC FERRARI 488 GTE 42125 LIGHT KIT INSTALL GUIDE CONTACT US If you have an enquiry regarding the online shop, our products or a general enquiry please refer to our Frequently Asked Questions webpage here. Alternatively, you can contact our Customer Services team by visiting our online support portal here. - Page 31 lightmybricks.com...
