Electrical Connections - Sartorius Arium H2O-ARST-P-B Operating Instructions Manual

3.4

Electrical Connections

5

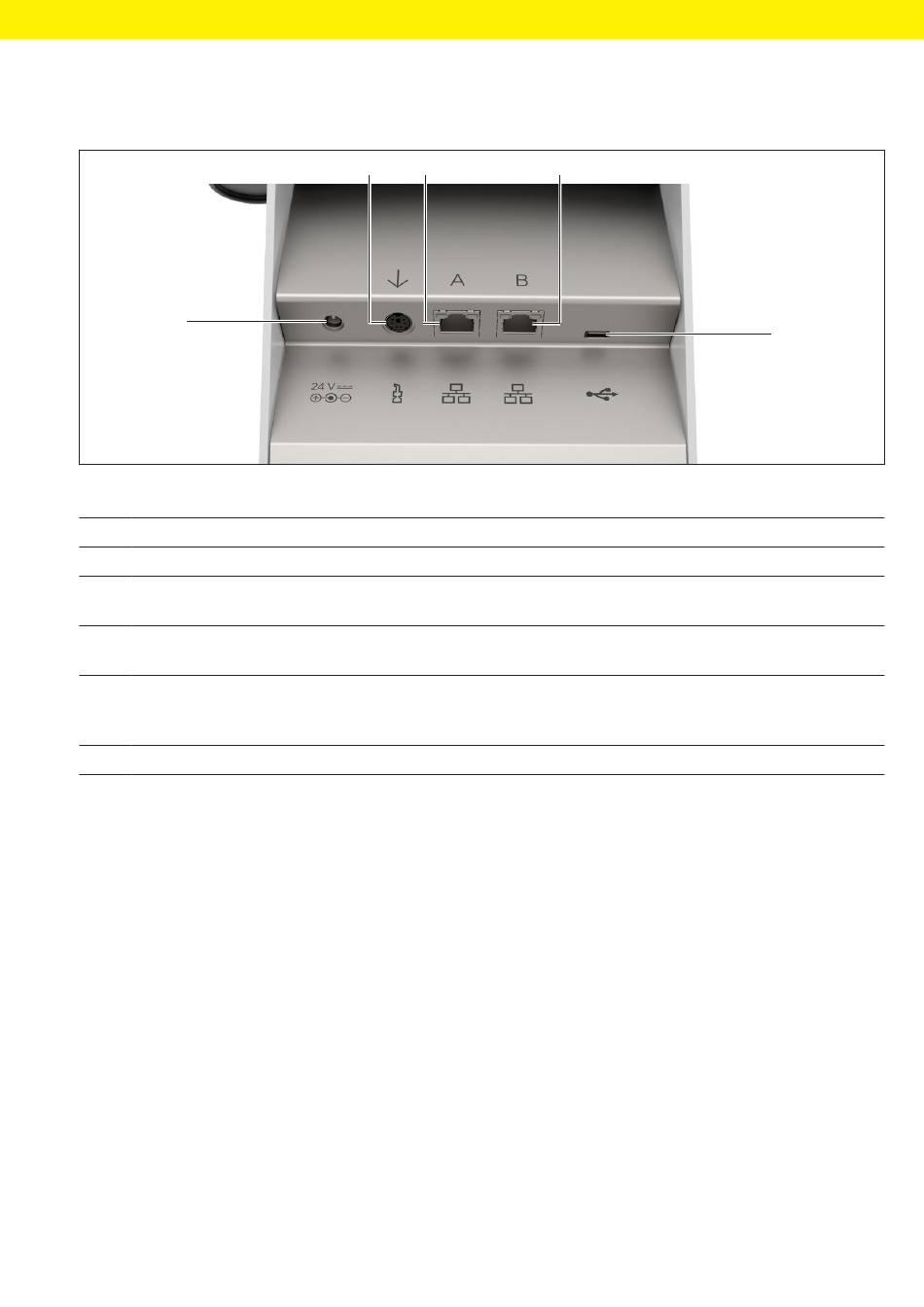

Fig. 4: Electrical connections (example)
Pos . Name
1 Hand-held part connection
2 Ethernet "A"
3 Ethernet "B"
4 USB-C
5 Power supply
1 2
Description
Used to connect the hand-held part to the control unit.
Used to connect an Arium
Smart Station.
Used to connect an Arium
Smart Station.
Used to connect accessories, e.g., printers or USB mass storage devices
(for maximum storage size, see Chapter "14.7.2 Specifications for the
USB-C Interface", page 71).
Used to connect the power supply unit.
Device Description
3
water treatment device or another Arium
®
water treatment device or another Arium
®
Arium Smart Station Operating Instructions
®
4
®
®
13
