- Page 1 Operating Instructions Microsart e.motion Dispenser 16713----BO | 16713----PS Membrane Filter Dispenser 1000029800...
-
Page 3: Table Of Contents
Contents Contents 1 About These Instructions ....6 1.1 Scope........6 1.2 Target Groups. - Page 4 Contents 5 Getting Started ......18 5.1 Connecting the AC Adapter ....18 5.2 Connecting the Power Supply .
- Page 5 14.2 Consumables......40 15 Sartorius Service......41 16 Conformity .
-
Page 6: About These Instructions
About These Instructions About These Instructions Scope These instructions apply to the device in the following versions: Device Model Microsart e.motion dispenser with AC adapter 16713----PS Microsart e.motion dispenser with built-in battery and AC adapter 16713----BO Target Groups These instructions are designed for the following target groups. The target groups must possess the knowledge listed. -
Page 7: Symbols Used
About These Instructions Target group Knowledge/responsibilities Operator The operator of the device is responsible for compliance with safety requirements and workplace safety regulations. The operator must ensure that all persons who work on the device have access to the relevant information and have been instructed in work on the device. -
Page 8: Safety Instructions
Any further use beyond this is considered improper and is prohibited. If the equipment is used in a manner not specified by Sartorius, the protection provided by the equipment may be impaired. These instructions are part of the device. The device is intended exclusively for use in accordance with these instructions. -
Page 9: Proper Working Order Of The Device
Keep live parts away from moisture. Moisture can cause short circuits. Work on the Electrical Equipment Work on and modifications to the electrical equipment of the device may only be carried out by Sartorius Service personnel. The device may only be opened by Sartorius Service personnel. e.motion Dispenser Operating Instructions... -
Page 10: Accessories, Consumables, And Spare Parts
− Malfunctions of the device − Device failure Only use accessories, consumables, and spare parts supplied by Sartorius. Information on operational quality is available upon request from Sartorius. Only use accessories, consumables, and spare parts that are in proper working order. -
Page 11: Personal Protective Equipment
Safety Instructions Personal Protective Equipment Personal protective equipment protects against risks arising from the equipment and the material being processed. Protective equipment Explanation/examples designation Protective work clothing Tight-fitting work clothing with low tear resistance, tight sleeves and without any projecting parts. Protects against being drawn in by moving parts or against chemicals, heat and injuries. -
Page 12: Device Description

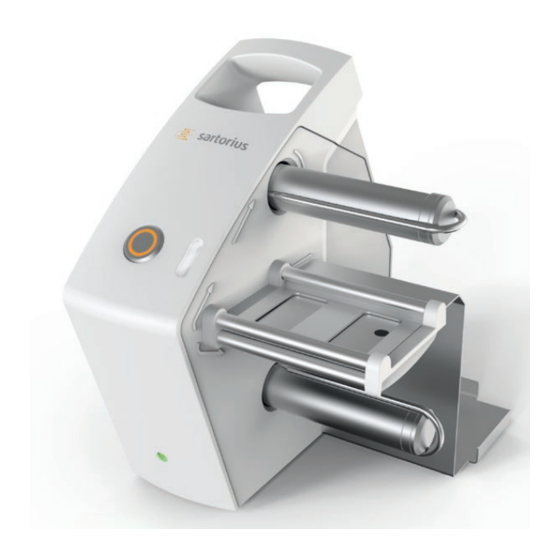

Device Description Device Description Device Overview Fig. 1: Microsart e.motion dispenser, front view e.motion Dispenser Operating Instructions... - Page 13 Device Description No. Name Description Handle Used to transport the device. Spool rollers Spool transparent film and paper of empty membrane filter strips. Holding clamps Fix the membrane filter strips on the spool rollers. Box holder Holds the membrane filter package Position sensor Detects the positions of the membrane filters and shows the number of membrane filters still available.
-
Page 14: Electrical Connections
Device Description Electrical Connections Fig. 2: Microsart e.motion dispenser, back view Name On/off switch Port for AC adapter (power supply) Port for foot switch e.motion Dispenser Operating Instructions... -
Page 15: Membrane Filter Dispensing
Device Description Membrane Filter Dispensing The device transports the membrane filter strip through the filter output and separates it from the individual packaging. The transparent film and paper of the empty membrane filter strips are spooled on the spool rollers. The dispensed membrane filters are used for the microbiological examination of liquids that can be filtered and are placed in a culture medium and... -
Page 16: Installation
Installation Installation Scope of Delivery The equipment supplied includes the following components: Product Quantity Microsart e.motion dispenser Model: 16713----BO | Model: 16713----PS AC adapter with country-specific power cord Operating Instructions Prerequisites for Installation Procedure Make sure that the following conditions are met at the place of installation: Condition Characteristics... -
Page 17: Unpacking
Installation Condition Characteristics Access to Convenient and reliable operation- relevant parts Unpacking Procedure Unpack the device. If the device is stored: Observe the information on storage (see Chapter 11.1, page 34). Install the device at the intended location. Remove the adhesive strips from the spool rollers. Keep all parts of the original packaging, e.g. -
Page 18: Getting Started
Procedure NOTICE Device damage may be caused by using an unsuitable AC adapter! Using third-party AC adapters that are not authorized by Sartorius may cause damage to the device. Only use Sartorius AC adapters. If no suitable AC adapter is available: Contact Sartorius Service. -
Page 19: Connecting The Power Supply
WARNING Severe injuries caused by using defective power cords! Check the power cord for damage, e.g., cracks in the insulation. If the power cord is damaged: Contact Sartorius Service. WARNING Risk of injury due to rotating spool rollers if device starts up unintentionally! Set the on/off switch to position "0."... - Page 20 Check whether the country-specific power plug matches the power connections at the setup location. If required: Contact Sartorius Service. Connect the AC adapter to the power supply. If model 16713----BO is to be used in battery operation: Fully charge the battery before starting up for the first time (for charge time, see Chapter “13.3.3 Device with Built-in Battery (Model...
-
Page 21: Operation
Operation Operation Inserting the Membrane Filter Strip Prerequisites The device is switched off. Procedure WARNING Risk of injury due to rotating spool rollers if device starts up unintentionally! Set the on/off switch to position “0.” Open the outer packaging of the membrane filter strip and place inside the box holder of the device. - Page 22 Operation Remove the holding clamps from the top and bottom spool roller. Place the transparent film over the top spool roller so that it is even and taut. Observe the guidance arrows on the housing, which indicate the direction in which the transparent film must go. Completely roll the transparent film around the spool roller.
- Page 23 Operation Place the paper over the bottom spool roller so that it is even and taut. Observe the guidance arrows on the housing, which indicate the direction in which the paper must go. Completely roll the paper around the spool roller. To do so, run the edge of the paper along the outer marking of the spool roller.
-
Page 24: Switching On The Device
Operation Switching On the Device Prerequisites The membrane filter strip is inserted. Procedure Set the on/off switch to position “I.” The power LED indicates whether the device has powered up (see table below). If manual mode is activated: The illuminated key lights up yellow. - Page 25 Operation Power-up Status of Microsart e.motion Dispenser, Model 16713----BO Indicator AC operation Battery operation LED is The battery is There is a lot of battery green fully charged. charge remaining. The battery is – flashes charging. green LED is – There is a medium yellow amount of battery...
-
Page 26: Dispensing Membrane Filters In
Operation Dispensing Membrane Filters in Manual Mode Prerequisites − The membrane filter strip is inserted. − The device is switched on. − The device is set to manual mode. − The illuminated key lights up yellow. Procedure Press the illuminated key or alternatively, engage the foot switch. -
Page 27: Dispensing Membrane Filters In
Operation Procedure To switch the operating mode: Hold down the illuminated key for longer than three seconds. If manual mode is activated: The illuminated key lights up yellow. If automatic mode is activated: The status LED lights up yellow. Dispensing Membrane Filters in Automatic Mode NOTICE Avoid unintentional expenditure of the filter! -
Page 28: Changing Membrane Filter Strips
Operation The status LED continues to flash for several seconds and further membrane filter dispensing is not possible. This prevents inadvertent dispensing being triggered when the previously dispensed membrane filter is being removed from the device. Remove the membrane filter carefully using forceps. -
Page 29: Removing Empty Membrane Filter Strips
Operation Removing Empty Membrane Filter Strips Prerequisites The device is switched off. Procedure WARNING Risk of injury due to rotating spool rollers if device starts up unintentionally! Set the on/off switch to position “0.” When the last membrane filter on the membrane filter strip has been dispensed: Remove the holding clamps from the top and bottom spool roller. -
Page 30: Cleaning
Cleaning Cleaning Cleaning Device Surfaces Prerequisites The device is switched off. NOTICE Device damage due to moisture! The device may be damaged if liquids get inside the housing. The inside of the housing must not come into contact with liquids. Procedure Disconnect the device from the power supply. -
Page 31: Faults
− Switch off the red rapidly. error. device and disconnect it from the power supply. − Reconnect the device to the power supply and switch it on. − If the fault is not 15, 41 corrected: Contact Sartorius Service. e.motion Dispenser Operating Instructions... -
Page 32: Faults On The Membrane Filter Strip
Faults Faults on the Membrane Filter Strip Fault Cause Correction Chapter, page The membrane The membrane filter − Remove the membrane filter strip is not inserted filter strip gets strip from the filter output. jammed in the correctly. − Insert the membrane filter 6.1, 21 filter output. -
Page 33: Decommissioning
Decommissioning Decommissioning Decommissioning the Device Prerequisites Operation has ended correctly. Procedure Switch off the device. Disconnect the device from the power supply. Unplug the power cord. Remove the membrane filter strip. Disconnect all accessories from the device. Clean the device (see Chapter 7, page 30). Transport 10.1 Transporting the Device Procedure... -
Page 34: Storage And Shipping
37). 11.2 Shipping-related Tasks/Returns You can send defective devices or parts back to Sartorius. Returned devices must be clean, decontaminated, and packed in their original packaging. Transport damage as well as measures for subsequent cleaning and disinfection of the device or parts by Sartorius shall be charged to sender. -
Page 35: Disposal
Disposal Disposal 12.1 Information on Decontamination The device does not contain any hazardous materials that would necessitate special disposal measures. The cultures and media (e.g. acids, bases) used during the fermen- tation processes are potentially hazardous materials that could cause biological or chemical hazards. -
Page 36: Disposal
The device has been decommissioned. Procedure Dispose of the device. Follow the disposal instructions on our website (www. sartorius.com). In Europe, dispose of old non-rechargeable and rechargeable batteries for free at special collection points. In Germany, dispose of old non-rechargeable and rechargeable batteries for free using the GRS system (www.grs-batterien.de/start.html). -
Page 37: Specifications
Specifications Specifications 13.1 Dimensions and Weight Unit Value Dimensions (L × W × H) 233 × 172 × 230 Weight Model 16713----PS Model 16713----BO 13.2 Ambient Conditions Unit Value Setup location: usual laboratory rooms m above < 3000 sea level Ambient temperature Operation °C... -
Page 38: Power Supply
No exposure to heat from heating or sunlight Pollution degree according to IEC 61010-1 13.3 Power Supply 13.3.1 AC Adapter Unit Value Type: Sartorius AC adapter, model 1000022148 Input voltage 100–240 (± 10 %) Frequency 47–63 Current consumption, max. Output voltage 15 (±... -
Page 39: Device Without Built-In Battery
Specifications 13.3.2 Device without Built-in Battery (Model 16713----PS) Unit Value Power supply: Only using Sartorius AC adapter 1000022148 Supply voltage Voltage supply tolerances –10 – +20 Input current, max. 13.3.3 Device with Built-in Battery (Model 16713----BO) Unit Value Power supply: Only using Sartorius AC adapter... -
Page 40: Accessories And Consumables
16625 14.2 Consumables This table contains an excerpt of the consumables that can be ordered. More information regarding the membrane filters from the “Microsart e.motion membrane filter” product family can be found on our website (www.sartorius.com). Product Quantity Order number... -
Page 41: Sartorius Service
Sartorius Service Sartorius Service Sartorius Service is at your disposal for queries regarding the device. For information about the service addresses, services provided or to contact a local representative, please visit the Sartorius website (www.sartorius.com). Conformity 16.1 EU Declaration of Conformity The attached Declaration of Conformity hereby confirms compliance of the device with the directives cited. - Page 42 Conformity e.motion Dispenser Operating Instructions...
-
Page 43: Fcc Supplier's Declaration Of Conformity
Connections between the device and peripherals must be made using shielded cables in order to maintain compliance with FCC radio frequency emission limits. Any modifications made to this device that are not approved by Sartorius may void the authority granted to the user by the FCC to operate this equipment. -
Page 44: Csa Certificate Of Compliance
Project: 70138284 Date Issued: 2017-05-18 Issued to: Sartorius Lab Instruments GmbH & Co. KG Otto-Brenner-Strasse 20 Goettingen, 37079 GERMANY The products listed below are eligible to bear the CSA Mark shown with adjacent indicators 'C' and 'US' for Canada and US or with adjacent indicator 'US' for US only or without either indicator for Canada only. - Page 45 Conformity Certificate: 70108651 Master Contract: 167555 Project: 70138284 Date Issued: 2017-05-18 APPLICABLE REQUIREMENTS CSA Standards: CAN/CSA-C22.2 No. 61010-1-12 Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use, Part 1: General Requirements UL Standards: UL Std. No. 61010-1 (3 Edition) - Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use - Part 1: General Requirements...
- Page 46 Conformity Supplement to Certificate of Compliance Certificate: 70108651 Master Contract: 167555 (056628_0_000) The products listed, including the latest revision described below, are eligible to be marked in accordance with the referenced Certificate. Product Certification History Project Date Description 70138284 2017-05-18 CSA c/us report update for alternate construction (enclosure frame material) on a Filter Dispenser unit, models: 6713----PS &...
- Page 47 Sartorius Lab Instruments GmbH & Co. KG Otto-Brenner-Strasse 20 37079 Goettingen, Germany Phone: +49.551.308.0 www.sartorius.com The information and figures contained in these instructions correspond to the version date specified below. Sartorius reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
