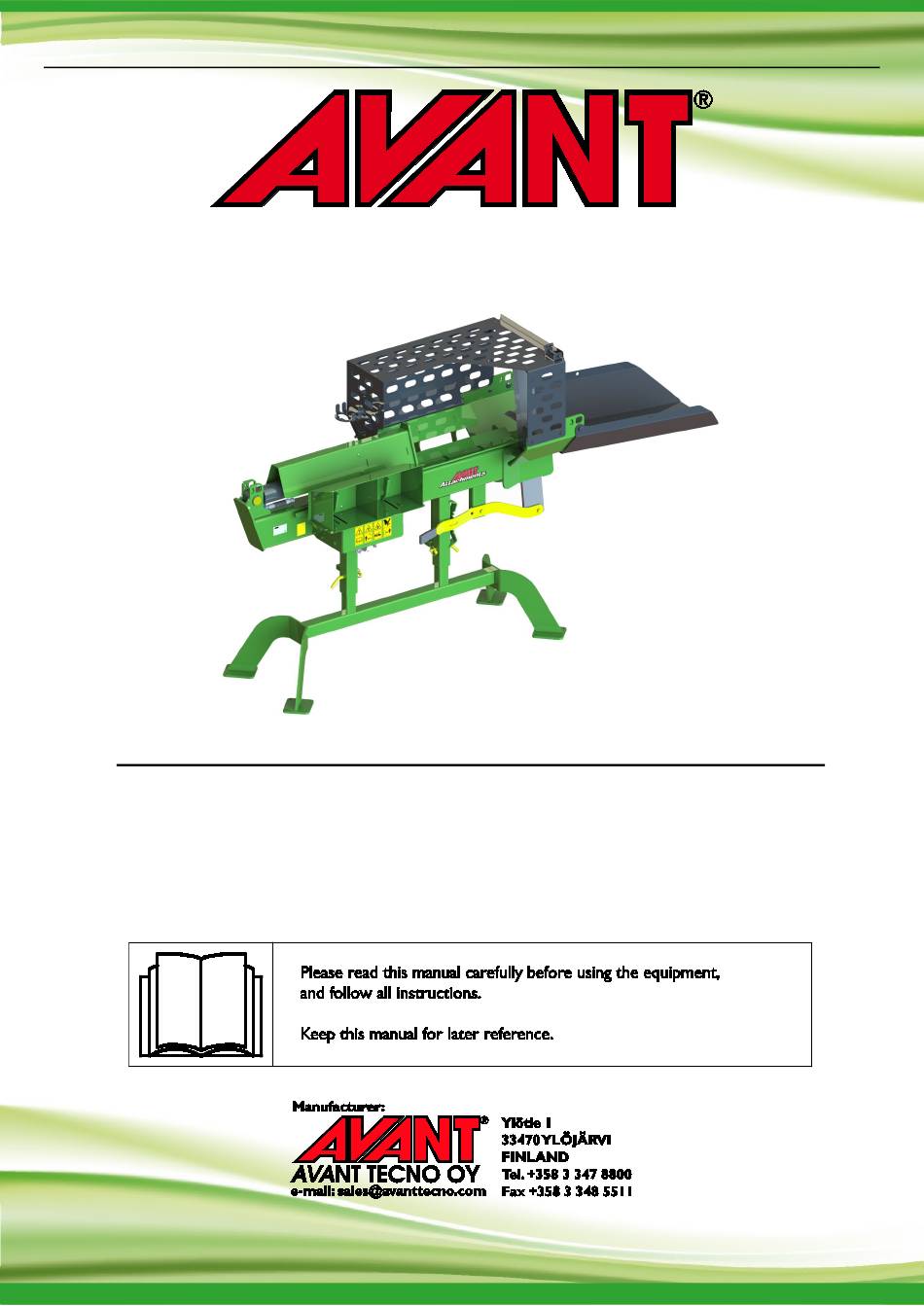

- Page 1 English Log splitter 550 2021 1 Operator's Manual for Attachment Log splitter 550 Product number A443284 www.avanttecno.com A446542 2021 1 EN 2020-...
- Page 2 Log splitter 550 2021 1...
-
Page 3: Table Of Contents
Log splitter 550 2021 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 Safe shutdown procedure ............................8 Personal protective equipment ..........................9 4. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (28) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use
Table 1. The attachment is intended to be used by one person at a time for splitting firewood. The diameter of the log can be up to 300 mm, and the maximum log length is 550 mm. The log splitter must be coupled to the boom of a loader during use. -
Page 7: Safety Instructions For Using The Attachment
7 (28) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. -
Page 8: Safe Shutdown Procedure
8 (28) Make sure that the surface can bear the total load. Also follow the correct tyre pressure settings. Shut down the loader and place the attachment to a safe position as shown in Safe stopping procedure before any cleaning, maintenance, or adjustments. WARNING ... -
Page 9: Personal Protective Equipment
9 (28) 3.2 Personal protective equipment Remember to wear proper personal protective equipment: The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ... -
Page 10: Technical Specifications
10 (28) 4. Technical specifications Table 2 – Log splitter - Specifications Product number A443284 Max. log length: 550 mm Max. log diameter: 300 mm Dimensions (L x W x H): 2404 x 603 x 1323 mm Weight: 193 kg Minimum operating temperature: -25 °C... - Page 11 Follow safe stopping procedure before going near the attachment. A449039 Stop lever A447207 Attachment identification plate Table 4 - Log splitter 550 - Main components Frame with Avant quick coupling brackets Operating controls Stop lever Frame and stand Hydraulic cylinder for splitting function...
-
Page 12: Attaching The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the locking pins of the quick coupling plate of the loader up, and turn them backwards into the slot, so that they are locked in the upper position. -
Page 13: Connecting And Disconnecting Hydraulic Hoses
5.1 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an older model Avant 300-700 series loader with the conventional quick couplers, and you want to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services. - Page 14 14 (28) Keep all fittings as clean as possible; use the protective caps on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never leave the hoses hanging on the ground; place the couplings onto the holder on the attachment.
-
Page 15: Instructions For Use
15 (28) 6. Instructions for use Practise the use of the attachment and the controls of the loader in a safe area. If you are unfamiliar with the particular loader model, it is recommended to practice its use without any attachments. Risk of crushing of hands - Keep hands away from splitting area. -
Page 16: Checks Before Use
16 (28) 6.1 Checks before use Check the splitter tool and the operating area once more before starting to work. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment. -
Page 17: Operation
17 (28) 6.2 Operation 6.2.1 Using the log splitter Setting up the log splitter 1. Choose a level working site, which can carry the load of the equipment and the logs. Clear the area from any obstacles that could cause a tripping hazard. The working area must not be slippery. - Page 18 18 (28) Risk of serious personal injuries - Prevent unexpected starting. To make sure that the attachment will not start by accident, shut down the loader engine according to safe shutdown procedure. Never leave the equipment unattended while the engine is running. WARNING Stop lever If necessary, stop the log splitter by pulling the stop...
-
Page 19: Adjusting The Stroke Length
19 (28) Pinch point hazard - Keep hands clear. Always keep your fingers away from any cracks that open in the log during splitting. They can quickly close and pinch your fingers. WARNING Risk of burns - Keep clear of hot surfaces. The unit parts and hydraulic oil can be hotter than 80 °C. -
Page 20: Adjusting The Blade Height
20 (28) 6.2.3 Adjusting the blade height The height of the splitting wedge (1) can be adjusted to match the log diameter. It can also be set to split the log in two pieces. It may be easier to split tough wood or wood with many branches by splitting it only into two halves, so that the wood will not stick on the blade. -
Page 21: Transport Position
21 (28) 6.3 Transport position When driving with the loader, keep the log splitter lifted off the ground, as shown in the adjacent figure. Transport the log splitter carefully and note the effect of weight on the front to the stability of the loader. The unloading chute of the log splitter must be removed or folded during transportation, as shown in the adjacent figure. -
Page 22: Storing The Attachment
22 (28) 6.4 Storing the attachment Uncouple and store the attachment on level ground. The best way to store the attachment is a place where it is protected from direct sunlight, rain, and extreme temperatures. Avoid leaving the attachment laying directly on the ground. Place it on blocks of wood or on a pallet, for example. -
Page 23: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and... -
Page 24: Inspection Of Metal Structures
24 (28) 7.2 Inspection of metal structures Also the metal structures of the attachment must be inspected regularly. Check visually for damages and inspect the quick attach brackets and their surrounding area carefully. The attachment must not be used if it is deformed, cracked, or torn. -
Page 25: Warranty Terms
25 (28) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 26 SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Hydraulitoiminen puunhalkaisukone; Avant-kuormaajan työlaite Hydraulisk vedmaskin; arbetsredskap för Avant lastare A443284 Hydraulic log splitter; attachment for Avant loaders 30.4.2021 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör / Managing Director...
