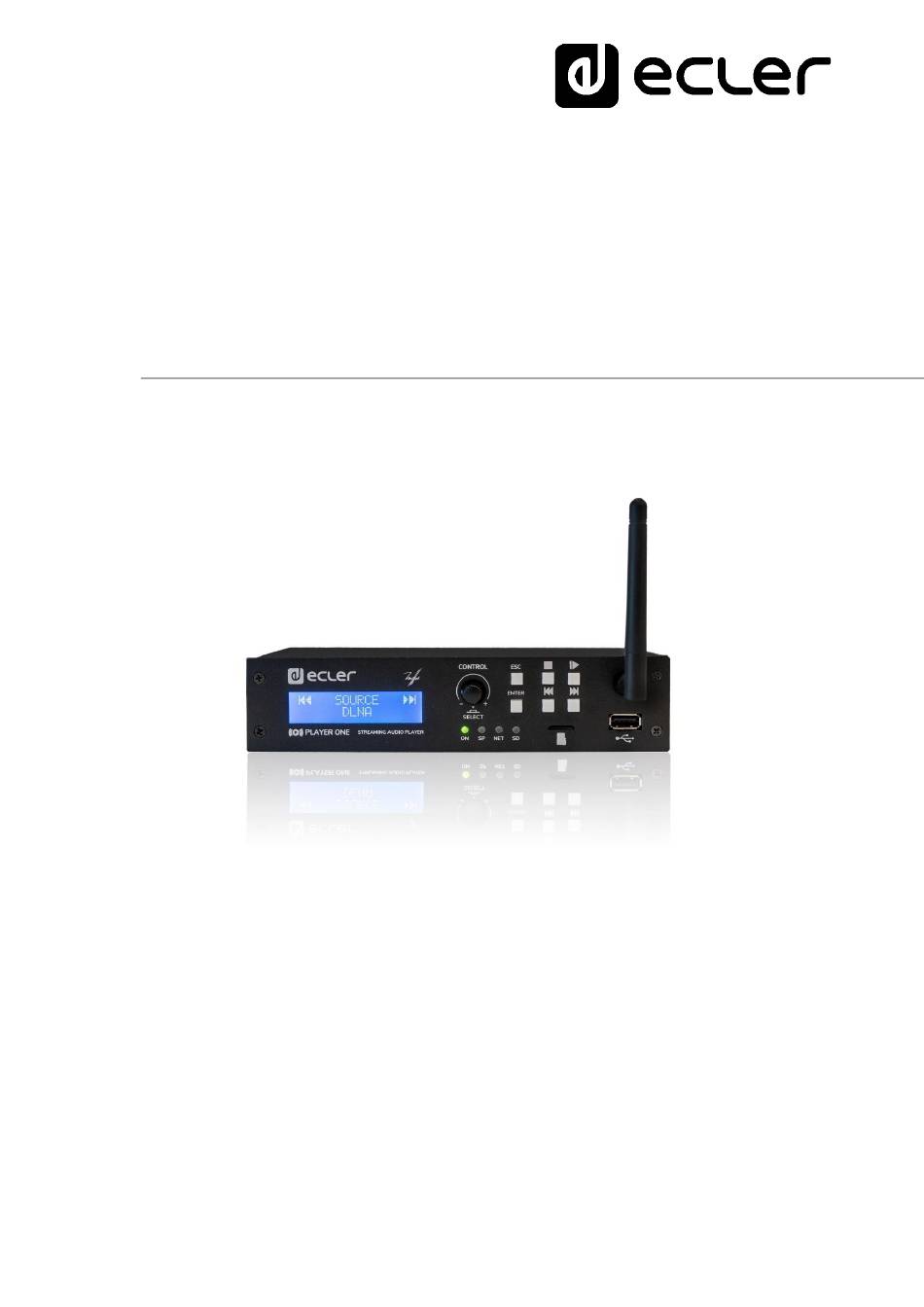

- Page 1 PLAYER ONE AUDIO PLAYER Local and Streaming Audio Player USER MANUAL v.20211006...
-
Page 2: Table Of Contents
7.4.3. Listening to an Internet radio station ............18 7.4.4. Audio streaming playback over the Internet ..........19 7.5. Configuration Menu ..................20 7.6. Lock Menu ....................21 PLAYER ONE FUNCTION LIST .................... 22 PLAYER ONE FUNCTION DIAGRAM ................. 22 10. TECHNICAL SPECIFICATIONS .................... 23... -
Page 3: Important Remark
IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “ dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 5: Important Note
NEEC AUDIO BARCELONA, S.L. accepts no liability for any damage that may be caused to people, animal or objects due to failure to comply with the warnings above. IMPORTANT NOTE Thank you for choosing our Ecler PLAYER ONE multimedia player! VERY IMPORTANT It is... -
Page 6: Introduction
INTRODUCTION PLAYER ONE is a compact stereo audio player able to play music content from local storage devices (USB/ MICRO SD), Internet streaming services (online radios, etc.) and digital media exchange (DLNA, AirPlay) with the following main features: Main features: •... -
Page 7: Installation And Connections
INSTALLATION AND CONNECTIONS 5.1. Location, set up and ventilation The PLAYER ONE has been specially designed to be used both as a desktop player and a 19" rackmount unit, occupying half a rack space (with 1UHRMKIT, optional mounting kit for standard rack cabinets). -
Page 8: Wi-Fi Interface For Configuration And Internet Connection
This connection provides access to Internet contents, and to the configuration of the unit using a web browser on the computer, which points to the IP address of the PLAYER ONE, showing the web application embedded in the unit. Refer to the PLAYER ONE &... -
Page 9: Gpi Remote Control Ports
5.6. GPI remote control ports The PLAYER ONE has 2 GPI control inputs on its rear panel. These inputs can be connected to an external physical device (e.g. a contact closure) and associated with an PLAYER ONE function: • Load and play previously configured audio content •... -
Page 10: Front Panel

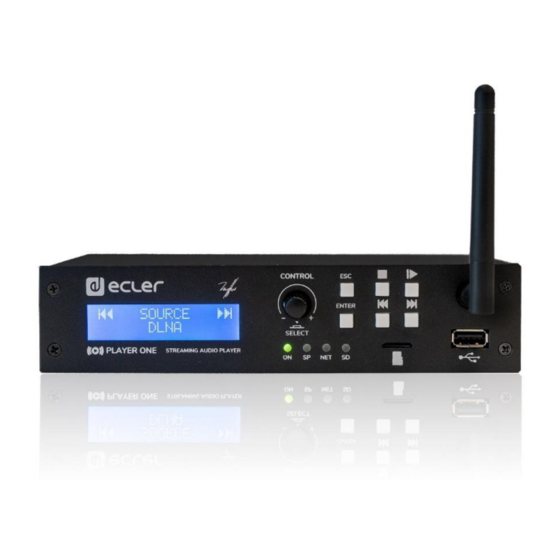

FRONT PANEL The PLAYER ONE front panel provides the following elements: • MICRO SD/MICRO SDHC slot: for local audio content playback. Up to 2TB. FAT16/32 format. • USB 2.0 port: for local audio content playback. Up to 2TB. FAT16/32 and NTFS format. -
Page 11: Startup
STARTUP The PLAYER ONE has been designed to be used as a local media player, without prior configuration. However, Ecler recommends configuring PLAYER ONE with your web application to enjoy its full functionality. Please refer to the PLAYER ONE & PLAYER ZERO web GUI application manual to know all the functionality it offers. - Page 12 Be sure to save a backup copy of the device settings before executing this action. They can also be done via the FD/FS button on the rear panel of the PLAYER ONE: • Factory Default: Press and hold the FD/FS button on the rear panel for 10 seconds with a small pin or paper clip while the unit is powered on.
-
Page 13: Main Menu
7.2. Main menu The PLAYER ONE main menu allows you to make playback adjustments, such as selecting the audio source, loading presets, etc. The main menu is accessed by pressing the MENU key. Navigation through the various menu items is performed using the NEXT () and PREV () keys, to respectively move to the next or previous one. -
Page 14: Local Media Playback
- s o n g . m p 3 0 2 : 5 6 U S B Figure 2: PLAYER ONE playing a file from USB media... -
Page 15: Playing Files Stored On Micro Sd Memory Cards
- s o n g . m p 3 0 2 : 5 6 M M C Figure 5: PLAYER ONE playing a file from MICRO SD/MICRO SDHC card... -
Page 16: Audio Streaming Playback
LAN. First, make sure that your device and PLAYER ONE are on the same local network or are point-to-point connected. Then press the MENU key to access the main menu. In the SOURCE submenu, select the AIRPLAY source using the CONTROL &... -
Page 17: Audio Streaming Playback Via Dlna
LAN. First, make sure that your device and PLAYER ONE are on the same local network. Then press the MENU key to access the main menu. In the SOURCE submenu, select the DLNA source using the CONTROL &... -
Page 18: Listening To An Internet Radio Station
7.4.3. Listening to an Internet radio station Connect your PLAYER ONE to the Internet. You can use the Ethernet port or the Wi-Fi interface. Refer to the PLAYER ONE & PLAYER ZERO web GUI application manual information about connecting to the Internet. -
Page 19: Audio Streaming Playback Over The Internet
7.4.4. Audio streaming playback over the Internet Connect your PLAYER ONE to the Internet. You can use the Ethernet port or the Wi-Fi interface. Refer to the PLAYER ONE &... -
Page 20: Configuration Menu
ON: enables the Wi-Fi interface. Press the CONTROL & SELECT encoder to display the IP address assigned to the device. In MASTER mode this IP will be 192.168.189.1 (refer to the PLAYER ONE & PLAYER ZERO web GUI application manual for details). -
Page 21: Lock Menu
• VERSION: displays the current firmware version of the device. 7.6. Lock Menu To access the lock menu, press and hold the ESC key for approximately 10 seconds. In the LOCK MODE menu, the following options appear (same navigation as in all other menus): •... -
Page 22: Player One Function List
PLAYER ONE FUNCTION LIST LCD display CONTROL & SELECT digital encoder ON LED power indicator SP LED signal present indicator NET LED network traffic indicator SD LED Micro SD source operation indicator ESC key ENTER key STOP key PLAY/PAUSE key... -
Page 23: Technical Specifications
TECHNICAL SPECIFICATIONS DIGITAL ENGINE Processor MIPS Single Core 64bits 580MHz AUDIO CONVERTERS Sampling rate 48kHz Resolution 16bit Bit rate 32~320kbps Frequency response 5Hz - 24kHz (-3dB) MEDIA PLAYER Local storage (USB & microSD), Internet Audio sources radio, AirPlay, DLNA Dynamic range From -80 dB to 0 dB THD + Noise <... - Page 24 65354 playable folders Files analysis 65354 playable folders within each folder 65354 playable files within each folder Folder hierarchy Up to 8 containing the root directory UNICODE Up to 100 folders, 100 files by folder Sorting (Folders/files over 100 sorted in the FAT order) ELECTRICAL Power supply...
- Page 25 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
