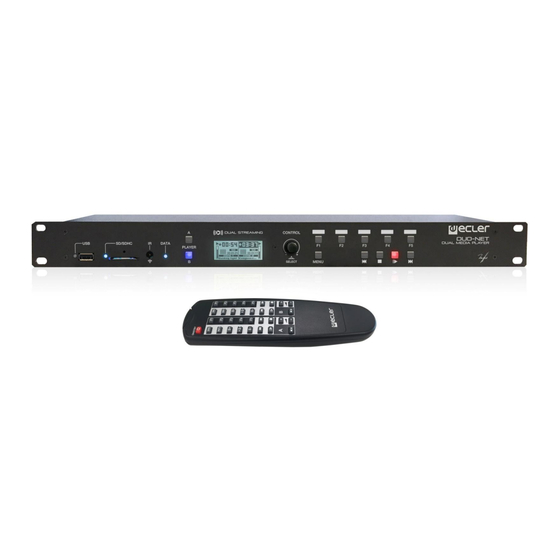

- Page 1 DUO-NET PLAYER SOUND SOURCES Dual Streaming & Media Audio Player USER MANUAL v.20190527...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................ 5 INTRODUCTION ........................5 INSTALLATION ........................6 5.1. Location, set up, ventilation ....................6 5.2. AC connection and powering on ................... 7 5.3. Audio output connections ......................7 5.4. -
Page 3: Important Remark
1. IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
-
Page 5: Important Note
3. IMPORTANT NOTE Thank you for choosing our Ecler DUO-NET PLAYER Dual Streaming & Media Audio Player! VERY IMPORTANT It is to carefully read this manual and to fully understand its contents before any connection in order to maximize your use and get the best performance from this equipment. -
Page 6: Installation
STOP, PLAY/PAUSE, NEXT/FF and PREV/RW. o 5 backlit keys with programmable function: F1, F2, F3, F4 and F5. To setup the DUO-NET PLAYER, you have to use the EclerNet Manager application. See the EclerNet Manager Application manual for more information. -
Page 7: Ac Connection And Powering On
The power cable must not be mixed with the audio cables, as this could cause buzzing. 5.3. Audio output connections The DUO-NET PLAYER features 2 separate balanced stereo outputs (one for each player) on the rear panel. Signal outputs use 3-position screw terminal blocks (Euroblocks). The wiring is as follows: ... -
Page 8: Ethernet Port For Programming And Control
5.5. GPI remote control ports The rear panel of the DUO-NET PLAYER offers 4 GPI inputs (14) for 0-10VDC continuous voltage control. Each of these inputs can be connected to an external physical device (contact closure, switch, sensor, etc.) and assigned to a DUO-NET PLAYER function, such as: ... -
Page 9: Rs-232 Remote Control Port
The rear panel RS-232 port allows serial communication between an external device and a DUO-NET PLAYER unit. This connection uses the TP-NET protocol syntax so the external device can obtain the value of any of the DUO-NET PLAYER parameters (using "GET"... -
Page 10: Startup
Application. See the EclerNet Manager application manual for more information. 7. STARTUP The DUO-NET PLAYER has been designed so that it can be used as a local media player, without additional software. However, to use it to its full potential, it has to be integrated into an EclerNet device network. -
Page 11: Playing Files Stored On Sd/Sdhc Memory Cards
You can check the audio output from the selected player by looking at the level meter (vertical bar) on the display of the corresponding player. DUO-NET PLAYER playing a file in PLAYER A Turning the CONTROL digital encoder (8) adjusts the volume of the selected player. -
Page 12: Playing Networked (Lan) Files
7.2. Playing networked (LAN) files The DUO-NET PLAYER can playback audio files from remote devices on the same local network (LAN). To access these files, you must previously create one or more playlists using EclerNet Manager Application. Please refer to the EclerNet Manager manual for more information on how to create playlists on networked devices. -
Page 13: Main Menu
The DUO-NET PLAYER locally stores Internet or local network addresses. It never stores audio content. 7.4. Main menu Press the MENU key from the screen with information concerning both players (A and B) to access the main menu. The following sub-menus appear in this menu: ... -
Page 14: Player Menu
7.5. Player menu Pressing the PLAYER (A or B) key displays detailed information about current playback. If you then press the MENU key, you access the PLAYER MENU. It consists of the following sub-menus: LOAD PLAYLIST: to load one of the 99 playlists (preset with EclerNet Manager). By default, playlists 01 and 02 respectively correspond to USB port and SD slot, but can be reconfigured with EclerNet Manager software. -
Page 15: Remote Control
8. REMOTE CONTROL The DUO-NET PLAYER includes an IR (infrared) remote control to facilitate user management. This remote control is divided into 2 sections: PLAYER A and PLAYER B, both being identical, except that they control their respective player. ON/STBY: turns off the display. All LEDs and keys also turn off except the selected PLAYER (A or B). -
Page 16: Function List
10. FUNCTION LIST 1. USB port with LED indicator showing data activity 2. SD/SDHC card slot with LED indicator showing data activity 3. IR receiver 4. DATA LED indicating network traffic 5. PLAYER A key 6. PLAYER B key 7. LCD display 8. -
Page 17: Function Diagram
11. FUNCTION DIAGRAM... -
Page 18: Technical Characteristics
12. TECHNICAL CHARACTERISTICS ETHERNET Connector / Speed RJ45 / 10/100Mbps AUDIO OUTPUT Nominal Output Level +6dB (balanced) / 0db (unbalanced) Max Output Level / Minimum Load +12dBV / 5k Frequency response 5Hz - 24kHz (-3dB) Balanced output header Output 4 x 3 pin terminal block / 300 impedance MEDIA PLAYER Audio DAC... -
Page 19: Block Diagram
65354 playable files within each folder Folder hierarchy up to 8 containing the root directory Playable extensions mp3, wav, ogg, aac, flac Sorting in alphabetical order up to 100 folders UNICODE up to 100 files by folder folders/files over 100 sorted in the FAT order) ACCESSORIES SUPPLIED Main power cable, IR remote control unit, Remote... - Page 20 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
