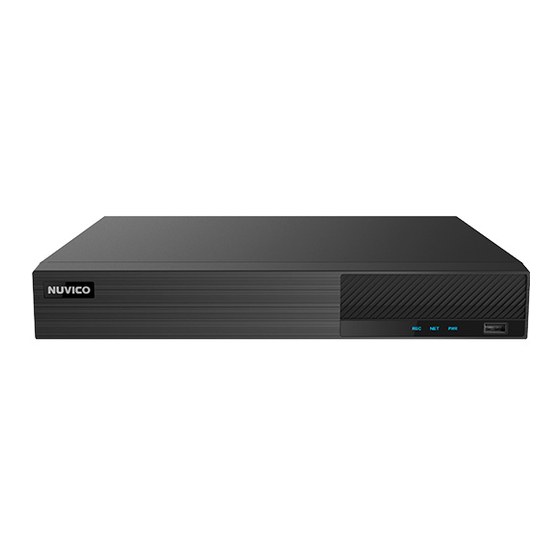

Nuvico Xcel TN-P800AI-8P Quick Start Manual

TN-P800AI-8P NVR
Quick Start Guide
1. Notes
● Please read these instruction carefully for correct use of the product and
preserve it for reference purposes.
● All the examples and pictures used here are for reference only.
● The contents of this manual are subject to change without notice.
● This device should be operated only from the type of power source indicated
on the marking label. The voltage of the power must be verified before using the
same.
2. Packing Check
Please check the device and the accessories after getting the device. If there
are any damages, shortages or defects, please contact your dealer immediately.
3. HDD Installation
This series of the product supports 2 SATA hard drives. Please make sure that
the device is powered off before the installation. The pictures of the installation are
only for reference.
① Loosen the screws to open the cover.
② Screw the screws into the holes of HDD, but not tighten them.
③ Put the HDDs onto the bottom of the device.
④ Turn over the machine and secure the HDD with the screws.
⑤ Connect the power and data cables.
⑥ Install back the cover and secure it with the screws.
Tips: Please check the inside structure of the device and make sure the cables
connected well before installing the cover back. Please format the HDD
before using.
4. Rear Panel Instruction
The interfaces of the rear panel are for reference only.
Name Description
Connector for power input
DC48V
PoE network ports; connect to PoE IP camera
PoE Ports
LAN Network port
VGA Connect to monitor
Connect to high definition display device
HDMI
Connect to USB storage device or USB mouse
USB
AUDIO OUT Audio output
Audio input
AUDIO IN
P/Z P/Z; Connector for PTZ
K/B K/B; Connector for keyboard
ALARM IN Alarm input; connectors for sensors
ALARM OUT Alarm inutput;
GND Ground
5 Startup & Shutdown
►Startup
① Connect the monitor and the power.
② The device will boot and the power indicator will display blue.
③ A wizard window will pop up.
►Shutdown
Go to "Main Menu" and then select "Shutdown" icon. This will bring up a
shutdown window. The device will shut down by clicking "OK" button. Then
disconnect the power.
6. Login
Login
Username admin
Enter Password
Password
Display Password Log In Automatically
Edit ecurity S Q uestion Login
The default username is admin and the default password is 123456. You must
configure the wizard if you start the NVR for the first time and you may change
the password when you configure the wizard for the first time. You can skip
the settings of wizard next time. Click "Start" and select "Login". This will take
you to see a login box. Enter default username and password you set and you can
see the live image.
7. Network Configuration & Add IP Camera
After you finish adding IP cameras, you can see the live images through the
monitor of the NVR. The following will mainly introduce how to add the IP
cameras via LAN/WAN.
►LAN
① Set the network of the NVR. Go to Start → Settings → Network →TCP/IP.
Enter IP address, subnet mask, gateway, etc. If using DHCP, please enable DHCP
in both the NVR and the router.
② Go to Start → Settings → Network → Port. Enter HTTP port (the default
value is 80), server port (the default port is 6036).
③ The internal ethernet port is the port which connects all the PoE ports with
the NVR system. The PoE ports are available if the internal ethernet port is
online; if it is offline, all the PoE ports will be unavailable. The IP address and
subnet mask of the internal ethernet port can be changed to make the port in the
same network segment with the IP cameras which directly connect to the PoE
ports of the NVR.
IP Address Settings
Ethernet Port 1 ( Online )
Obtain an IPv4 address automatically
Address
Subnet Mask
Gateway
MTU
Obtain DNS automatically
Preferred DNS
Alternate DNS
④ Go to Start → S ettings → C amera → Add Camera. The NVR will
automatically refresh the cameras searched. The IP camera that supports the
Onvif protocol may be added manually. If the IP camera searched is not in the
same local network as the NVR, you should select the device and click
modify the IP address.
Quickly Add
No.
1
2
3
Selected: 1/3
Cancel Remain Bandwidth: 108 / 120 Mb
Internal Ethernet Port ( Online )
Obtain an IPv6 address automatically
Address
192 . 168 . 1 . 2
255 . 255 . 255 . 255 Mask Length 0
192 . 168 . 1 . 1
Gateway
1500
. . .
. . .
Apply
Add Camera
Manually Add Add Recorder
Port Edit Subnet Mask Protocol Model Version
Address
Nuvico Xcel NCT-5ML-B2
192.168.1.20 80 255.255.255.0 3.4.2
Nuvico Xcel NCT-5ML-E2 3.4.2
192.168.1.38 80 255.255.255.0
Nuvico Xcel NCT-5ML-E2
192.168.2.45 80 255.255.255.0
3.4.2
Default Password Add Cancel
to
