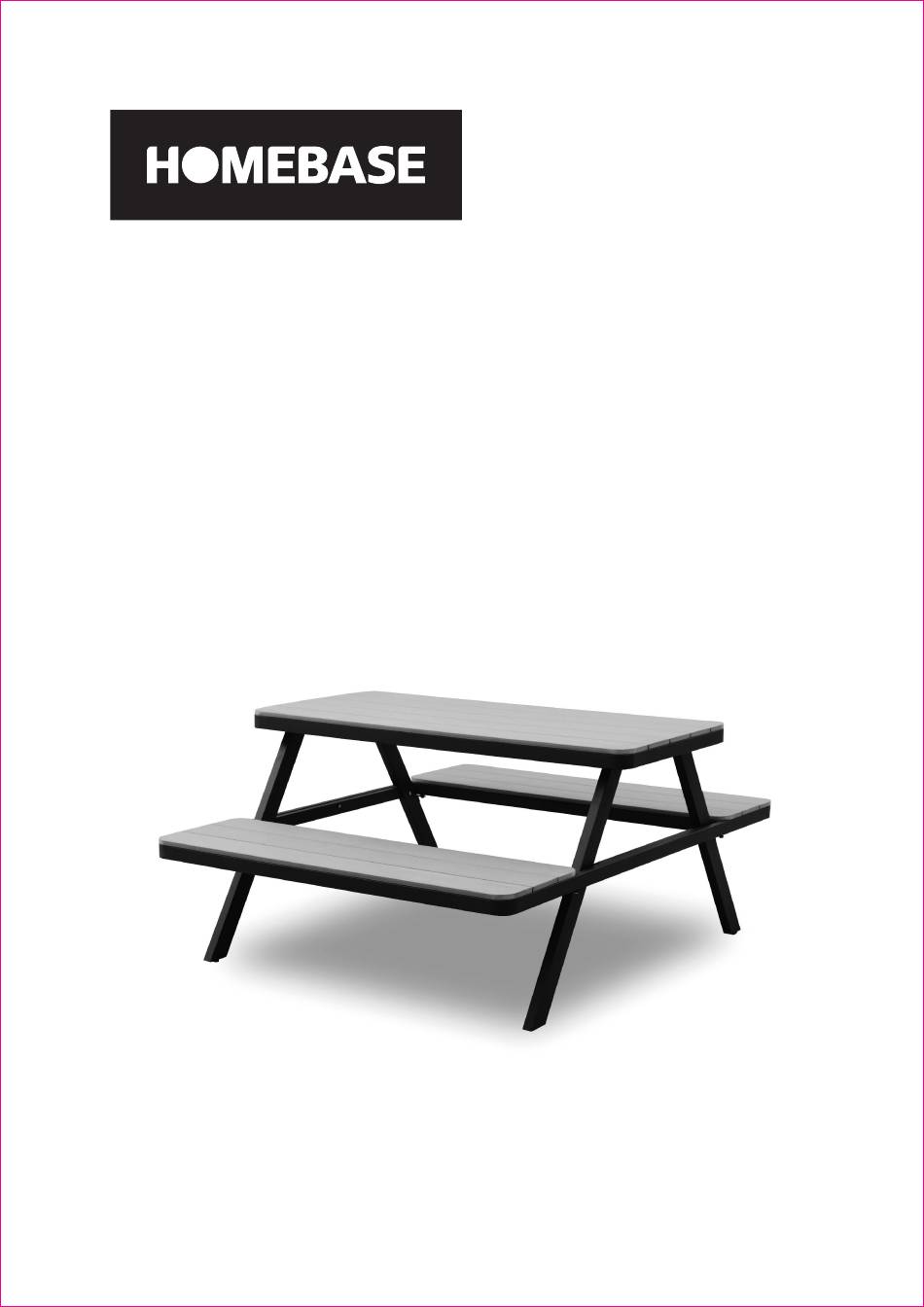

PICNIC BENCH
Powder-coated steel frame
Slat polywood top
Stable and easy to maintain
H71.4 x W157.6 x D132cm
INSTRUCTION MANUAL
IMPORTANT: Please read these instructions before using the product and retain for future use.
HHGL Limited, MK9 1BA; HHGL (ROI) Limited, D02 X576
Advertisement
Table of Contents
Related Manuals for Homebase PICNIC BENCH 580904
Summary of Contents for Homebase PICNIC BENCH 580904
- Page 1 PICNIC BENCH Powder-coated steel frame Slat polywood top Stable and easy to maintain H71.4 x W157.6 x D132cm INSTRUCTION MANUAL IMPORTANT: Please read these instructions before using the product and retain for future use. HHGL Limited, MK9 1BA; HHGL (ROI) Limited, D02 X576...
- Page 2 SAFETY & CARE ADVICE Please read these instructions fully before starting assembly. • Do not strike or place heavy weight on the table top. • Do not place hot items directly onto the table top. • Check you have all the components and tools listed on page 3. •...
- Page 3 COMPONENTS – PARTS Please check you have all components listed below. If you have any missing or damaged components, please contact your local store. 1. Table top x 1 2. Seat base x 1 3. Leg frames x 2 COMPONENTS – FITTINGS Please check you have all fittings listed below.
- Page 4 ASSEMBLY INSTRUCTIONS Step 1 Attach leg frame (3) to the seat base (2), using screw (D), washer (E) and spring washer (G) for the leg part. Use screw (C), washer (E) and spring washer (G) for the middle support slat. Hand tighten the screws. Repeat this process for the other leg frame (3).
- Page 5 Step 3 Attach leg frame (3) to the table top (1), using screw (A), washer (E) and spring washer (G). All screws can now be fully tightened Note: Be careful not to over tighten. Step 4 Cover all screw heads with caps (F). Keep this page with these instructions for future reference.
- Page 6 Step 5 Turn over the picnic bench. Your bench is now ready to use. ASSEMBLY COMPLETE Keep this page with these instructions for future reference.
