Removal of Electrical Box / PCB
Step

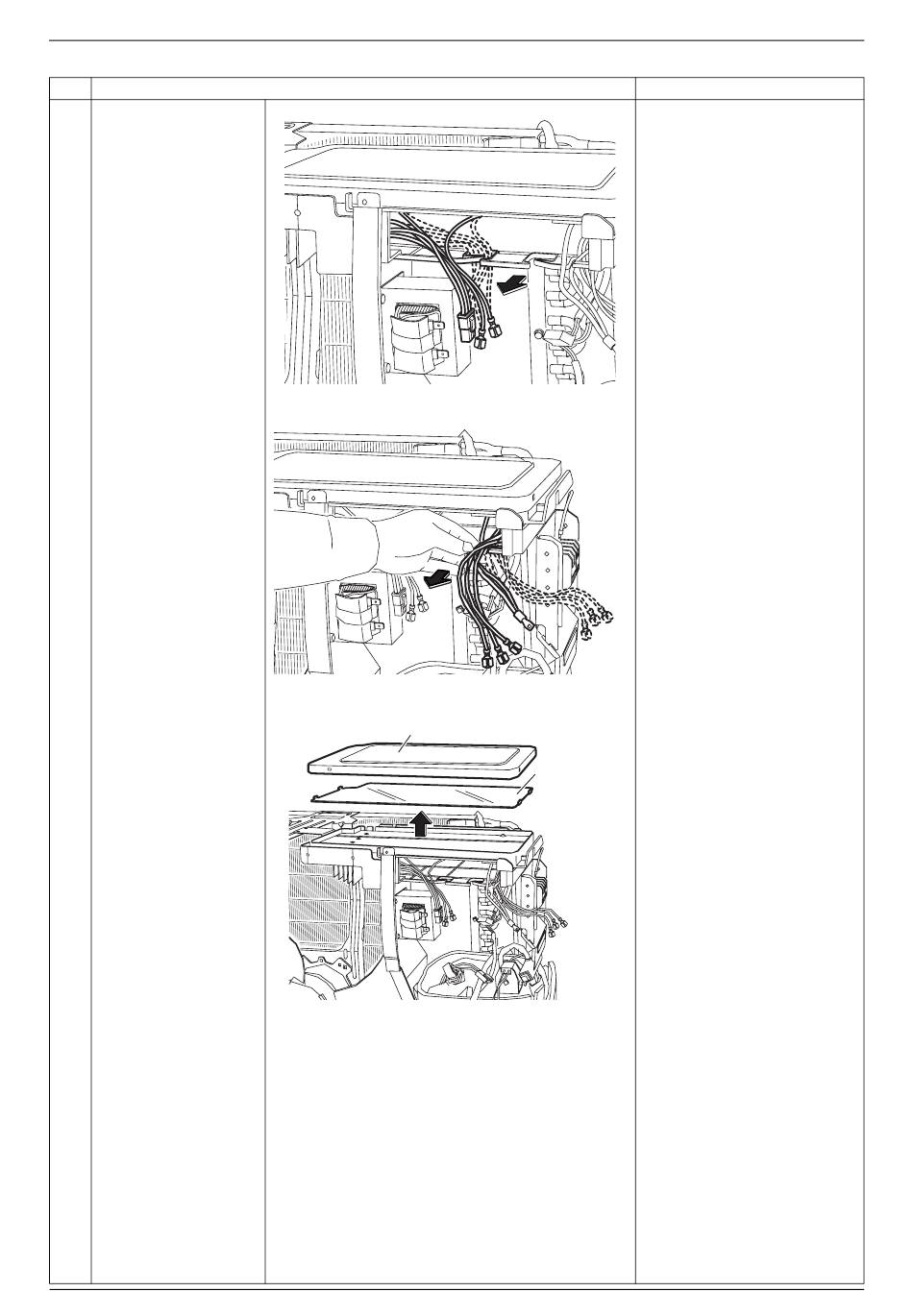

18 Release the harnesses
of the relay connector
and the reactor from the
groove.
Release the lead wires
19
of the power supply and
the earth wire from the
groove.
20 Remove the electrical
box cover and
insulation sheet.
10
Procedure
Electrical box cover
(R14510)
(R14581)
Insulation
sheet
(R14511)
Si001161
Points
Removal Procedure
