Summary of Contents for Uniden iGO CAM 90

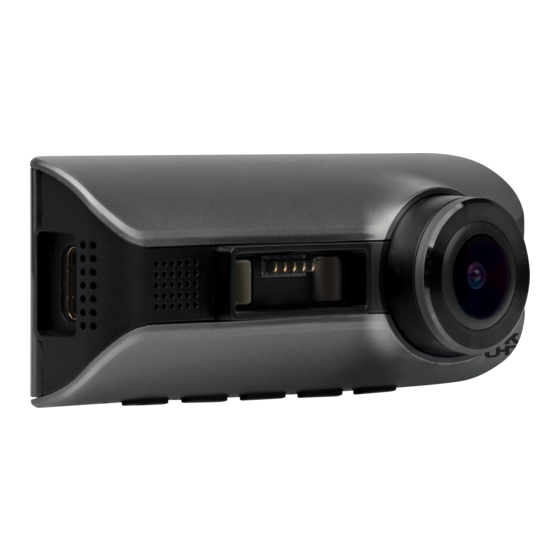

- Page 1 CAM 90/90R Accident CAM Vehicle Recorder For more exciting new products please visit our website: Australia: www.uniden.com.au...
-
Page 2: Important Safety Instructions
Important Safety Instructions Uniden does not represent this product to be waterproof. Do not expose this product to Rain or Moisture. NOTE This product is intended for use in a motor vehicle. Don’t install the device where it will block the driver’s view of the road (including the mirrors!) or the deployment of the airbag. -
Page 3: Table Of Contents
Power Off ......................10 Record Mode .......................11 Menu Settings ....................12 Photo Mode ....................... 16 Playback Mode ....................16 Uniden Player ..................... 17 Using the App .....................18 Troubleshooting ....................20 Specification ....................... 21 Warranty ................22 UNIDEN iGO CAM 90/90R Vehicle Recorder... -
Page 4: What's In The Box
What’s In The Box Make Sure These Items Arrived in the Box iGo Cam 90/90R includes iGO CAM 90/90R with GPS Magnetic Mount • Car Cigarette Charger • Slide Cover with 3M Sticker • Windscreen Protective Film iGo Cam 90R includes... -
Page 5: Controls & Indicators
Controls & Indicators Front Camera Rear Camera UNIDEN iGO CAM 90/90R Vehicle Recorder... - Page 6 Insert DC car charger mini USB cable. Rear Camera Connect the rear camera connector cable (not included with Port iGo Cam 90/90R) . Please check label. Micro SD Insert micro SD Card (up to 128GB min Class U3) Card Slot Internal Cam- Connect the internal/cabin camera.
-
Page 7: Installation
6. Adjust the viewing angle of the camera. We recommend the camera should point slightly downwards ~10° below eye level. Do not install the product in a location where it can obstruct the driver’s field of vision. NOTE UNIDEN iGO CAM 90/90R Vehicle Recorder... -
Page 8: Installing The Rear Camera
15~20 minutes to get GPS signal, and after that, it normally takes about 3 minutes. Sticker mount is difficult to remove after it is installed and will not stick well on a curved/textured or wet surface. NOTE UNIDEN iGO CAM 90/90R Vehicle Recorder... -
Page 9: Operation
It is important to format the micro SD card before using it, so as to avoid any damage to the files created on iGO CAM 90/90R. Uniden only recommends using good quality MLC/SLC micro SD cards. -
Page 10: Power Information
If you wish to switch the device back on, press and hold the power button for at least 2 seconds. Only use the DC car adaptor that comes with your device. Any other adaptor might damage the device. NOTE UNIDEN iGO CAM 90/90R Vehicle Recorder... -
Page 11: Record Mode
SD card when the device is recording causes the NOTE device to shutdown and in worst case malfunction. Using the iGO CAM 90/90R you can record videos. Press and hold the M button to switch between Record, Picture and Playback modes. -
Page 12: Menu Settings
The options available are Off, 5 fps, 2 fps and 1 fps. For example, if you opt for 1 fps, then an image is captured every 1 second. The captured images are then stitched together to playback in 30 fps. UNIDEN iGO CAM 90/90R Vehicle Recorder... - Page 13 This mode turns on the unit if it detects impact and will record for 60 seconds. Parking Monitor: Once the ACC current is cut off, the unit will start time-lapse recording (1 fps and playback in 30fps). UNIDEN iGO CAM 90/90R Vehicle Recorder...
- Page 14 Format SD Use this option to format the SD card. (All Card files will be permanently erased.) Storage Indicates the capacity of the inserted micro Information SD card. UNIDEN iGO CAM 90/90R Vehicle Recorder...
- Page 15 Control commands to operate the camera Voice List of commands recognised by the camera. Command Switching WiFi On/Off: “Uniden, Turn On WiFi” / “Uniden, Turn Off WiFi” Turn the display On/Off: “Uniden, Open Screen” / “Uniden, Turn Off Display” Settings Take a snapshot: “Uniden, Take picture”...
-
Page 16: Photo Mode
During video playback pressing the UP or DOWN keys to select the options for. Press OK button to confirm selection. To return to Record Mode, press and hold the M button at the folder selection page. Press OK to start recording. NOTE UNIDEN iGO CAM 90/90R Vehicle Recorder... -
Page 17: Uniden Player
Uniden Player Uniden Player allows you to view the recordings on the iGO CAM 90/90R and trace them on a map. The software is supported on Windows 7, Windows 8 and Windows 10. Installing Uniden Player Download the Uniden Player from the Uniden website. You may need to unzip the file using the appropriate archiving software before you can use the player. -
Page 18: Using The App
The app also allows you modify some of the device setting. The iGo CAM 90/90R WiFi access point is off by default and you will need to turn it on to allows your mobile phone to connect to it. - Page 19 If a rear camera is connected, you can switch camera views. Microphone Turn on/off the connected iGo Cam camera audio recording. Settings Modify camera settings. You can change Wi-Fi SSID and password in the Camera Settings using the app. NOTE UNIDEN iGO CAM 90/90R Vehicle Recorder...
-
Page 20: Troubleshooting
Cool it down and try again. The recorded video Please ensure the PC is connected to internet. doesn’t show mapping information on the Uniden Player. If you still need help, visit our website or call our customer service. UNIDEN iGO CAM 90/90R Vehicle Recorder... -
Page 21: Specification
WiFi Access Point Yes (up to 10m line of sight) Storage microSD (up to 128GB), Class U3 and above Power Input 5V 2.5A Supercapacitor 5.5V 2.5F Operating Temperature -10°C ~ 60°C Storage Temperature -20°C ~ 70°C UNIDEN iGO CAM 90/90R Vehicle Recorder... -
Page 22: Warranty
(“Uniden Aust”). Terms of Warranty: Uniden Aust warrants to the original retail purchaser only that the iGO CAM 90/90R (“the Product”), will be free from defects in materials and craftsmanship for the duration of the warranty period, subject to the limitations and exclusions set out below. - Page 23 Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to Uniden. Please refer to the Uniden website for address details. You should contact Uniden regarding any compensation that may be payable for your expenses incurred in making a warranty claim.
- Page 24 © 2021 Uniden Australia Pty Limited. Printed in China V1.0...
