Halsey Taylor Contour Series Owner's Manual
Barrier-free water coolers refrigerated fountains with back panel
Hide thumbs
Also See for Contour Series:
- Owner's manual (10 pages) ,
- Owner's manual (18 pages) ,
- Owner's manual (11 pages)
Subscribe to Our Youtube Channel
Related Manuals for Halsey Taylor Contour Series
Summary of Contents for Halsey Taylor Contour Series

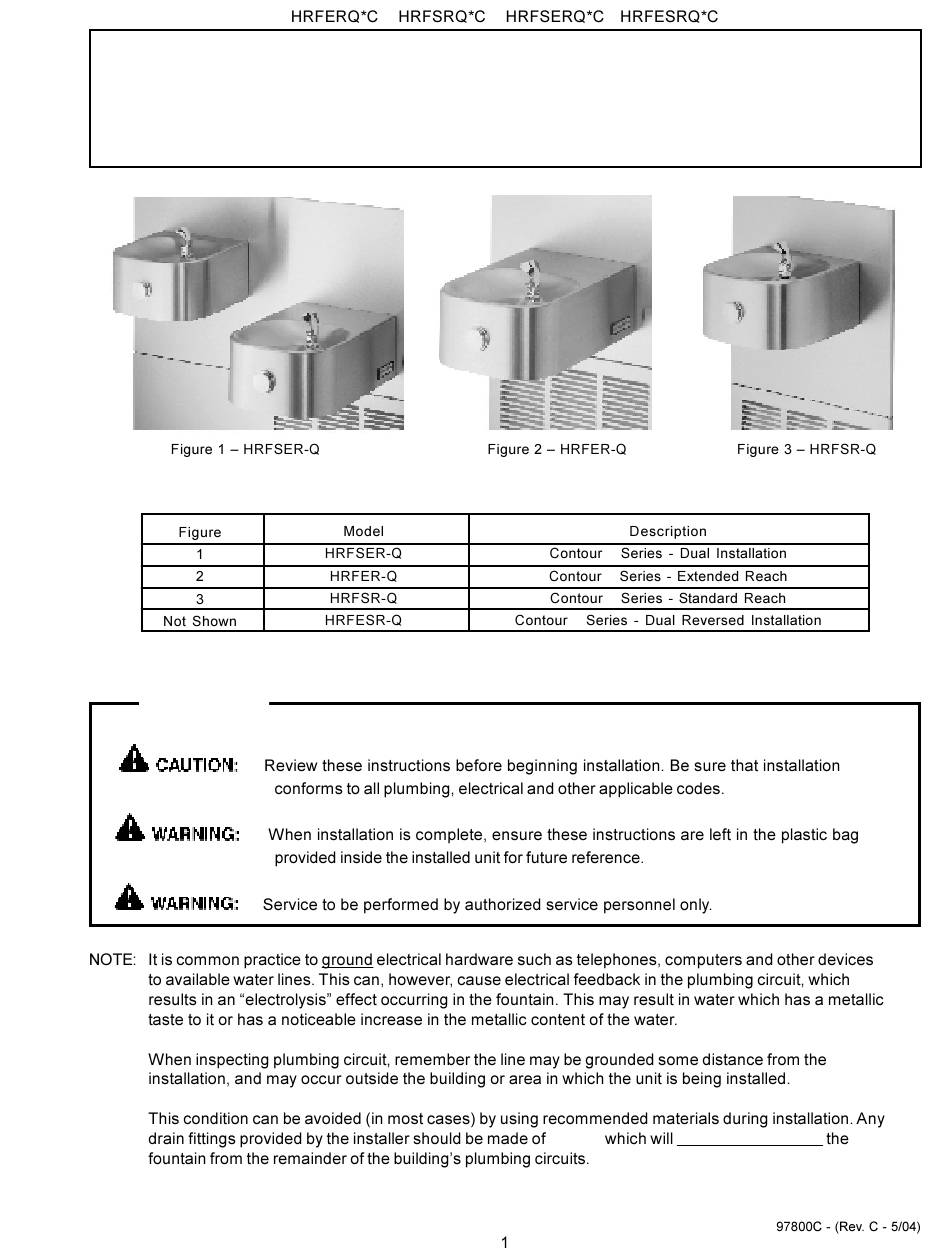

- Page 1 HALSEY TAYLOR OWNERS MANUAL Contour Series Barrier-Free Water Coolers Refrigerated Fountains with Back Panel INSTALLER plastic electronically isolate...
- Page 2 Installation Package Parts List Number Required HRFSR-Q HRFESR-Q Item Part No. Description HRFER-Q HRFSER-Q See Fig.
- Page 3 Models HRFSER-Q & HRFESR-Q Cut a rectangular wall opening Reinforce the wall opening NOTE: Install plumbing and electrical rough-ins. Remove frames and related hardware MAKE SURE FRAME CONFIGURATION MATCHES THE COOLER TO BE INSTALLED REVERSED CONFIGURATION: STANDARD CONFIGURATION...
- Page 4 Install the frame assembly squarely in wall Attach the chiller shelf support rods NOTE: MODEL HRFESR MODEL HRFSER Legend Not provided...
- Page 5 Models HRFER-Q – HRFSR-Q Cut a rectangular wall opening Reinforce the wall opening NOTE: Install plumbing and electrical rough-ins. Remove frame and related hardware...
- Page 6 Install the frame squarely in wall REQUIRED TOOLS AND MATERIALS Special Tools Item Description Quantity NOTE: Additional Materials Description Quantity MODELS HRFER/HRFSR HRFER-Q/HRFSR-Q/HRFSER-Q/HRFESR-Q INSTALLATION Install chiller: Remove and discard cardboard inner pack from between compressor and side panel. NOTE: Legend Not provided Hang the upper panel on the mounting frame hanger:...
- Page 7 Remove elbow from end of p-trap Make connection between remote chiller outlet tube and fountain(s). DO NOT SOLDER These products are designed to operate on 20-105 PSIG supply line pressure. Note: Make electrical connections to the chiller. Check stream height from bubbler. Mount lower panel.
- Page 8 TROUBLESHOOTING & MAINTENANCE Orifice Assembly: DO NOT Stream Regulator: Actuation of Quick Connect Water Fittings: 2222 CAMDEN COURT OAK BROOK, IL 60523 630.574.3500 REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640 PRINTED IN U.S.A. FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620...
