Klein Tools 56413 Instruction Manual

ENGLISH
CONTENTS

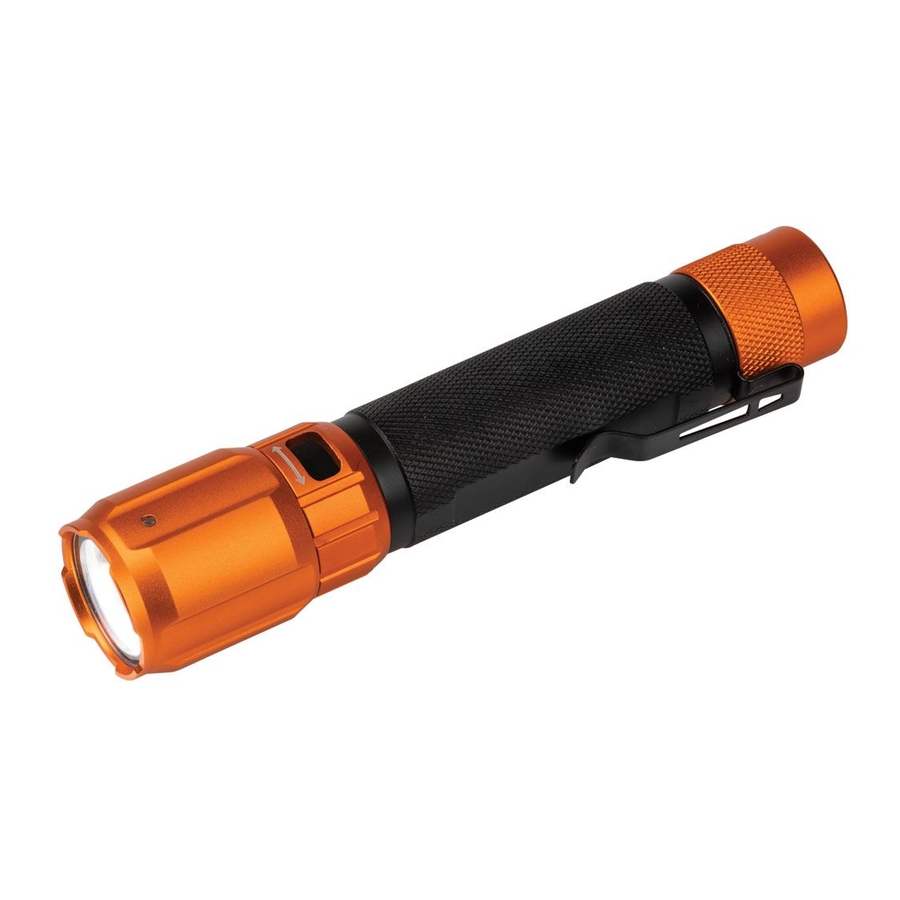

• 56413 Rechargeable 2-Color LED Flashlight
• 6" USB-C Cable
• Holster
• Instruction Manual

GENERAL SPECIFICATIONS

• Battery Cell Type: 18650
• Cell Chemistry: Lithium-Ion
• Operating/Storage Altitude: 6562 ft. (2000 m)
• Operating/Charging Temperature: 32° to 104°F (0° to 40°C)
• Storage Temperature: -22° to 140°F (-30° to 60°C)
(up to 3 months)
• Storage Humidity: <75% Relative humidity
• Relative Humidity: <85% non-condensing
• Charging Time: Charge from empty to full in 6 hours
• Shelf Life: Charge every 3 months
• Life Expectancy: Up to 500 charging cycles typical
(depending on use & care)
• Battery Capacity: 2600mAh
• Charging Requirements: 5V 0.650A, 3.25W
• Drop Protection: 6 ft. (2 m)
• Ingress Protection Rating: IP64
• Standards: REACH, RoHS, CE-EMC, CEC, NRCAN
Specifications subject to change.

WARNINGS

Read, understand, and follow these instructions to ensure
safe operation. Failure to observe these warnings can
result in risk of fire, electric shock, serious injury and/or
property damage.
• Use of a power supply, charger, or cable not recommended
or sold with this unit may result in a risk of fire or injury to
persons.
• DO NOT use the product if it is damaged or modified.
Damaged or modified batteries may exhibit unpredictable
behavior resulting in fire, explosion, or injury.
• DO NOT subject to vibration, impacts, or drops. The
housing may not show signs of damage, but internal
components may have been compromised. It is advisable
to replace the unit if any such severe events occur.
• DO NOT expose to direct sunlight, open flame, heat
sources, equipment that produces heat, or extremes in
environmental temperature.
• DO NOT expose product to rain or snow.
• Keep away from high voltage devices.
• DO NOT attempt to repair the flashlight or charging cable.
There are no user-serviceable parts.
• DO NOT immerse in water or other liquids. Avoid spilling
liquids or falling foreign objects into openings on the unit.
• Risk of fire and burns. DO NOT open, crush, heat above
manufacturer's specified maximum temperature or
incinerate.
• Properly seal the charging port cover to achieve specified
water & foreign object ingress protection. Keep seal free of
dirt, oil, sand, or other material that interferes with proper
sealing. Failure to do so can result in risk of fire or electric
shock.
• DO NOT open the charging port cover if wet or in a wet
environment. Thoroughly dry the unit and the seal around
water-resistant cover completely before opening water-
resistant cover.
• When the flashlight is in use or charging, make sure
there is adequate space to allow ventilation of internally
generated heat.
• Use safety-rated power supply or wall adapter. Never use
power supply or wall adapter that exceeds the specified
charging voltage and current.
• Route the power supply cable so that it will not to be
stepped on or pinched by other objects.
• Follow Manufacturer's Instructions.
• DO NOT attempt to insert other USB connector types into
USB-C port.
Find Quality Products Online at:
Rechargeable 2-Color LED Flashlight with Holster – Instructions
Linterna LED Recargable de 2 Colores con Funda – Instrucciones
Lampe de poche rechargeable à DEL bicolore avec étui – Instructions
FIG. A
6
GlobalTestSupply
www.
56413
1
2
3
1 LED light
2 Battery level indicator
3 USB-C charging port
4 Pocket clip
4
Do not place equipment and its accessories in the trash.
Items must be properly disposed of in accordance with
local regulations. Please see www.epa.gov or
www.erecycle.org for additional information.
5
.com
7

FEATURE DETAILS (FIG. A)

5 Power button
6 Magnet
7 USB-C charging cable

DISPOSAL / RECYCLE

Operating Instructions
PLEASE SEE REVERSE SIDE.
