Klein Tools 56411 Instructions

ENGLISH

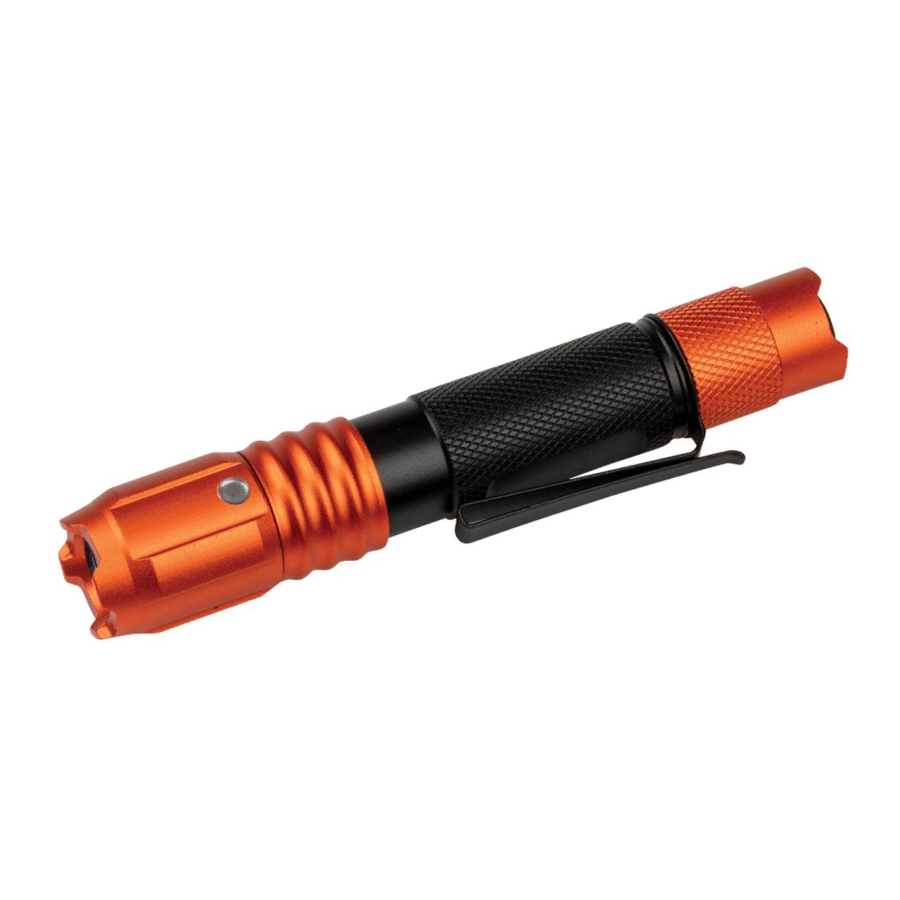

• 56411 Waterproof Pocket Flashlight
• 18" USB-C Cable
• Include pocket clip lanyard and pocket clip, installed
• Instruction Manual
• Battery Cell Type: 10440, 350 mAh
• Cell Chemistry: Lithium-Ion
• Operating/Storage Altitude: 6562 ft. (2000 m)
• Operating/Charging Temperature: 32° to 104°F
• Storage Temperature: -22° to 140°F (-30° to 60°C)
• Storage Humidity: <75% Relative humidity
• Relative Humidity: <85% non-condensing
• Charging Time: Charge from empty to full in 3 hours
• Shelf Life: Charge every 3 months
• Life Expectancy: Up to 500 charging cycles typical
• Battery Capacity: 350mAh
• Charging Requirements: Max. 5.0V DC, Min. 0.0650A
• Drop Protection: 6 ft. (2 m)
• Ingress Protection Rating: IP67
• Standards: REACH, RoHS, CE-EMC, CEC
Specifications subject to change.
Read, understand, and follow these instructions
to ensure safe operation. Failure to observe these
warnings can result in risk of fire, electric shock,
serious injury and/or property damage.
• Use of a power supply, charger, or cable not
recommended or sold with this unit may result in a
risk of fire or injury to persons.
• DO NOT use the product if it is damaged or modified.
Damaged or modified batteries may exhibit unpredictable
behavior resulting in fire, explosion or injury.
• DO NOT subject to vibration, impacts, or drops. The
housing may not show signs of damage, but internal
components may have been compromised. It is advisable
to replace the unit if any such severe events occur.
• DO NOT expose to direct sunlight, open flame, heat
sources, equipment that produces heat, or extremes
in environmental temperature.
• Keep away from high voltage devices.
• DO NOT attempt to repair the flashlight or charging
cable. There are no user-serviceable parts.
• DO NOT immerse in water or other liquids. Avoid
spilling liquids or falling foreign objects into openings
on the unit.
• Risk of fire and burns. DO NOT open, crush,
heat above manufacturer's specified maximum
temperature or incinerate.
• Properly seal the charging port cover to achieve
specified water & foreign object ingress protection.
Keep seal free of dirt, oil, sand, or other material that
interferes with proper sealing. Failure to do so can
result in risk of fire or electric shock.
• DO NOT open the charging port cover if wet or in a
wet environment. Thoroughly dry the unit and the
seal around water-resistant cover completely before
opening water-resistant cover.
• When the flashlight is in use or charging, make
sure there is adequate space to allow ventilation of
internally generated heat.
• Use safety-rated power supply or wall adapter. Never
use power supply or wall adapter that exceeds the
specified charging voltage and current.
• Route the power supply cable so that it will not to be
stepped on or pinched by other objects.
• Follow Manufacturer's Instructions.
• DO NOT attempt to insert other USB connector types
into USB-C port.
1.800.544.2843
CONTENTS
GENERAL SPECIFICATIONS
(0° to 40°C)
(up to 3 months)
(depending on use & care)
WARNINGS
www.calcert.com
15
10 20
5 25
0 30
Waterproof Pocket Flashlight - Instructions
Linterna impermeable de bolsillo - Instrucciones
Lampe de poche étanche – Instructions
FIG. A
2
3
4
5
7
FEATURE DETAILS (FIG.A)
1 Power button 5 Lanyard
2 Charging Port Cover 6 USB Charging Port
3 Battery Level Indicator 7 Micro-USB Charging Cable
4 Pocket Clip
DISPOSAL / RECYCLE
Do not place equipment and its accessories in the trash.
Items must be properly disposed of in accordance with
local regulations. Please see www.epa.gov or
www.erecycle.org for additional information.
56411
