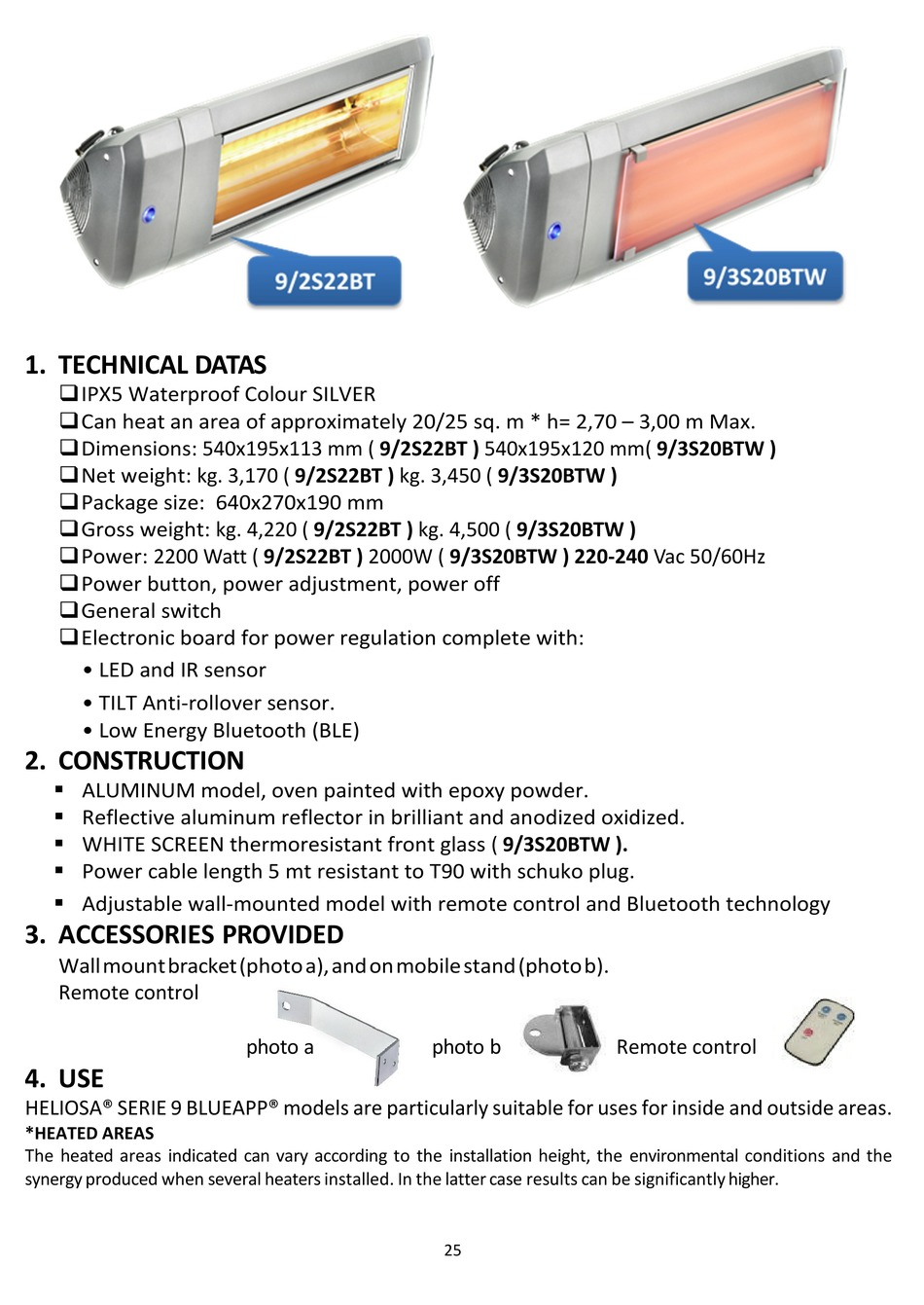

Technical Datas; Accessories Provided - Star Progetti Heliosa 9/2S22BT Operating Instructions Manual

1. TECHNICAL DATAS

IPX5 Waterproof Colour SILVER
Can heat an area of approximately 20/25 sq. m * h= 2,70 – 3,00 m Max.
Dimensions: 540x195x113 mm ( 9/2S22BT ) 540x195x120 mm( 9/3S20BTW )
Net weight: kg. 3,170 ( 9/2S22BT ) kg. 3,450 ( 9/3S20BTW )
Package size: 640x270x190 mm
Gross weight: kg. 4,220 ( 9/2S22BT ) kg. 4,500 ( 9/3S20BTW )
Power: 2200 Watt ( 9/2S22BT ) 2000W ( 9/3S20BTW ) 220-240 Vac 50/60Hz
Power button, power adjustment, power off
General switch
Electronic board for power regulation complete with:
• LED and IR sensor
• TILT Anti-rollover sensor.
• Low Energy Bluetooth (BLE)
2. CONSTRUCTION
 ALUMINUM model, oven painted with epoxy powder.
 Reflective aluminum reflector in brilliant and anodized oxidized.
 WHITE SCREEN thermoresistant front glass ( 9/3S20BTW ).
 Power cable length 5 mt resistant to T90 with schuko plug.
 Adjustable wall-mounted model with remote control and Bluetooth technology

3. ACCESSORIES PROVIDED

 Wallmountbracket(photo a), and on mobile stand (photob).
Remote control
4. USE
HELIOSA® SERIE 9 BLUEAPP® models are particularly suitable for uses for inside and outside areas.
*HEATED AREAS
The heated areas indicated can vary according to the installation height, the environmental conditions and the
synergy produced when several heaters installed. In the latter case results can be significantly higher.
photo a photo b
25
Remote control
