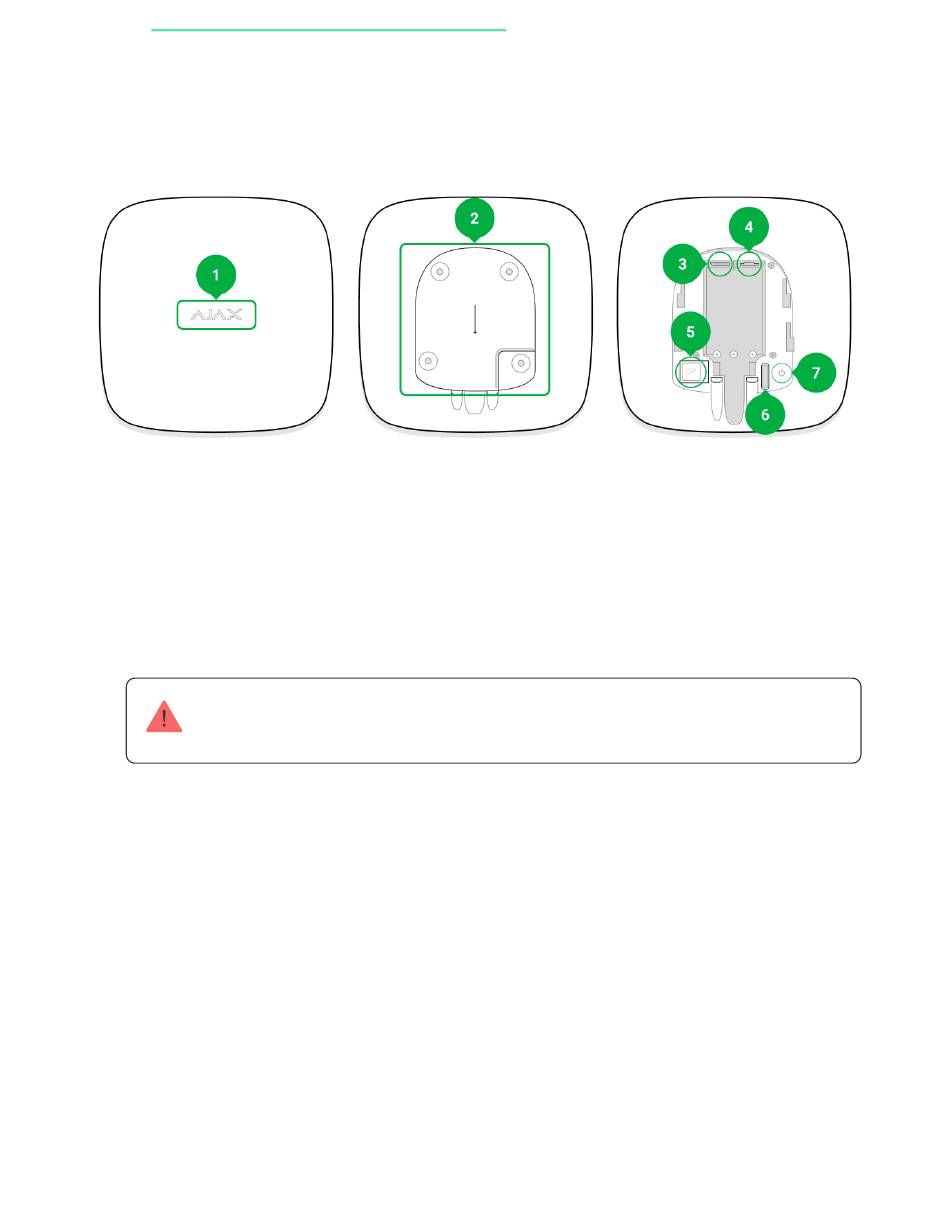

Functional elements
1. Logo with an LED indicator.
2. SmartBracket mounting panel. Slide it down with force to open.
The perforated part is necessary for tamper triggering in case of any attempt to detach
the range extender from the surface. Do not break it off.
3. Power cable connector.
4. Ethernet cable socket.
5. QR code with the identifier (service number) of the range extender.
6. Tamper button.
7. Power button.
Operating principle
