Summary of Contents for PNI L3000W

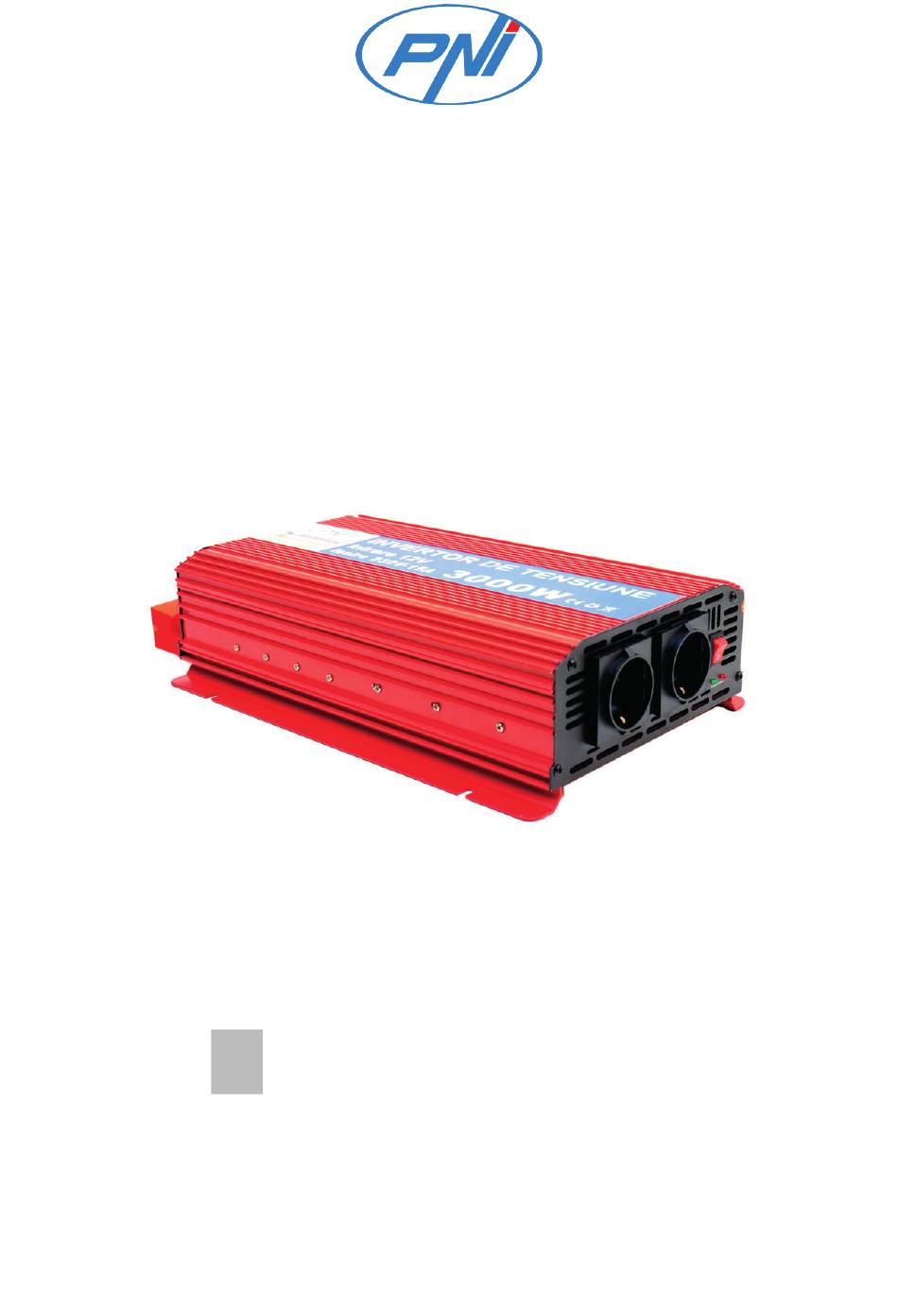

- Page 1 PNI L3000W Power inverter / Invertor de tensiune User manual ..........Manual de utilizare ........
-
Page 3: Safety Precaution

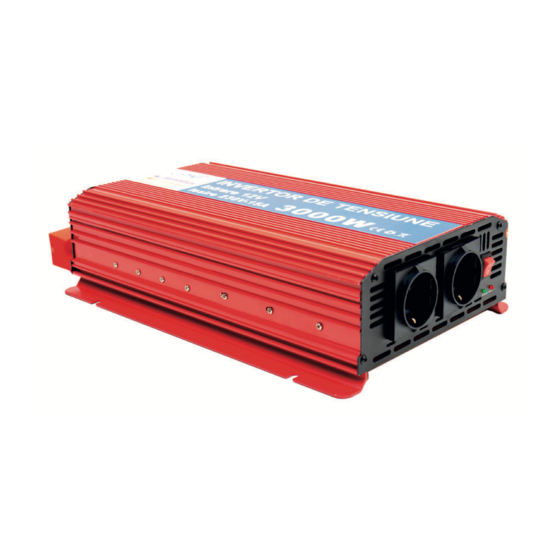

Introduction PNI L3000W inverter convert 12V DC input voltage into 230V AC 50Hz voltage. We recommend that you read this manual carefully before putting the product into operation. Warnings • Do not store the product in environments with corrosive gases, high humidity and high temperature, dust and electromagnetic interference. - Page 4 Symbols description Safety sign Antistatic sign Danger, electric shock The inverter generates high temperatures during usage. Carefully read the installation and operating instructions to avoid personal injury or damage to the equipment. Warning: We do not take responsibility for non-compliance with safety measures.
- Page 5 Inductive load and half-wave rectification load attentions! We recommend choosing an inverter with a power 2-3 times higher than the half-wave rectification or inductive load. Avoid antistatic danger We recommend that you wear antistatic wrist strap to protect sensitive parts from static discharge equipment.
-
Page 6: Inverter Installation
Inverter installation Enviroment conditions Keep the inverter in a dry and ventilated environment. Keep the inverter away from moisture, dust, heat, sunlight, volatile gas or high salinity. Caution The operating temperature range of the product is -26˚C ~ + 60˚C. Do not overload the inverter in conditions with temperatures above 40˚C. - Page 7 The correct connection of the inverter is shown in the following diagram. Caution 1. Do not use the AC output of the inverter to connect it to the 230V mains, so as not to burn the inverter. 2. Connect the loads one by one and do not exceed the declared maximum power of the inverter.
-
Page 8: About Battery
Maximum discharge current = Rated power / (storage voltagex0.85) Battery storage capacity = average discharge current discharge time Example: PNI L3000W has a rated power of 3000W, 12V input voltage: Average discharge current = 3000 / (12x0.85) = 294A If kept on for 2 hours: Battery storage capacity = 98x2 = 588 Ah Choose a battery with a capacity greater than 588 Ah. -
Page 9: Troubleshooting
Troubleshooting The inverter does not 1. The battery is defective 1. Replace the battery turn on and the Power 2. The battery 2. Connect the battery LED does not light up connection is abnormal carefully 3. The fuse is blown 3. - Page 10 The inverter does not 1. The wires between the 1. Shorten the threads or work at 100% load battery and the inverter use thicker threads. We are too long. recommend using the 2. The connection to the wires in the package. battery / inverter is weak.
-
Page 11: Technical Specifications
Technical specifications L3000W Input voltage 12V DC Output power 3000W Output voltage 230V AC Frequency 50Hz/60Hz Transfer efficiency >88% Output wave Modified sine wave undervoltage, overvoltage, overheating, overload, Protections short circuit, inversed polarity General parameters LED indicators Green, Red Active cooling Working -26°C ~ +60°C... - Page 12 User manual...
-
Page 13: Masuri De Siguranta
Introducere Invertorul PNI L3000W cu unda sinusoida modificata transforma tensiunea de intrare 12V DC in 230V AC 50Hz. Va recomandam sa cititi cu atentie acest manual inainte de punerea in functiune a produsului. Atentionari • Nu tineti produsul in medii cu gaze corozive, cu humiditate si temperatura mare, cu praf si interferente electromagnetice. - Page 14 Descriere simboluri Semn de siguranta Semn antistatic Pericol de electrocutare Invertorul genereaza temperaturi inalte in timpul functionarii. Cititi cu atentie instructiunile de montaj si utilizare, pentru e evita ranirea personala sau deteriorarea echipamentului. Atentie: Nu ne asumam raspunderea pentru nerespectarea masurilor de siguranta.
- Page 15 Atentie la sarcinile inductive si la rectificari de jumatate de unda Va recomandam sa alegeti un invertor cu o putere de 2-3 ori mai mare decat puterea consumatorilor de tip inductiv sau jumatate de unda modificata. Evitare pericol antistatic Va recomandam sa purtati bratara antistatica conectata la impamantare pentru a proteja partile sensibile ale echipamentului de descarcari statice.
- Page 16 Instalarea invertorului Conditii mediu de instalare Pastrati invertorul in mediu uscat si ventilat. Pastrati invertorul departe de umezeala, praf, caldura, lumina soarelui, gaz volatil sau cu salinitate ridicata. Precautii Intervalul de temperatura de functionare a produsului este -26˚C ~ + 60˚C . Nu solicitati invertorul la maxim, la temperaturi de peste 40˚C.
- Page 17 Conectarea corecta a invertorului este prezentata in urmatoarea schema. Atentionari 1. Nu utilizati iesirea de curent alternativ a invertorului pentru conectarea la reteaua nationala de 230V, ca sa nu ardeti invertorul. 2. Conectati consumatorii pe rand si nu depasiti puterea maxima declarata a invertorului.
- Page 18 Curent maxim de descarcare = Putere nominala/(tensiune stocarex0.85) Capacitate de stocare baterie = curent mediu de descarcarextimp de descarcare Exemplu: PNI L3000W are o putere nominala de 3000W, tensiune de intrare 12V, deci: Curent mediu de descarcare = 3000/(12x0.85)= 294A Daca se mentine 2 ore pornit: Capacitate de stocare baterie = 294x2=588 Ah Alegeti o baterie cu o capacitate mai mare de 588 Ah.
- Page 19 Probleme si solutii Invertorul nu 1. Bateria este defecta 1. Schimbati bateria porneste si LED-ul 2. Conexiunea la baterie 2. Conectati bateria cu Power nu se aprinde este anormala grija 3. Siguranta este arsa 3. Schimbati siguranta Invertorul este in Invertorul este in 1.
- Page 20 Invertorul nu 1. Firele intre baterie si 1. Scurtati firele sau functioneaza in sarcina invertor sunt prea lungi. folositi fire mai groase. 100% 2. Conectarea la baterie / Recomandam utilizarea invertor este slabita. firelor din colet. 2. Verificati si strangeti conectorii pe invertor si baterie.
-
Page 21: Specificatii Tehnice
Specificatii tehnice L3000W Tensiune de intrare 10.0-15.5V DC Putere de iesire 3000W Tensiune de iesire 230V AC Frecventa 50Hz/60Hz Eficienta de transfer >88% Unda de iesire Sinusoida modificata Scurtcircuit, suprasarcina, supraincalzire, Protectii supratensiune, subtensiune, polaritate inversata Parametri generali Indicatori led... - Page 22 Declaración UE de conformidad simplificada SC ONLINESHOP SRL declara que el Inversor de energia PNI L3000W cumple con la Directiva EMC 2014/30/EU. El texto completo de la declaración de conformidad de la UE está disponible en la siguiente dirección de Internet: https://www.mypni.eu/products/6263/download/certifications...
