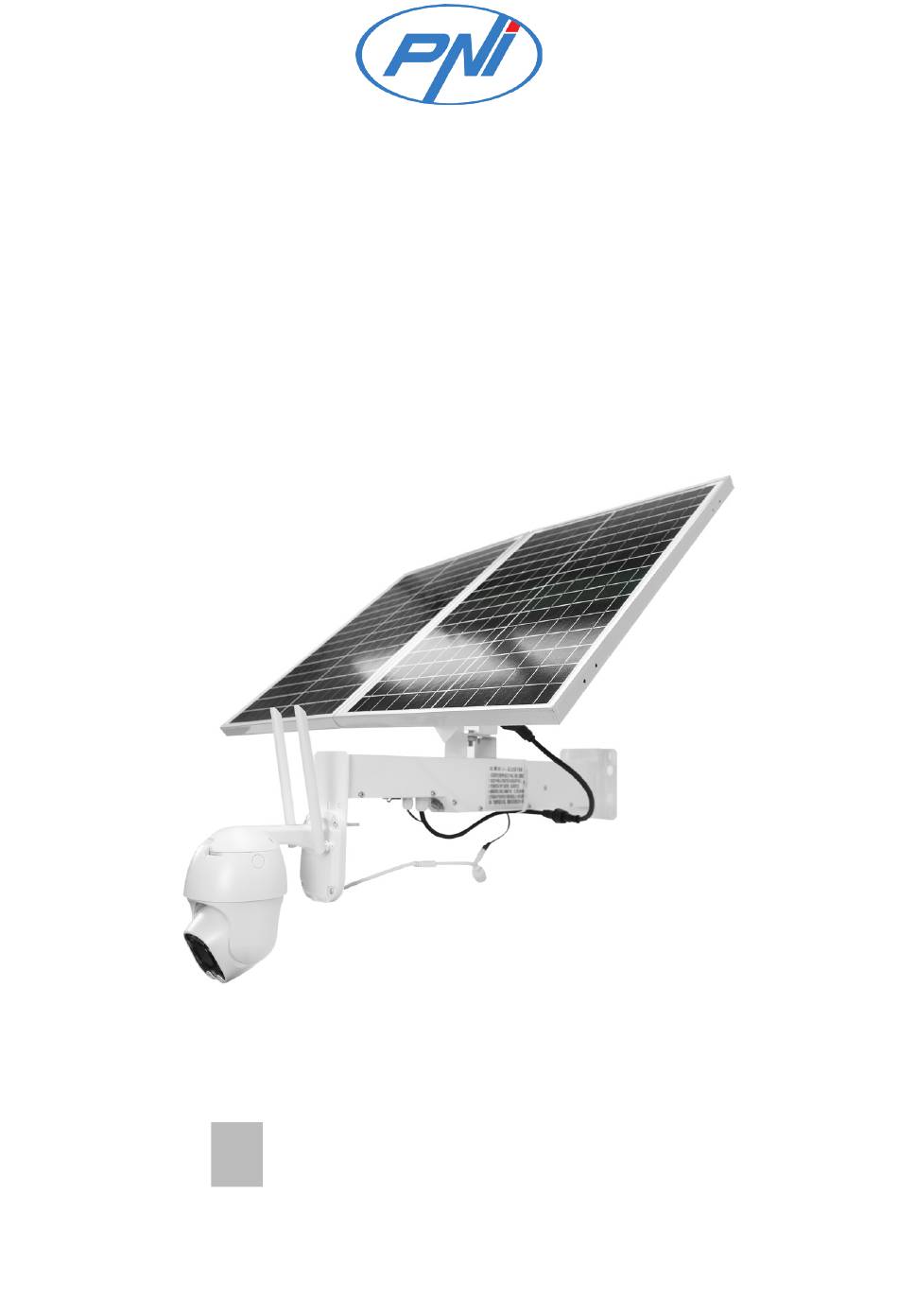

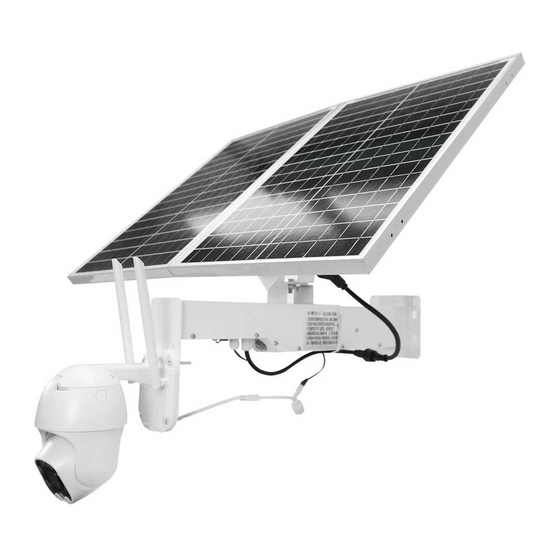

- Page 1 PNI IP60 2MP 4G PTZ SOLAR Video surveillance camera Camera supraveghere video User manual ..........Manual de utilizare ........
-
Page 3: Main Features
Main features • 4G and LAN connection (RJ45 connector) • Recording on micro SD card, max. 128 GB (card not included) • Two-way audio communication (built-in microphone and speaker) • Outdoor mounting, waterproof class IP66, ABS housing • 4 IR LEDs for night vision up to 20 m •... - Page 4 Camera installation and connection details Warning: the SIM card with 4G mobile data must not have the PIN code activated. Insert the SIM card with mobile data into a mobile phone, disable the security PIN and check if mobile data is available by accessing any web page.
- Page 5 4. Turn on the battery power using the red round switch: 5. The camera will start rotating and initializing. When the camera stops rotating, it is ready for configuration. Note: Before use, we recommend that you fully charge the battery for about 8 hours using the power supply in the package.
- Page 6 Add the camera to the mobile application Quick setup mode Download and install the CamHi application by scanning the codes below: Android 1. Open the application, create an account and connect. 2. Press Add camera. 3. In the following interface, you have several options to add the camera: •...
- Page 7 Add the camera to the application via the Local Network Advanced configuration mode Connect both the phone (via wireless) and the camera (via RJ45 network cable) to the same local network, Port 1 of the routeri. Warnings: • Make sure the phone is connected to the same router with the camera. •...
- Page 8 Configuration and viewing of the camera on the mobile phone 1. Press the Add Camera menu in the mobile application 2. Search for the camera in the local network: press Search Camera from 3. One result: the camera ID will appear on the screen. Click on the result, rename it, enter the password and complete the procedure.
- Page 9 • check the SIM card and remove the PIN code (in a phone); • check if the SIM card is 4G compatible and has active mobile data (in a phone). • check the signal strength: it must be greater than 60. If not, move the camera to a place with a better signal.
- Page 10 is OK, the camera will be online and you can remotely access the live images. Configuration of recordings on the micro SD card 1. Purchase and install a micro SD card of maximum 128Gb in the camera. 2. Launch the mobile application, click on the icon next to the camera that needs to be configured.Note: The camera status must be Online.
- Page 11 1. Install the Search Tool application (the installation file can be found on 2. The CD in the package or on the product web page in the download section (www.pni.ro). 3. Connect your computer and camera to the same router.
- Page 12 6. Press Next to configure the network parameters. You can enter the network parameters manually or you can check the DHCP option. Press Next. 7. Open Internet Explorer and enter the IP of the camera in the address bar or return to the list of cameras in the Search Tool application and double-click on the camera you want to view.
- Page 13 1. Install the HiP2P application on your computer (the installation file can be found on the CD in the package or on the product web page in the download section (www.pni.ro) 2. Launch the application, access the Config menu, select or add the new area...
- Page 14 (Add Area) and add the camera using the UID ID on the camera label or on the phone, if it is already added. (Input UID) or looking for the camera connected in the same network as the computer: press Search. Note: Detailed instructions about the HiP2P application can be found in the Download section of the product web page or from the software download link at the end of the user manual.
- Page 15 Connect the second joint using Connect the camera to the support the 3 dedicated screws in the box using the 4 dedicated screws in the (one bigger and 2 smaller) box. Techical specifications Camera Sensor F23 CMOS Sensor resolution Registration resolution 1920 x 1080 / 1-30 fps Color: 0.1Lux @(F1.2,AGC ON);...
- Page 16 Dimensions 192 x 70 x 70 mm Waterproof IP66 Housing Working temperature -26°C ~ +80°C / ≤80%RH Li-Ion battery Capacity / Voltage 20 A / 12 V Solar panel Power/Voltage/Current 60W (max) / 15V ( Vmp) / 4A (Imp) Charging Solar charger PWM model 230V charger...
-
Page 17: Continutul Pachetului
Caracteristici de baza • Conectare 4G si LAN (conector RJ45) • Inregistrare pe card micro SD, max. 128 GB (cardul nu este inclus) • Comunicare audio bidirectionala (microfon si difuzor incorporate) • Montaj la exterior, clasa de protectie IP66, carcasa ABS •... - Page 18 Instalarea camerei si detaliere conexiuni Avertisment: cartela SIM cu date mobile 4G nu trebuie sa aiba codul PIN activat. Introduceti cartela SIM cu date mobile intr-un telefon mobil, dezactivati codul PIN de securitate si verificati daca datele mobile sunt disponibile accesand orice pagina de internet. 1.
- Page 19 4. Porniti alimentarea de la baterie folosind comutatorul rotund rosu: 5. Camera va incepe rotirea si initializarea. Cand camera se opreste din rotire este gata pentru configurare. Nota: Inainte de utilizare, va recomandam sa incarcati complet bateria timp de aproximativ 8 ore cu ajutorul alimentatorului din pachet. Conectati alimentatorul la conectorul negru cu capac din cauciuc.
- Page 20 Adaugati camera in aplicatia mobila Mod rapid de configurare Descarcati si instalati aplicatia CamHi scanand codurile de mai jos: Android 1. Deschideti aplicatia, creati un cont si conectati-va. 2. Apasati Add camera. 3. In interfata urmatoare, aveti mai multe optiuni pentru a adauga camera: •...
- Page 21 Adaugare camera in aplicatie prin Reteaua Locala Mod de configurare avansat Conectati atat telefonul (prin wireless) cat si camera (prin cablu de retea RJ45) la aceeasi retea locala, Portul 1 al router-ului. Avertizari: • Asigurati-va ca telefonul este conectat la acelasi router prin wireless. •...
- Page 22 Configurare si vizualizare camera pe telefonul mobil 1. Apasati meniul Add Camera in aplicatia de mobil 2. Cautati camera in reteaua locala: apasati Search Camera from LAN 3. Un rezultat: ID-ul camerei va aparea pe ecran. Apasati pe rezultat, redenumiti, introduceti parola si finalizati procedura. 4.
- Page 23 (intr-un telefon). • verificati puterea semnalului: trebuie sa fie mai mare de 60. Daca nu, mutati camera intr-un loc cu semnal mai bun. • verificati starea cu o alta cartela SIM de la acelasi operator sau de la alt operator (fara cod PIN activ) •...
- Page 24 Configurare inregistrari pe cardul micro SD 1. Achizitionati si instalati in camera un card micro SD de maximum 128Gb. 2. Lansati aplicatia mobila, faceti click pe pictograma din dreptul camerei pe care doriti sa o configurati. Nota: Statusul camerei trebuie sa fie Online.
- Page 25 Nota: Instructiuni detaliate despre aplicatia CamHi pot fi gasite pe CD-ul din colet sau pe pagina web a produsului in sectiunea download (www. pni.ro). Configurati si vizualizati camera pe computer Camera dvs. poate fi accesata de pe computer in doua moduri: prin browserul Internet Explorer sau prin aplicatia pentru Windows HiP2P Client.
- Page 26 5. Apasa Next pentru a configura parametrii de retea. Puteti introduce parametrii de retea manual sau puteti verifica optiunea DHCP. Apasa Next. 6. Deschide Internet Explorer si introdu in bara de adrese IP-ul camerei sau reveniti la lista camerelor din aplicatia Search Tool si faceti dublu click pe camera pe care doriti sa o vizualizati.
- Page 27 1. Instalati in computer aplicatia HiP2P (fisierul de instalare poate fi gasit pe CD-ul din colet sau pe pagina web a produsului in sectiunea download (www. pni.ro) 2. Lansati aplicatia, accesati meniul Config, selectati sau adaugati zona noua (Add Area) si adaugati camera utilizand ID-ul UID de pe eticheta camerei sau de pe telefon, daca este deja adaugat.
- Page 28 Nota: Instructiunile detaliate despre aplicatia HiP2P pot fi gasite in sectiunea Descarcare de pe pagina web a produsului sau de pe linkul de descarcare a software-ului de la sfarsitul manualului de utilizare. Instalarea suportului bateriei si a panoului solar Urmati pasii urmatori pentru a conecta panoul solar, suportul cu bateria si camera de supraveghere.
-
Page 29: Specificatii Tehnice
