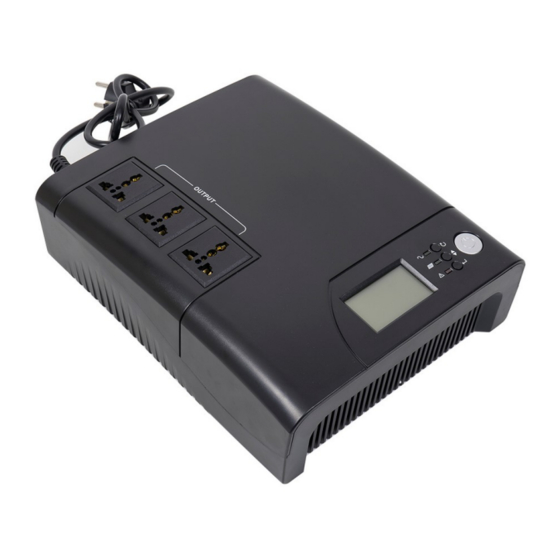

Summary of Contents for PNI GreenHouse SC1100B

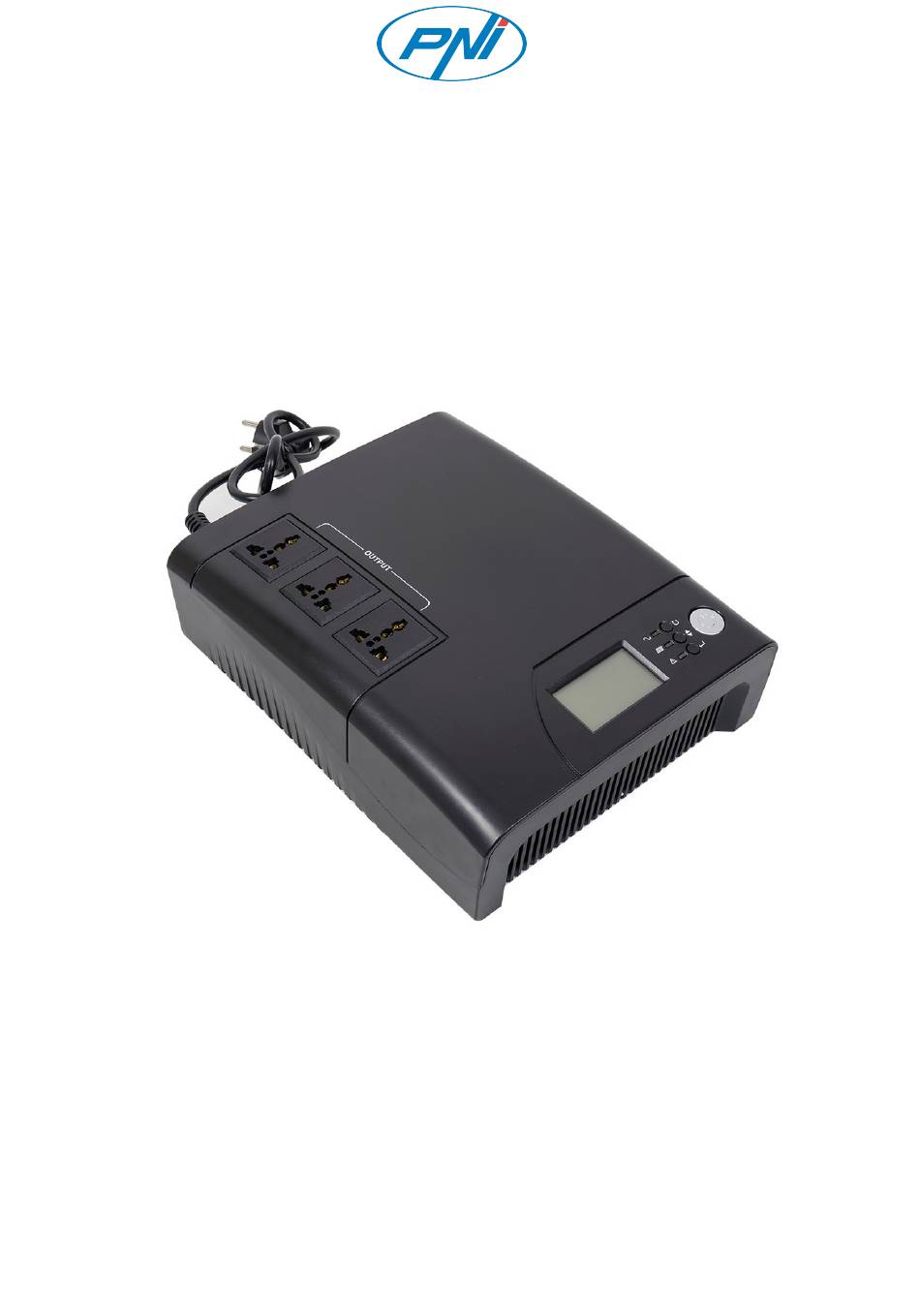

- Page 1 PNI GreenHouse SC1100B Invertor solar / Solar inverter RO Manual de utilizare ... 2 EN User manual ... 17...
- Page 2 Atentionari 1. Acest produs permite conectarea de electrice/electronice/consumatori rezistivi datorita undei de iesire sinus modificat. 2. Puteti conecta la acest invertor cu o unda sinusoidala modificata: incarcatoare de laptop, telefon mobil si aparate foto, aparate cu motorase de putere mica si turatie fixa, prajitoare, cafetiere, cele mai multe aparate stereo, imprimante cu jet, frigidere mici (fara compresor), televizoare, aparate video, multe cuptoare cu microunde.
- Page 3 Introducere PNI GreenHouse SC1100B este un invertor solar inteligent si eficient in termeni de costuri care suporta simultan conectarea la un sistem solar si la reteau publica de curent (Solar&Utility). Ecranul LCD cu afisaj intuitiv ofera informatii configurabile precum curentul de incarcare a bateriei, prioritate incarcare AC/solar si prioritate sursa de iesire. Cand tensiunea bateriei este scazuta, invertorul va trece automat pe modul “AC grid”...
- Page 4 Chiar daca invertorul este inchis, el va incarca oricum bateria externa conectata. Conectarea bateriei externe Pasul 1: Indepartati protectiile de pe terminalii bateriei. Pasul 2: Respectati marcajele de polaritate de pe baterie Conectati cablul ROSU la terminalul pozitiv (+); Conectati cablul NEGRU la terminalul negativ (-). ATENTIONARE! Va rugam sa folositi cablu corespunzator pentru conectarea bateriei.
- Page 5 ATENTIONARI: inainte de a conecta modulele PV, instalati mai intai un intrerupator DC intre invertor si modulele PV. Toate conexiunile trebuie executate de personal calificat. Pentru siguranta sistemului si pentru un mod de operare eficient, folositi cabluri potrivite pentru conectarea modulelor Pentru a reduce riscul de accidentare, folositi dimensiunile de cablu recomandate mai jos: Amperaj tipic Dimensiune...
- Page 6 Putere maxima (Pmax) Maximum Power (Pmax) 260W Numarul maxim de module PV in serie 1→30.9 x 1 30 ~ 32 Tensiune putere maxima Vmp(V) Max. Power Voltage Vmp(V) 30.9V Curent putere maxima Imp(A) Max. Power Current Imp(A) 8.42A Numarul maxim de module PV in paralel 6→50A/8.42 Tensiune circuit deschis Voc(V) Open Circuit Voltage Voc(V)
- Page 7 Indica programul de setari. Indica avertizari si coduri de eroare. Avertizare si Eroare: clipeste insotit de pictograma Informatii iesire Indica tensiunea de iesire, frecventa de iesire, procentul de incarcare, puterea PV, nivelul de incarcare exprimat in Watt, versiune. Informatii baterie Indica nivelul bateriei 0-25%, 26-50%, 51-75% si 76-100% in mod baterie (battery mode) si starea incarcarii in modul linie (line mode) sau in standby.
- Page 8 Incarcarea este furnizata de alimentarea electrica de la reteaua publica (utility power). Circuitul de incarcare de la reteaua publica (utility charger circuit) functioneaza. Circuitul DC/AC al invertorului functioneaza. Operare fara sunet Alarmele audio si sunet taste sunt dezactivate. Setari LCD Apasand timp de 3 secunde butonul ENTER, invertorul va intra in modul de setari.
- Page 9 Curentul maxim de incarcare: 30A (default) Pentru a configura curentul total de incarcare. (Curentul maxim de incarcare=curentul de incarcare din reteaua publica + curentul de incarcare solara) Larg (default) Interval de tensiune acceptat 90-280VAC Interval tensiune de intrare Ingust Interval de tensiune acceptat 170-280VAC. 50Hz (default) 60Hz.
- Page 10 (cut-off voltage) Pentru modelul 1200VA, intervalul este cuprins intre 9.9V-12.0V, pentru 1800VA intervalul este 10.5V-12.0V, iar pentru 2400VA ( PNI SC1100B), intervalul este 19.8V-24.0V. Cu fiecare click cresterea este de 0.1V pentru modele 1200/1800VA si cu 0.2V pentru 2400VA ( PNI SC1100B).
- Page 11 Baterie complet 27.8V incarcata 27.6V(default) 28.0V 28.2V Setare tensiune baterie complet incarcata 28.4V 28.6V 28.8V 29.0V Repornire dezactivata Repornire activata Repornire automata in caz (default) de suprasarcina Intoarcere automata la Daca este selectat, indiferent de modul in care ecranul implicit utilizatorul schimba modul de afisare, acesta se va intoarce la modul implicit (tensiune de Intoarcere automata la...
- Page 12 Frecventa de intrare =50Hz Frecventa de iesire =50Hz Frecventa de intrare/Frecventa de iesire Tensiune PV=30V Putere PV=600W Tensiune si putere PV Curent de incarcare PV=50A Putere PV=600W Putere si curent de incarcare PV Tensiune baterie =25.5V Tensiune de iesire =230V Tensiune baterie/Tensiune de iesire Tensiune baterie =25.5V Procent incarcare =70%...
- Page 13 Tensiune baterie/Nivelul de incarcare exprimat in Watt Cand nivelul de incarcare este mai mare de 1kW (≧1KW), pe ecran va fi afisat x.xxKW ca in imaginea de mai jos. Model versiune=nor Numar versiune=1.05 Versiune CPU Descriere mod operare Mod operare Descriere Ecran LCD Mod Standby...
-
Page 14: Coduri De Eroare
Invertorul incarca de la reteaua publica. Energie de la baterie si de la sursa solara. Mod baterie Invertorul va furniza energie consumatorilor de la baterie si de la panoul fotovoltaic. Energie doar de la baterie. Coduri de eroare Cod eroare Descriere Pictograma aprinsa pe ecran Scurtcircuti pe iesire... - Page 15 Tensiune PV prea mare Frecventa de iesire este anormala Tensiunea bateriei prea mica Sarcina prea mare Probleme si solutii Problema LCD/LED/Buzzer Explicatie / Posibila cauza Rezolvare In caz de lipsa Alarma baterie Tensiunea bateriei este prea mica Incarcati bateria cel putin 8 ore. de curent, descarcata.
-
Page 16: Specificatii Tehnice
Greutate Declaratie UE de conformitate simplificata SC ONLINESHOP SRL declara ca Invertor solar PNI GreenHouse SC1100B este in conformitate cu Directiva EMC 2014/30/EU, Directiva 2006/42/EC si Directiva LVD 2014/35/EU. Textul integral al declaratiei UE de conformitate este disponibil la urmatoarea adresa de internet:... - Page 17 USER MANUAL SOLAR INVERTER/CHARGER PNI GreenHouse SC1100B...
-
Page 18: General Precautions
General Precautions 1. Before using it, read all instructions and cautionary markings on: (1) inverter (2) the batteries (3) this manual 2. CAUTION --To reduce risk of injury, charge only lead-acid rechargeable batteries. If customer use flooded batteries, they must maintain them usually. Other types of batteries may cause damage and injury. 3. - Page 19 Introduction It is a cost effective, intelligent solar inverter which accept Solar&Utility input at the same time. The comprehensive LCD display offers user-configurable and easy-accessible button adjustment such as battery charging current, AC/solar charger priority and output source priority. When battery voltage low, it will automatically switch to AC grid to supply continuously power to the loads.
- Page 20 Connect to utility and charge Plug the AC input cord to the wall outlet. The unit will automatically charge the connected external battery even though the unit is off. Connect external battery Step1: Away the cover of external battery terminal. Step2: Following battery polarity guide printed near the battery terminal.
- Page 21 Inverter Fig.4 Step 6: Make sure to connect the polarity of battery side and unit correctly. Positive pole(Red) of battery to the positive terminal(+)of the unit. Negative pole(Black) of battery to the negative terminal(-)of the unit. Step 7: Put the covers back to the external battery terminals. Step 8: Take the DC Breaker on.
-
Page 22: Operation
Take 1200/1800VA inverter as an example to select proper PV modules. After considering Voc of PV module not exceed 55Vdc and max. Vmp of PV module close to 15Vdc or within 15Vdc ~ 18Vdc, we can choose PV module with below specification. -
Page 23: Lcd Display
LCD Display Display Function Input Source Information Indicates the PV input. Indicate input voltage, input frequency, PV voltage, battery voltage, charger current and version model. Configuration Program and Fault Information Indicates the setting programs. Indicates the warning and fault codes. Warning and Fault: flashing with Output Information Indicates output voltage, output frequency, load percent, PV power, load in Watt, version number. -
Page 24: Lcd Setting
Mode Operation Information Indicates unit connects to the mains. Indicates unit connects to the PV panel. Indicates load is supplied by utility power. Indicates the utility charger circuit is working. Indicates the DC/AC inverter circuit is working. Mute Operation Indicates unit alarm or button beep is disabled. LCD Setting After pressing and holding “ENTER”... - Page 25 battery voltage drops to either low-level cut-off voltage or the setting point in program 08. Maximum charging current: To configure total charging 30A (default) current for solar and utility chargers (Max. charging current= utility charging current+ solar charging current) Wide (default) If selected, acceptable AC input voltage range will be within 90-280VAC.
- Page 26 will charge battery if it's available and sufficient. 1200/1800VA model: default setting 10.5V 2400VA model: default setting 21.0V Low DC cut-off voltage Setting range is from 9.9V to 12.0V for 1200VA model, 10.5V to 12.0V for 1800VA model, 19.8V to 24.0V for 2400VA model. Increment of each click is 0.
- Page 27 13.5V (default) 13.7V Setting voltage point back to battery mode when Available options in 2400VA model: selecting "SBU priority"or 24.0V 24.4V "Solar first" in program 01 25.0V 25.4V 26.0V 26.4V 27.0V (default) 27.4V Available options in 1200/1800VA model: Battery fully charged 13.9V 13.8V(default) 14.0V...
-
Page 28: Display Setting
Auto restart when overload (default) occurs Return to default If selected, no matter how users switch display display screen screen, it will automatically return to default display screen (Input voltage /output voltage) Auto return to default after no button is pressed for 1minute. display screen Stay at latest screen If selected, the display screen will stay at latest... - Page 29 PV voltage and power PV charging current=50A PV power=600W PV charging current and power Battery voltage=25.5V Output voltage=230V Battery voltage/Output voltage Battery voltage=25.5V Load percent=70% Battery voltage/Load percentage When load is lower than 1KW, load in W will present xxxW like below chart. When load is larger than 1kW (≧1KW), load in W will present x.xxKW like Battery voltage/Load in Watt below chart.
-
Page 30: Operating Mode Description
CPU version Operating Mode Description Operation mode Description LCD display Standby Mode Charging by utility. Note: Standby mode: The inverter is not turned on yet but at this time, the inverter can Utility input bypass to output, charge battery with AC input charger available. -
Page 31: Fault Reference Code
Fault Reference Code Fault Code Fault Event Icon On Output short circuit Overload time out Battery weak Output voltage too high Output voltage too low PV temperature too high Battery voltage too high Fan fault PV current high PV voltage too low PV voltage too high Output frequency abnormal Battery voltage low... -
Page 32: Specifications
displayed as 0 on the and AC wiring is connected well. LCD and green LED is flashing. Mains exists but 1. Check if AC wires are too thin the unit works in and/or too long. battery mode. Green LED is flashing. Insufficient quality of AC power. - Page 33 Net Weight (kgs) (Iron Piecesc) EU Simplified Declaration of Conformity SC ONLINESHOP SRL declares that Solar inverter PNI GreenHouse SC1100B complies with the Directive EMC 2014/30/EU, Directive 2006/42/EC and LVD 2014/35/EU. The full text of the EU declaration of conformity is available at the following Internet address:...
