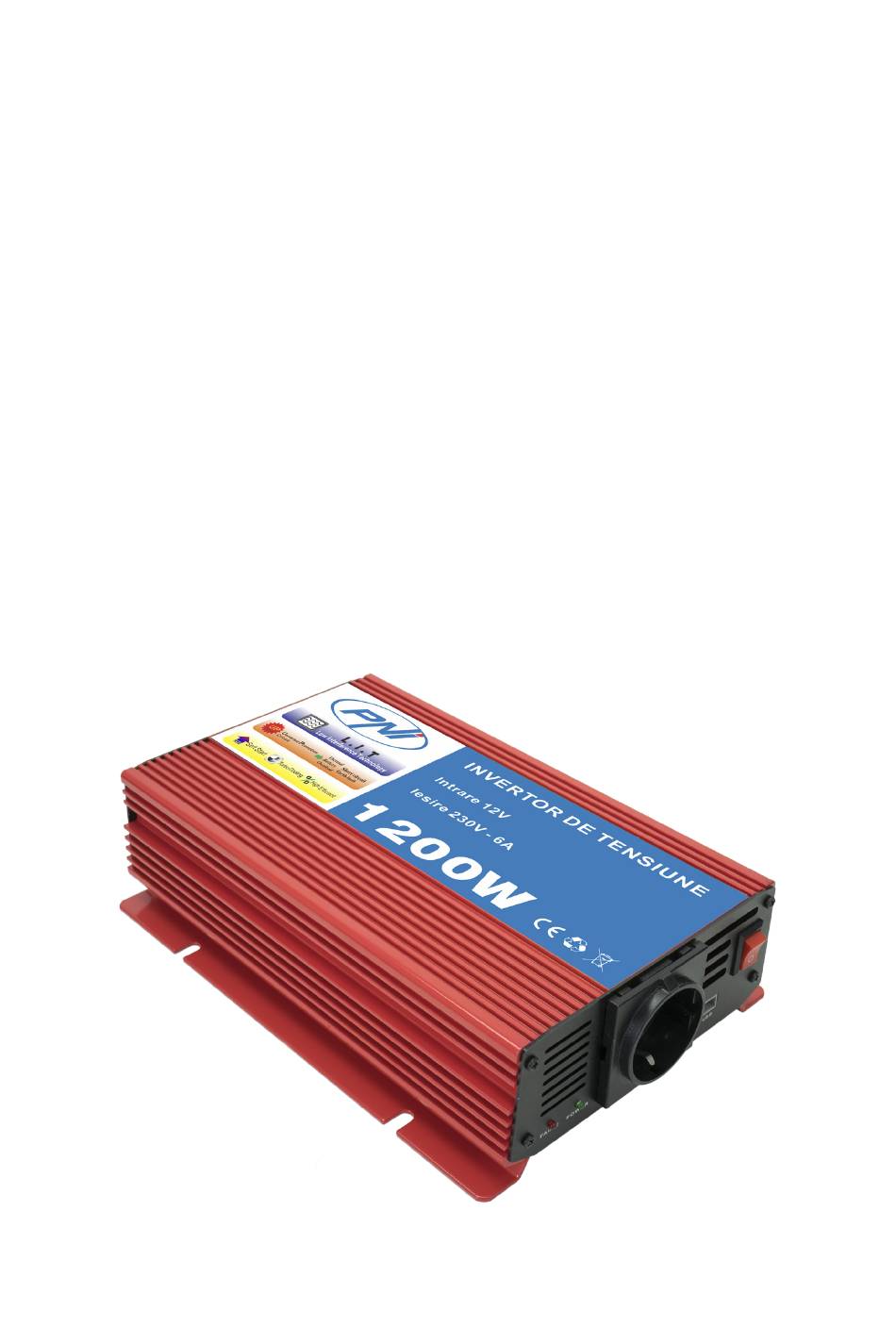

MANUAL DE UTILIZARE
Invertor de tensiune PNI L1200W
alimentare 12V iesire 230V

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L1200W and is the answer not in the manual?

Questions and answers

Summary of Contents for PNI L1200W

  • Page 1 MANUAL DE UTILIZARE Invertor de tensiune PNI L1200W alimentare 12V iesire 230V...
  • Page 2 INTRODUCERE Informatii despre utilizare Va multumim ca ati ales unul din produsele noastre. Acest manual este dedicat Invertoarelor de putere cu sinus modificat. Aceasta serie de produse sunt utilizate pentru transformarea tensiunii DC 12V in AC 220V 50Hz . Va recomandam sa cititi si sa respectati indicatiile din acest manual inainte de instalare si utilizare.
  • Page 3 CAPITOLUL 1 MASURI DE SIGURANTA Acest capitol prezinta masurile de siguranta. Va recomandam sa cititi cu atentie acest capitol inainte de utilizare, pentru siguranta personala si nedetriorarea produsului. Descriere simboluri Va recomandam sa va conformati cu indicatiile din tabelele de mai jos inainte de utilizara produsului.
  • Page 4 5. Nu manipulati invertorul, in prezenta unor conductori electrici: ceas metalic, bratari, inele. 6. Invertorul trebuie fixat, instalat si intretinut doar de personal calificat. Atentie la Sarcinile inductive si la rectificari de jumatate de unda Va recomandam sa alegeti un invertor cu o putere de 2-3 ori mai mare decat puterea consumatorilor de tip inductiv, sau jumatate de unda modificata.
  • Page 5 CAPITOLUL 2 INSTALARE INVERTOR Verificare continut pachet Verificati urmatoarele elemente la deschiderea pachetului: Verificati invertorul la exterior de lovituri sau neconcordante. Daca exista lovituri, sau carcasa deteriorata contactati imediat vanzatorul. Verificati existenta accesoriilor prezentate in colet. Daca nu gasiti toate accesoriile din descriere, contactati vanzatorul imediat. Conditii de instalare - mediu Pastrati invertorul in mediu uscat si ventilat.
  • Page 6 4. Conectati consumatorii la priza schuko de iesire, de pe panoul lateral al invertorului. 5. Dupa ce va asigurati ca toate conexiunile sunt facute corect si bine, porniti invertorul. Daca indicatorul LED verde se aprinde, inseamna ca voltajul de iesire este corect, si invertorul functioneaza corect. Conectarea corecta a invertorului este prezentata in urmatoarea schema.
  • Page 7 Curent maxim de descarcare=Putere nominala/(voltaj stocare*0.85) Capacitate de stocare baterie = curent mediu de descarcare*discharging time Exemplu: PNI L1200W are o putere nominala de 1200W, voltaj de intrare 12V, deci: Curent mediu de descarcare = 1200/(12*0.85)= 117 A Daca se mentine 2 ore pornit: Capacitate de stocare baterie = 117*2=235 Ah Alegeti o baterie cu o capacitate mai mare de 235 Ah.
  • Page 8 CAPITOLUL 4 MENTENANTA SI GESTIUNE ERORI Gestiune erori Eroare Posibila cauza Solutie Invertorul nu 1. Bateria este deteriorata sau 1. Schimbati bateria porneste si LED- defecta 2. Conectati bateria cu grija ul Power nu se 2. Conexiunea la baterie este 3.
  • Page 9 Detalii tehnice Model PNI L1200W - 12V alimentare 12V iesire 230V IESIRE Iesire nominala 230 VAC Tip unda iesire Sinus modificat Frecventa iesire 50/60Hz Eficienta functionare > 80% ( sarcina 100%) Variatie voltaj +- 5% Voltaj THD <3% Putere nominala 1200 W Putere de varf (<1s)
  • Page 10 USER MANUAL Modified Sine wave inverter PNI L1200W input 12V output 230V...
  • Page 11 INTRODUCTION Usage consideration Thank you for purchasing our products! This manual is suitable for modified sine wave power supply inverters. This serie of products are used for DC 12V in AC 230V 50Hz . Va recomandam sa cititi si sa respectati indicatiile din acest manual inainte de instalare si utilizare.
  • Page 12: Chapter 1 Safety Precautions

    CHAPTER 1 SAFETY PRECAUTIONS This chapter is all about safety Precaution. Please read this chapter carefully before using our products to make sure personal safety or out of equipment damaged Symbol description Please comply with information of charts following show before using our products as Chartl-1 Safety precautions The inverter has high temperature and pressure.
  • Page 13 5.Do not taking with any electric conduction processing for example, watches, bracelets or rings. 6.The inverter fixing and maintaining only for professional serviceman. Inductive load and half-wave rectification load attention Please choose inverters as 2to3times of load power when hitching half-wave rectification or inductive load .
  • Page 14: Chapter 2 Inverter Installing

    CHAPTER 2 INVERTER INSTALLING Check the box contents Please check things following after open the package: Check the inverter outside if has any damaged. If there is any damaged of machine, please contact common carrier immediately. Check if the standard accessories are complete. If you find out any missign accessory or wrong model please contact your supplier immediately.
  • Page 15 4. Connect a load to the power outlet of the inverter on the side panel. 5. Ensure all the connections are properly done, turn on the inverter. If the green LED lights on, then the output voltage is correct and the device is ready to use.
  • Page 16: Chapter 3 About Battery

    The storage bettery capacity depends on max discharge current: Max discharge current=rated power/( storage voltage*0.85) Storage battery capacity=most discharge current*discharging time Example: PNI L1200W Inverter rated power is 1200W, input voltage is 12V, so: Most discharge current=l200/(12*0.85)=117 A; If kept working for 2hours: Storage battery capacity=l17*2=235AH...
  • Page 17: Chapter 4 Maintaining And Fault Analysis

    CHAPTER 4 MAINTAINING AND FAULT ANALYSIS Fault analysis Fault Cause Solution Inverter and LED 1. Battery is damaged or worn out. 1. Replace battery. wont turn on 2. Battery connection is abnormal. 2. Reconnect the batery properly. 3. Fuse is broken. 3.
  • Page 18 Tehnical specifications Model PNI L1200W - 12V input 12V output 230V Output Nominal output 230 VAC Output wave modified sine wave Output frequency 50/60Hz Operating efficiency > 80% (full load) Voltage variation +- 5% Voltage THD <3% Nominal power 1200 W Peak power (<1s)
  • Page 19: Használati Útmutató

    HASZNÁLATI ÚTMUTATÓ PNI L1200W Inverter feszültség 12 tápellátás 230V kimenet...
  • Page 20 BEVEZETÉS Tájékoztatás a használathoz Köszönjük, hogy az egyik termékünket választotta. Ez a kézikönyv a módosított szinuszos teljesítmény-inverterekhez készült. Ez a termékcsalád arra szolgál, hogy átalakítsa a DC 12V feszültséget AC 220V 50Hz-re. Javasoljuk, hogy olvassa el és kövesse a jelen kézikönyv utasításait a telepítés és használat előtt.
  • Page 21: Fejezet Biztonsági Intézkedések

    1 FEJEZET BIZTONSÁGI INTÉZKEDÉSEK Ez a fejezet bemutatja a biztonsági intézkedéseket. Javasoljuk, hogy figyelmesen olvassa el ezt a fejezetet használat előtt, a személyi biztonság és a termék biztonsága érdekében. Szimbólumok leírása Javasoljuk, hogy kövesse az alábbi táblázatokban található utasításokat a termék használata előtt.
  • Page 22 5. A frekvenciaváltót ne működtesse elektromos vezetékek jelenlétében: fém, órák, karkötők, gyűrűk. 6 Frekvenciaváltót szakképzett személyzetnek kell javítania, telepítenie. Figyelem induktív terhelésekre és a félhullámú egyenirányításra Javasoljuk, hogy válasszon olyan frekvenciaváltót, amelynek teljesítménye 2-3-szorosa az induktív típusnak, vagy a félhullámú teljesítménynek. Kerülje a antistatikus veszélyt Javasoljuk, hogy földelt antisztatikus karkötőt viseljen a statikus kisütő...
  • Page 23 2 FEJEZET INVERTER TELEPÍTÉSE Ellenőrizze a csomag tartalmát A csomag megnyitásakor ellenőrizze a következő elemeket: Védje meg a frekvenciaváltót ütésektől. Ha ütések vannak vagy a doboz megsérült forduljon azonnal az eladóhoz. Ellenőrizze a csomagban feltüntetett tartozékokat. Ha nem találja a leírásban szereplő...
  • Page 24 4. Csatlakoztassa a fogyasztókat a frekvenciaváltó oldallapján lévő Schuko Outlet aljzathoz. 5. Miután gondoskodik róla, hogy minden csatlakozás helyesen és jól történt, kapcsolja be a frekvenciaváltót. Ha a zöld LED be van kapcsolva, akkor a kimeneti feszültség helyes, és a frekvenciaváltó megfelelően működik. A frekvenciaváltó...
  • Page 25 Maximális kisütési áram=Névleges teljesítmény / (tárolási feszültség * 0,85)Az akkumulátor tárolási kapacitása = átlagos kisülési áram*discharging time Példa: A PNI L1200W névleges kimenete 1200W, bemeneti feszültség 12V, így: Átlagos kisütési áram = 1200/(12*0.85)= 117 A Ha 2 órán keresztül tartjuk fent Az akkumulátor tárolási kapacitása = 117*2=235 Ah...
  • Page 26 4 FEJEZET KARBANTARTÁS ÉS HIBAELHÁRÍTÁS GESTIUNE ERORI Hibaelháritás Hiba Lehetséges okok Megoldás A frekvenciaváltó 1. Az akkumulátor sérült vagy 1. Cserélje ki az elemet nem kapcsol be, és hibás 2. Óvatosan csatlakoztassa az a Power LED nem 2. Az akkumulátor csatlakozása akkumulátort viágít abnormális...
  • Page 27 Műszaki adatok Típus PNI L1200W - 12V 12V tápellátás 230V kimenet KIMENET Névleges teljesítmény 230 VAC Kimenet típusa Módosított szinusz Kimeneti frekvencia 50/60Hz Működési hatékonyság ( > 80% 100% terhelés) Feszültségváltozás +- 5% THD teljesítmény <3% Névleges teljesítmény 1200 W Csúcsteljesjtmény(<1s)
