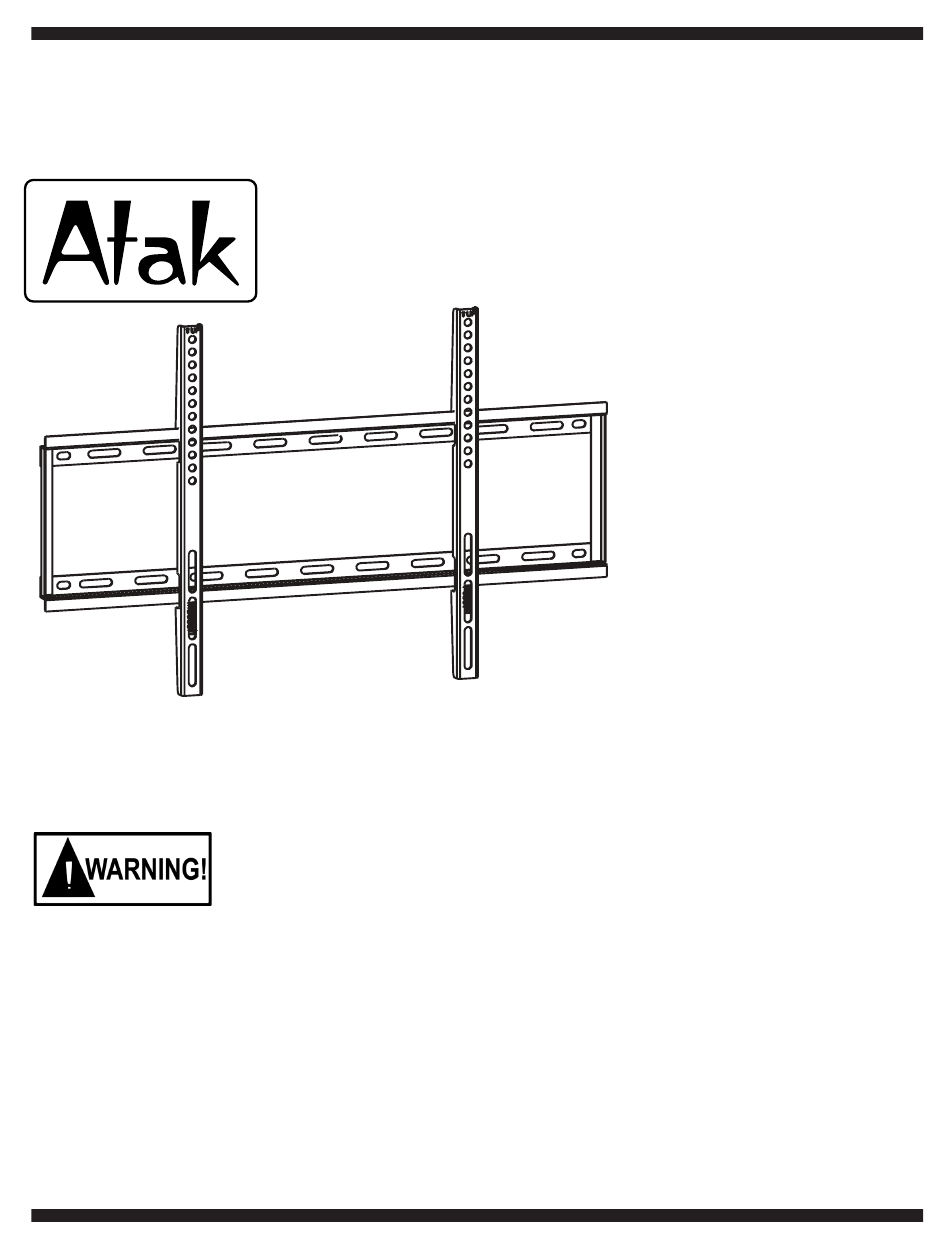

Fixed Flat Panel Mount
• Support most 23" - 55" LCD/Plasma Flat Panels
• Maximum weight capacity: 99 lbs.
• Supports VESA Sizes up to 600X400
This product Wall Mount frame is intended for use only with an apparatus which has a
maximum weight of 99 lbs. See apparatus instructions. Using with an apparatus heavier
than the maximum weight indicated may result in instability and cause possible injury.
READ THIS FIRST
Read this entire manual! Do not attempt to install this product if you do not understand the
instructions. Contact a qualified mount installer if you have any doubts about a safe and
secure mount installation, or if you are not sure what specific wall materials you are at-
taching this mount to. Check all the parts carefully to make sure there are no missing
or damaged parts. Improper installation may result in damage to your TV, property, and
personal injury.
Installation Guide
Model: XPF302
• Easy installation
• Low profile
• Bubble level for easy positioning
• Safety bolts lock the TV on the mount
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Atak XPF302
Summary of Contents for Atak XPF302
- Page 1 Fixed Flat Panel Mount Installation Guide Model: XPF302 • Easy installation • Low profile • Bubble level for easy positioning • Safety bolts lock the TV on the mount • Support most 23” - 55” LCD/Plasma Flat Panels • Maximum weight capacity: 99 lbs.
-
Page 2: Child Safety
Schoenfeld International Inc. and ATAK are not responsible for personal injury or product damage due to mishandling, incorrect mounting, incorrect assembly, or incorrect use of this product. - Page 3 Description Description M8× bolt Wall plate Bracket Washer(5φ 5.3X 12X1.2) φ Washer(6φ 6.3X 16X1.5) φ Safety bolt ×12 bolt Long bolt washer 5×12 bolt Long bolt M ×12mm bolt Wall anchor Bubble level The actual appearance and quantity of parts may be different than shown in the illustration. Consult the table for actual quantities.
- Page 4 Step 1: Attach the left and right brackets to your TV Do not force the bolts into the mounting holes on your TV. Do not use an electric drill to tight- en these bolts on your TV. This could damage the equipment or cause personal injury. CAUTION: Do not place the TV face down on a hard surface when installing the mounting plate on the TV.
- Page 5 Step 2: Attach the wall mount to the wall Find and mark the best position for the wall mount on the wall. The best viewing height is parallel to the eye level of a person sitting on a couch. Normally, this is about 4 feet above floor level.
- Page 6 Wood stud walls (Fig 3b) 1. Use a pencil, awl, or a nail to mark the location of the wall stud centers (Fig 3b) after locating the stud with an electronic stud locator. The distance between marks should not be less than 16 inches (Studs must not be less than 16 inches (40.6 cm).
- Page 7 Concrete Walls: 1. Place the wall mount flat against the wall in the desired location. Use the wall plate as a template to mark the location of all four mounting holes on the wall. Make sure that the mounting holes are level and are parallel.
- Page 8 Step 3: Hang the television display A large television requires two people to lift. Schoenfeld International Inc. and ATAK are not responsible for equipment damage or personal injury due to mishandling. ensuring that it is securely installed can result in equipment damage or personal injury.
- Page 9 To contact us please call 1-800-936-1168. ATAK will warrant for a period of six-years from the original date of purchase, all Wall Mount parts and components described in the parts list for this model located in the Instruction Manual.
- Page 10 Schoenfeld International Inc and Atak 5001 American Boulevard West Suite 275 Bloomington, Minnesota 55437 ©Schoenfeld International Inc, 2012 PN:XPF302 Rev 1.2 August 2012...
