Vertical Antenna Fixed Base Assembly
DXE-VE-BASE
DXE-VE-BASE-INS Rev. 4b

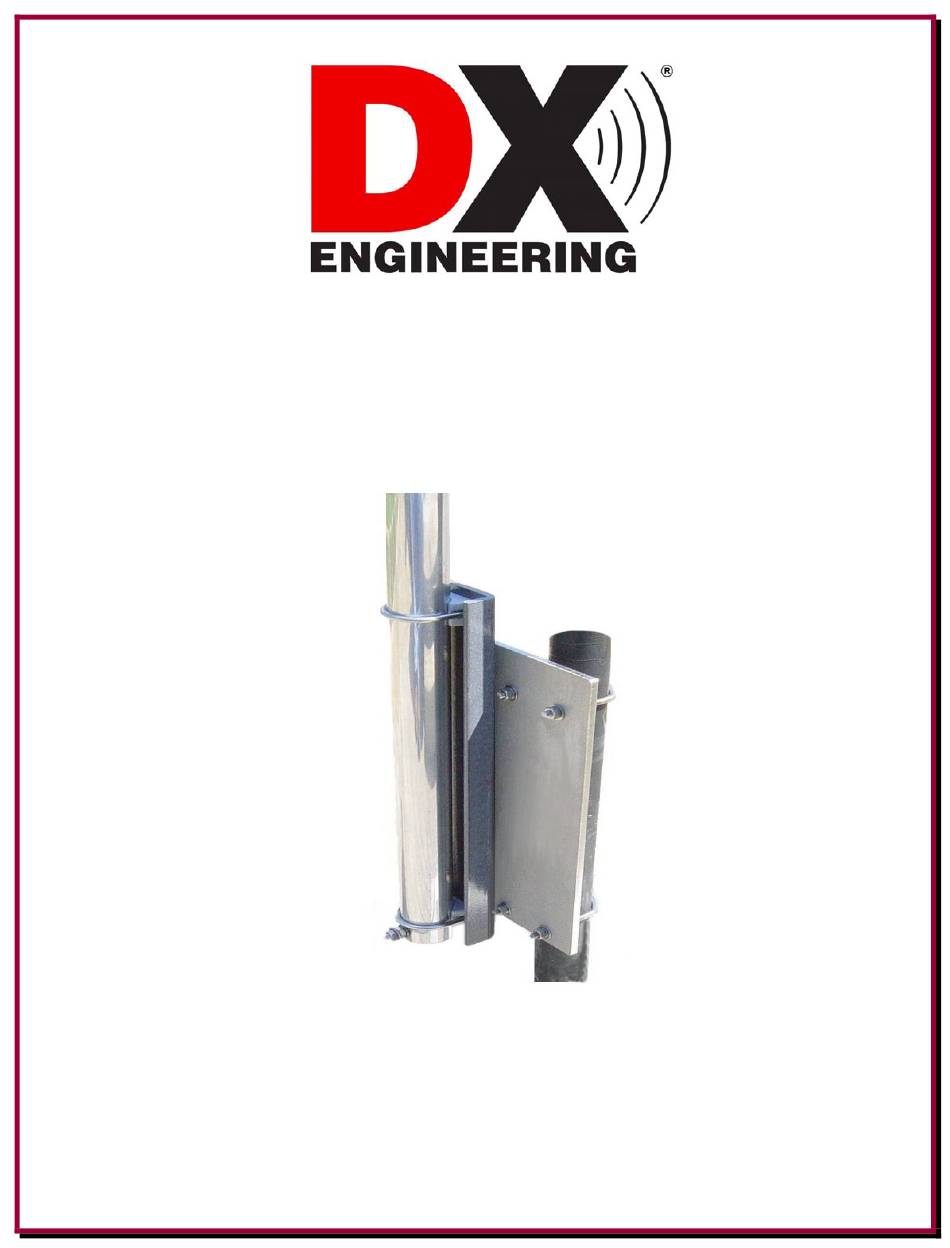

(DXE-VE-BASE shown with customer supplied mounting pipe and antenna section)
© DX Engineering 2010
P.O. Box 1491 · Akron, OH 44309-1491 USA
Phone: (800) 777-0703 · Tech Support and International: (330) 572-3200
Fax: (330) 572-3279 · E-mail: DXEngineering@DXEngineering.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DX Engineering DXE-VE-BASE
Summary of Contents for DX Engineering DXE-VE-BASE
- Page 1 Vertical Antenna Fixed Base Assembly DXE-VE-BASE DXE-VE-BASE-INS Rev. 4b (DXE-VE-BASE shown with customer supplied mounting pipe and antenna section) © DX Engineering 2010 P.O. Box 1491 · Akron, OH 44309-1491 USA Phone: (800) 777-0703 · Tech Support and International: (330) 572-3200...
- Page 2 Introduction The DXE-VE-BASE Insulated Vertical Antenna Base with its supplied 2 inch U-Bolt Saddle Clamps is intended to support a 2 inch OD antenna base section in a fixed vertical position. Features: • Rugged 1/4" thick aluminum mounting plate •...
- Page 3 Parts Included Description Quantity Aluminum Mounting Plate Mast Mount Insulated Channel 3/8" U-Bolt x 2" ID x 3.25" leg, Saddle & Hardware 1/4-20 x 2" Hex Head Bolt 1/4" Flat Washer 1/4" Split Washer 1/4-20 Hex Nut Aluminum Spacer Installation Site Selection Select a mounting location clear from power lines, structures and other antennas by a minimum of your antenna height.
- Page 4 Assembly The DXE-VE-BASE shipping box contains an aluminum plate with eight holes, an insulated channel, two U-Bolt assemblies and stainless steel hardware. DXE-81343 Never-Seez or NSBT8 Anti-Seize should be used on all clamps, bolts and stainless steel threaded hardware to prevent galling and to ensure proper tightening.
- Page 5 If you are using the optional DXE-RAD31 Radial Plate, it must be installed on your mounting pipe prior to installing the DXE-VE-Base. Attach the completed DXE-VE-BASE to your ground mounting pipe using two optional DXE-CAVS-1P Saddle Clamps, as shown in Figure 3. When tightening, observe the split washers.
- Page 6 When you decide to add the DXE-TB-3P Tilt Base, the DXE-VE-BASE can be easily installed. With a DX Engineering DXE-TB-3P Tilt Base, operators can raise or lower their vertical antenna in seconds while leaving the base plate securely attached to the mounting pipe or post. One person can service the antenna.
- Page 7 DXE-RADP-3 - Radial Plate, Stainless Steel with 20 Sets of SS Radial Attachment Hardware The DX Engineering Radial Plate is meant for those of you that have or are building a quarter wave vertical antenna and who want an easy, neat and effective way to connect those essential radial wires and the coax to your vertical antenna for the lowest takeoff angle and strongest signals.
- Page 8 All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted; no allowance shall be made for any labor charges of Buyer for replacement of parts, adjustment or repairs, or any other work, unless such charges are authorized in advance by DX Engineering.
