Telescoping Fiberglass Tubing
and Cam Lock Clamp Kits
Combination Kits: DXE-TFK15, DXE-TFK25, DXE-TFK46, DXE-TFK46-HD
Fiberglass Tube Kits: DXE-TF15, DXE-TF25, DXE-TF46, DXE-TF46-HD
Cam Lock Clamp Kits: DXE-CLC15, DXE-CLC25, DXE-CLC46, DXE-CLC46-HD
DXE-TF-CLC-INS-Rev 0c
DX Engineering 2020
1200 Southeast Ave. - Tallmadge, OH 44278 USA
Phone: (800) 777-0703 Technical Support and International: (330) 572-3200
Fax: (330) 572-3279 E-mail: DXEngineering@DXEngineering.com
- 1 -
Advertisement
Table of Contents
Related Manuals for DX Engineering DXE-TFK15
Summary of Contents for DX Engineering DXE-TFK15

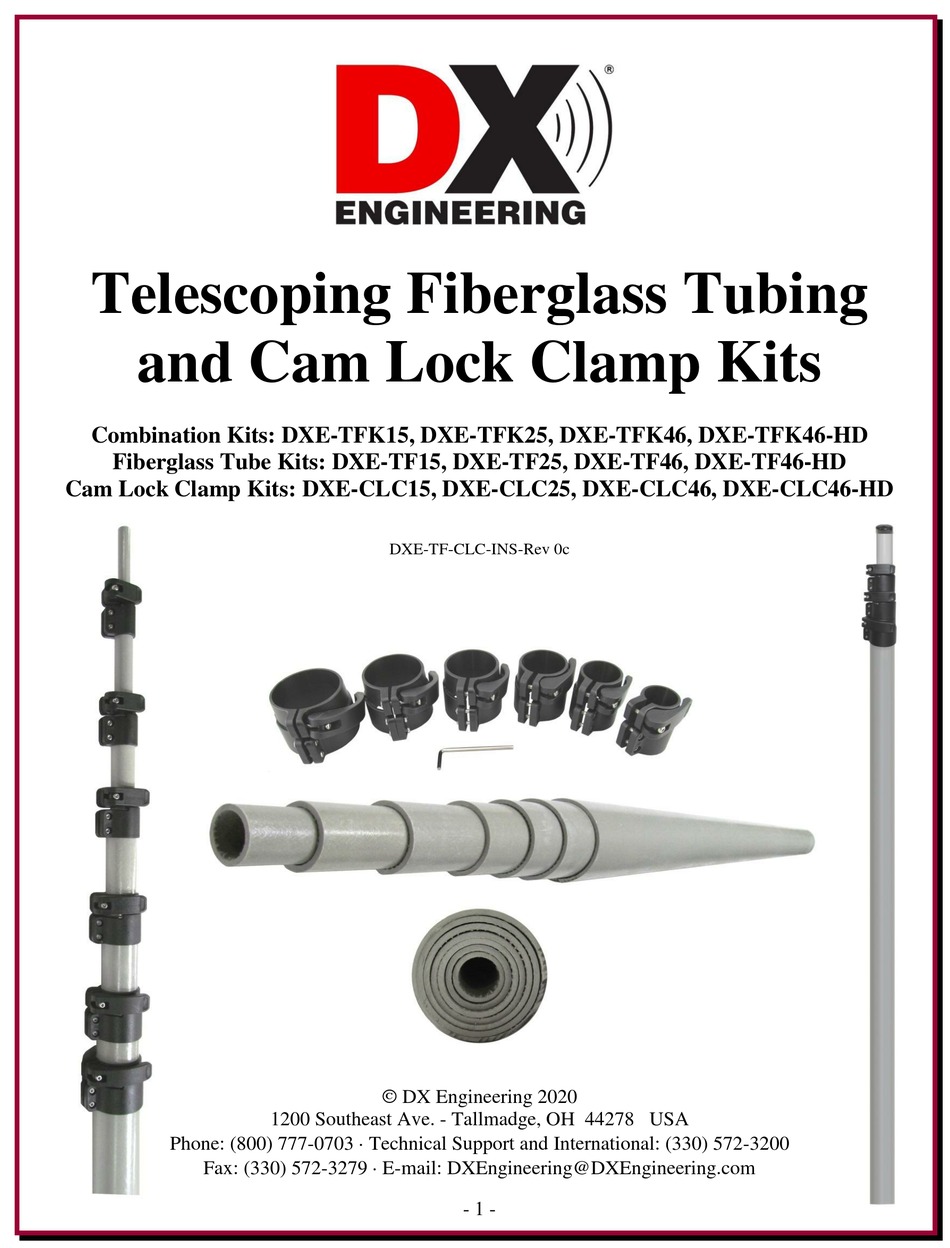

- Page 1 Telescoping Fiberglass Tubing and Cam Lock Clamp Kits Combination Kits: DXE-TFK15, DXE-TFK25, DXE-TFK46, DXE-TFK46-HD Fiberglass Tube Kits: DXE-TF15, DXE-TF25, DXE-TF46, DXE-TF46-HD Cam Lock Clamp Kits: DXE-CLC15, DXE-CLC25, DXE-CLC46, DXE-CLC46-HD DXE-TF-CLC-INS-Rev 0c DX Engineering 2020 1200 Southeast Ave. - Tallmadge, OH 44278 USA Phone: (800) 777-0703 ...

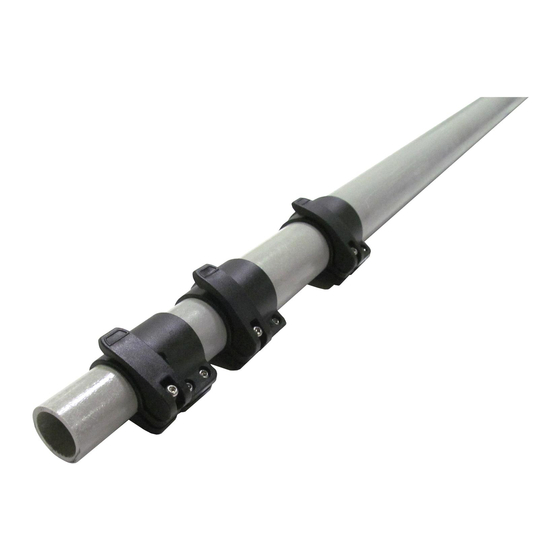

- Page 2 Introduction The DX Engineering Fiberglass Tubing Kits are constructed of high quality pultruded fiberglass tubing. The combination kits come with custom designed UV resistant cam lock compression clamps, a 3 mm Allen wrench and vinyl end cap. The fiberglass kits come in 3 sizes: 15, 25 or 46 feet in length when assembled.
- Page 3 Kits Available There are four Fiberglass Tubing Combination Kits, Four Fiberglass Tube Kits and Four Cam Lock Clamp Kits available from DX Engineering. The following chart shows the various kit part numbers available: Part Number Complete Fiberglass Tube and Cam Lock Clamp Kits - Description...
- Page 4 djusting the cam lock clamps is accomplished using the appropriate size fiber glass tubes and the included 3 mm Allen wrench. Once adjusted, they should work as expected and not need adjusting every time they are used. Use the included 3 mm Allen wrench to adjust the cam lock clamps. Insert the tubing in both sides of the cam lock clamp with the cam lock clamp open.
- Page 5 Marked Tubes and Cam Lock Clamps Install the cam lock clamps on the element tubes with the overlap as shown. Install the vinyl cap on the top tube. When ready to use, loosen each cam lock clamp and slide the fiberglass tube outward until you see the permanent mark you made, press the lever to close the clamp.
- Page 6 Guying Guying of vertical tubing is strongly recommended for stability. A four level, four point guying scheme provides the best mechanical advantage to prevent wind stress, regardless of direction. The guy lines should also be used during raising or lowering to minimize stress on the lower tube sections. Guy Ring kits are available from DX Engineering, you can...
- Page 7 Every effort is made to supply the latest manual revision with each product. Occasionally a manual will be updated between the time your DX Engineering product is shipped and when you receive it. Please check the DX Engineering web site (www.dxengineering.com) for the latest revision manual.
- Page 8 All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted; no allowance shall be made for any labor charges of Buyer for replacement of parts, adjustment or repairs, or any other work, unless such charges are authorized in advance by DX Engineering.
