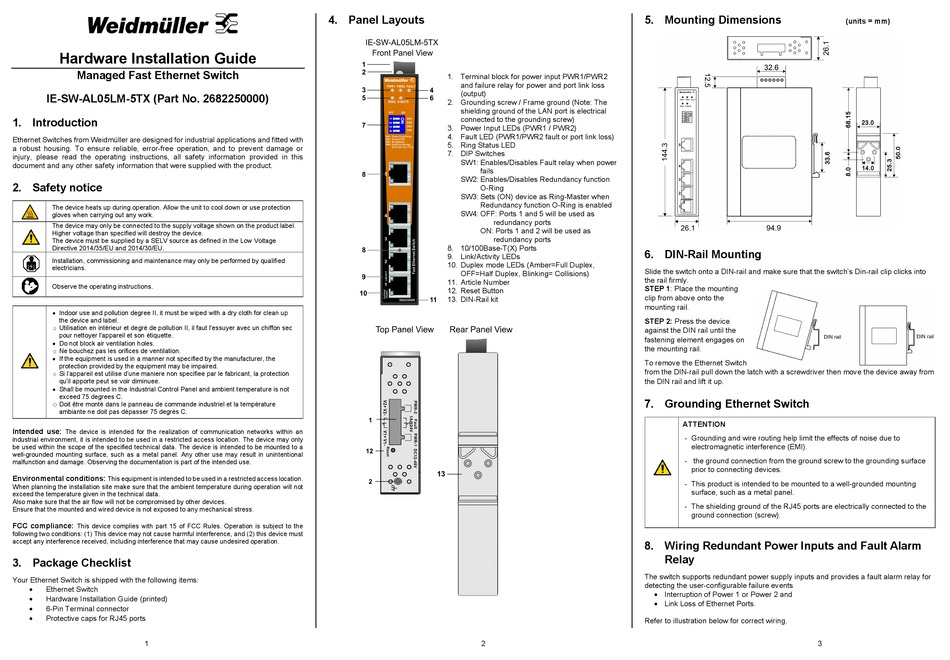

Hardware Installation Guide
Managed Fast Ethernet Switch

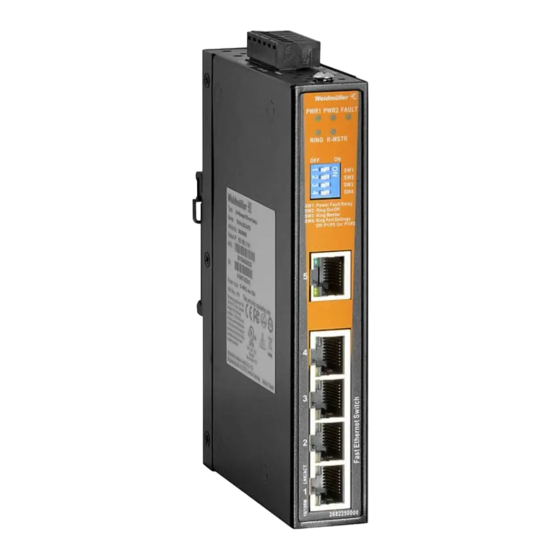

IE-SW-AL05LM-5TX (Part No. 2682250000)
1. Introduction
Ethernet Switches from Weidmüller are designed for industrial applications and fitted with
a robust housing. To ensure reliable, error-free operation, and to prevent damage or
injury, please read the operating instructions, all safety information provided in this
document and any other safety information that were supplied with the product.
2. Safety notice
The device heats up during operation. Allow the unit to cool down or use protection
gloves when carrying out any work.
The device may only be connected to the supply voltage shown on the product label.
Higher voltage than specified will destroy the device.
The device must be supplied by a SELV source as defined in the Low Voltage
Directive 2014/35/EU and 2014/30/EU.
Installation, commissioning and maintenance may only be performed by qualified
electricians.
Observe the operating instructions.
 Indoor use and pollution degree II, it must be wiped with a dry cloth for clean up
the device and label.
o Utilisation en intérieur et degré de pollution II, il faut l'essuyer avec un chiffon sec
pour nettoyer l'appareil et son étiquette.
 Do not block air ventilation holes.
o Ne bouchez pas les orifices de ventilation.
 If the equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
o Si l'appareil est utilise d'une maniere non specifiee par le fabricant, la protection
qu'il apporte peut se voir diminuee.
 Shall be mounted in the Industrial Control Panel and ambient temperature is not
exceed 75 degrees C.
o
Doit être monté dans le panneau de commande industriel et la température
ambiante ne doit pas dépasser 75 degrés C.
Intended use:
The device is intended for the realization of communication networks within an
industrial environment, it is intended to be used in a restricted access location. The device may only
be used within the scope of the specified technical data. The device is intended to be mounted to a
well-grounded mounting surface, such as a metal panel. Any other use may result in unintentional
malfunction and damage. Observing the documentation is part of the intended use.
Environmental conditions:
This equipment is intended to be used in a restricted access location.
When planning the installation site make sure that the ambient temperature during operation will not
exceed the temperature given in the technical data.
Also make sure that the air flow will not be compromised by other devices.
Ensure that the mounted and wired device is not exposed to any mechanical stress.
FCC compliance:
This device complies with part 15 of FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
3. Package Checklist
Your Ethernet Switch is shipped with the following items:
Ethernet Switch
Hardware Installation Guide (printed)
6-Pin Terminal connector
Protective caps for RJ45 ports
1
4. Panel Layouts
1. Terminal block for power input PWR1/PWR2
and failure relay for power and port link loss
(output)
2. Grounding screw / Frame ground (Note: The
shielding ground of the LAN port is electrical
connected to the grounding screw)
3. Power Input LEDs (PWR1 / PWR2)
4. Fault LED (PWR1/PWR2 fault or port link loss)
5. Ring Status LED
7. DIP Switches
SW1: Enables/Disables Fault relay when power
fails
SW2: Enables/Disables Redundancy function
O-Ring
SW3: Sets (ON) device as Ring-Master when
Redundancy function O-Ring is enabled
SW4: OFF: Ports 1 and 5 will be used as
redundancy ports
ON: Ports 1 and 2 will be used as
redundancy ports
8. 10/100Base-T(X) Ports
9. Link/Activity LEDs
10. Duplex mode LEDs (Amber=Full Duplex,
OFF=Half Duplex, Blinking= Collisions)
11. Article Number
12. Reset Button
13. DIN-Rail kit
2
5. Mounting Dimensions
6. DIN-Rail Mounting
Slide the switch onto a DIN-rail and make sure that the switch's Din-rail clip clicks into
the rail firmly.
STEP 1: Place the mounting
clip from above onto the
mounting rail.
STEP 2: Press the device
against the DIN rail until the
fastening element engages on
the mounting rail.
To remove the Ethernet Switch
from the DIN-rail pull down the latch with a screwdriver then move the device away from
the DIN rail and lift it up.
7. Grounding Ethernet Switch
ATTENTION
- Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI).
- the ground connection from the ground screw to the grounding surface
prior to connecting devices.
- This product is intended to be mounted to a well-grounded mounting
surface, such as a metal panel.
- The shielding ground of the RJ45 ports are electrically connected to the
ground connection (screw).
8. Wiring Redundant Power Inputs and Fault Alarm
Relay
The switch supports redundant power supply inputs and provides a fault alarm relay for
detecting the user-configurable failure events
 Interruption of Power 1 or Power 2 and
 Link Loss of Ethernet Ports.
Refer to illustration below for correct wiring.
3
(units = mm)
