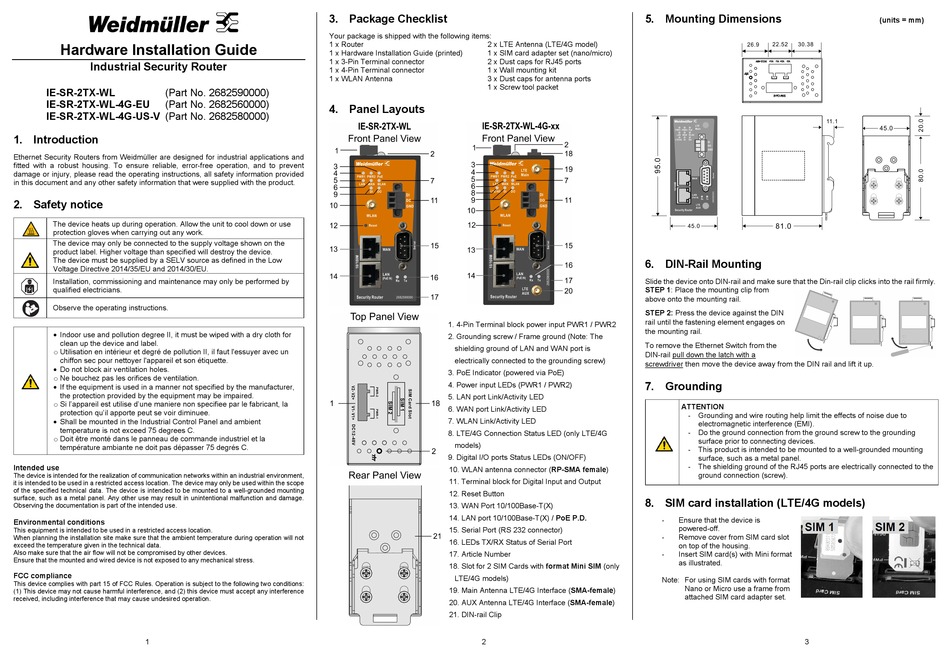

Weidmüller IE-SR-2TX-WL Hardware Installation Manual

Hardware Installation Guide

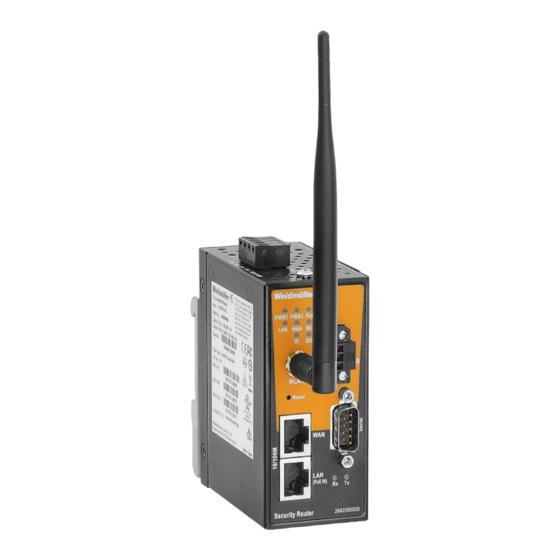

Industrial Security Router
IE-SR-2TX-WL (Part No. 2682590000)
IE-SR-2TX-WL-4G-EU (Part No. 2682560000)
IE-SR-2TX-WL-4G-US-V (Part No. 2682580000)
1. Introduction
Ethernet Security Routers from Weidmüller are designed for industrial applications and
fitted with a robust housing. To ensure reliable, error-free operation, and to prevent
damage or injury, please read the operating instructions, all safety information provided
in this document and any other safety information that were supplied with the product.
2. Safety notice
The device heats up during operation. Allow the unit to cool down or use
protection gloves when carrying out any work.
The device may only be connected to the supply voltage shown on the
product label. Higher voltage than specified will destroy the device.
The device must be supplied by a SELV source as defined in the Low
Voltage Directive 2014/35/EU and 2014/30/EU.
Installation, commissioning and maintenance may only be performed by
qualified electricians.
Observe the operating instructions.
 Indoor use and pollution degree II, it must be wiped with a dry cloth for
clean up the device and label.
o Utilisation en intérieur et degré de pollution II, il faut l'essuyer avec un
chiffon sec pour nettoyer l'appareil et son étiquette.
 Do not block air ventilation holes.
o Ne bouchez pas les orifices de ventilation.
 If the equipment is used in a manner not specified by the manufacturer,
the protection provided by the equipment may be impaired.
o Si l'appareil est utilise d'une maniere non specifiee par le fabricant, la
protection qu'il apporte peut se voir diminuee.
 Shall be mounted in the Industrial Control Panel and ambient
temperature is not exceed 75 degrees C.
o Doit être monté dans le panneau de commande industriel et la
température ambiante ne doit pas dépasser 75 degrés C.
Intended use
The device is intended for the realization of communication networks within an industrial environment,
it is intended to be used in a restricted access location. The device may only be used within the scope
of the specified technical data. The device is intended to be mounted to a well-grounded mounting
surface, such as a metal panel. Any other use may result in unintentional malfunction and damage.
Observing the documentation is part of the intended use.
Environmental conditions
This equipment is intended to be used in a restricted access location.
When planning the installation site make sure that the ambient temperature during operation will not
exceed the temperature given in the technical data.
Also make sure that the air flow will not be compromised by other devices.
Ensure that the mounted and wired device is not exposed to any mechanical stress.
FCC compliance
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
1
3. Package Checklist
Your package is shipped with the following items:
1 x Router 2 x LTE Antenna (LTE/4G model)
1 x Hardware Installation Guide (printed) 1 x SIM card adapter set (nano/micro)
1 x 3-Pin Terminal connector 2 x Dust caps for RJ45 ports
1 x 4-Pin Terminal connector 1 x Wall mounting kit
1 x WLAN Antenna 3 x Dust caps for antenna ports
1 x Screw tool packet
4. Panel Layouts
1. 4-Pin Terminal block power input PWR1 / PWR2
2. Grounding screw / Frame ground (Note: The
shielding ground of LAN and WAN port is
electrically connected to the grounding screw)
3. PoE Indicator (powered via PoE)
4. Power input LEDs (PWR1 / PWR2)
5. LAN port Link/Activity LED
6. WAN port Link/Activity LED
7. WLAN Link/Activity LED
8. LTE/4G Connection Status LED (only LTE/4G
models)
9. Digital I/O ports Status LEDs (ON/OFF)
10. WLAN antenna connector (RP-SMA female)
11. Terminal block for Digital Input and Output
12. Reset Button
13. WAN Port 10/100Base-T(X)
14. LAN port 10/100Base-T(X) / PoE P.D.
15. Serial Port (RS 232 connector)
16. LEDs TX/RX Status of Serial Port
17. Article Number
18. Slot for 2 SIM Cards with format Mini SIM (only
LTE/4G models)
19. Main Antenna LTE/4G Interface (SMA-female)
20. AUX Antenna LTE/4G Interface (SMA-female)
21. DIN-rail Clip
2
5. Mounting Dimensions
6. DIN-Rail Mounting
Slide the device onto DIN-rail and make sure that the Din-rail clip clicks into the rail firmly.
STEP 1: Place the mounting clip from
above onto the mounting rail.
STEP 2: Press the device against the DIN
rail until the fastening element engages on
the mounting rail.
To remove the Ethernet Switch from the
DIN-rail pull down the latch with a
screwdriver then move the device away from the DIN rail and lift it up.
7. Grounding
ATTENTION
- Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI).
- Do the ground connection from the ground screw to the grounding
surface prior to connecting devices.
- This product is intended to be mounted to a well-grounded mounting
surface, such as a metal panel.
- The shielding ground of the RJ45 ports are electrically connected to the
ground connection (screw).
8. SIM card installation (LTE/4G models)
- Ensure that the device is
powered-off.
- Remove cover from SIM card slot
on top of the housing.
- Insert SIM card(s) with Mini format
as illustrated.
Note: For using SIM cards with format
Nano or Micro use a frame from
attached SIM card adapter set.
3
(units = mm)
