www.pollardbros.com

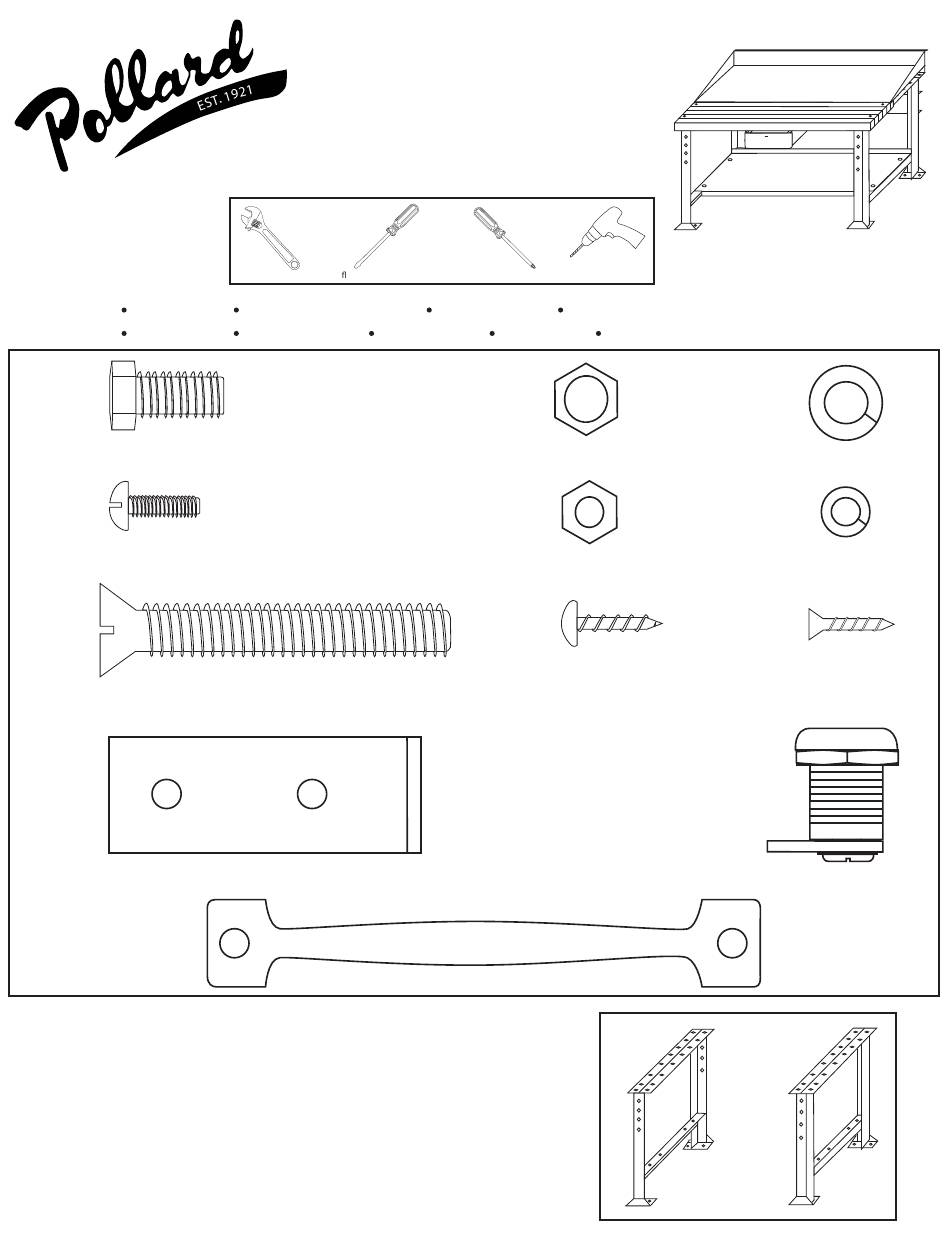

Includes:
(2) Bench Legs
(1) Maple Top
12
x
3/8" x 3/4" Hex Head Machine Screw
10
x
1/4" x 5/8" Round Head Machine Screw
4
x
3/8" x 3" Flat Head Machine Screw
1
x
Cabinet Lock Attachment
1
x
Steps:
1
Stand legs upright and face as shown.
131 - Steel Wood Work Bench
Assembly Instructions
Tools Needed:
wrench
at head screwdriver
(1) Formed Channel Stringer
(1) 12 ga. Steel Top
(1) Back Plate
phillips head screwdriver
power drill
(1) Formed Shelf
(1) Drawer Cover w/ runners attached
(2) End Plates
(1) Bench Drawer Body w/ Sliding Tray
16
x
3/8" Hex Nut
10
x
1/4" Hex Nut
10
x
#12- 3/4"
Wood Screw
12
x
3/8" Lock Washer
10
x
1/4" Lock Washer
7
x
#8 - 3/4
Wood Screw
1
x
Cylinder Lock
Drawer Handle
Advertisement
Table of Contents
Related Manuals for Pollard 131
Summary of Contents for Pollard 131
- Page 1 131 - Steel Wood Work Bench Assembly Instructions www.pollardbros.com Tools Needed: Includes: wrench at head screwdriver phillips head screwdriver power drill (2) Bench Legs (1) Formed Channel Stringer (1) Formed Shelf (1) Drawer Cover w/ runners attached (1) Maple Top (1) 12 ga.
- Page 2 Attach stringer to the back leg uprights using (4) 3/8” x 3/4” Hex Head Machine Screws, 3/8“ hex nuts, and 3/8” washers. HAND TIGHTEN ONLY. Attach shelf to bench leg crosses with the form up to the back using 3/8” x 3/4” Hex Head Machine Screws, 3/8“...
- Page 3 Cylinder into lock hole and replace 1/2” Hex Nut, Cam, and End Screw according to diagram. Attach drawer handle with (2) 8/32“ x 3/8” Flat Head Machine Screws and 8/32” nuts. Pollard Brothers Manufacturing 5504 N. Northwest Highway Chicago IL 60630 (773)763-6868 (773)763-4466 (800) 551-5566...
