www.pollardbros.com

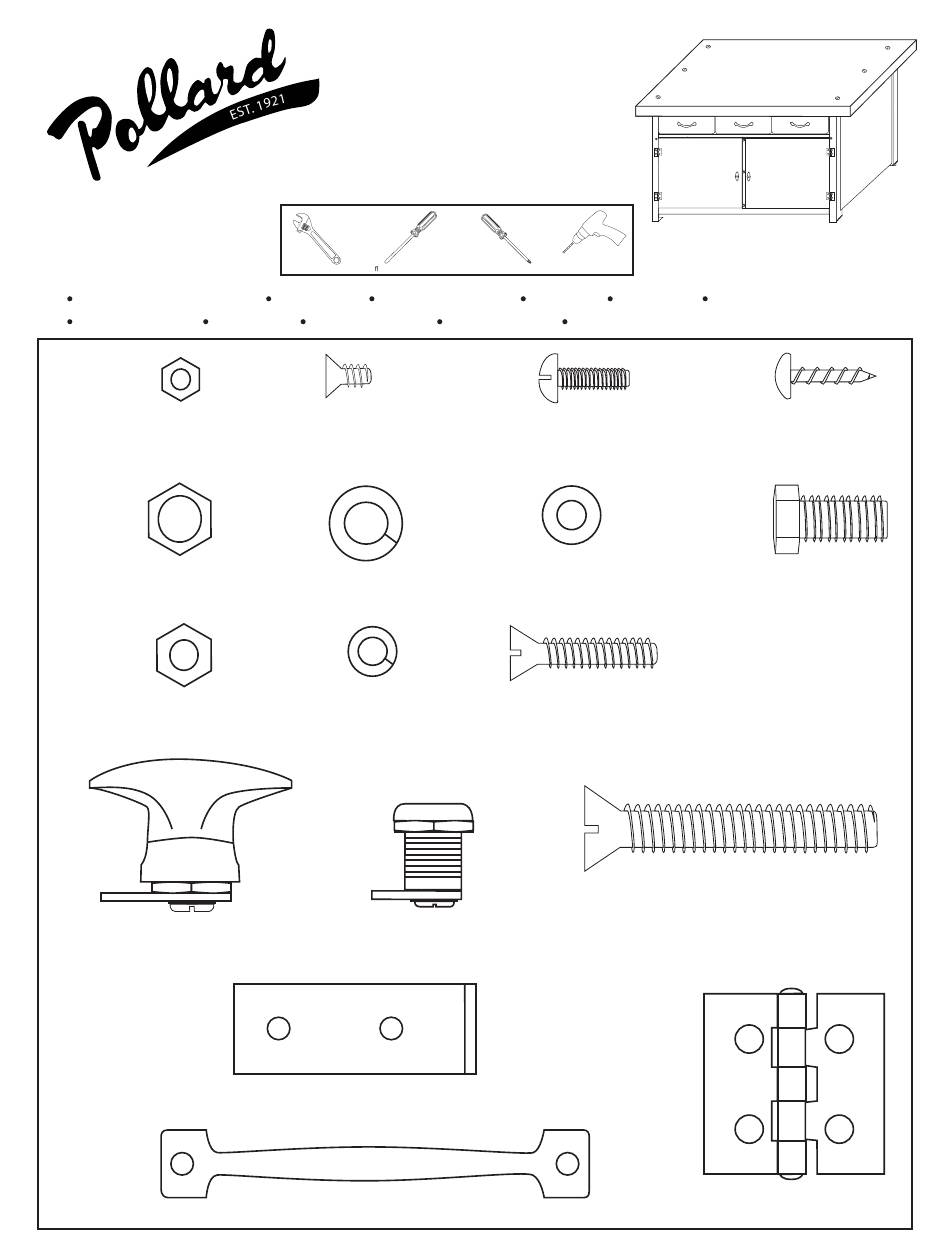

Includes:
(2) Cabinet Sides (Left & Right) (1) Back Plate
(1) Door Center Post (1) Maple Top (3) Drawer Handles
6
x
8/32" Hex Nut
18
x
3/8" Hex Nut
27
x
1/4" Hex Nut
2
x
T-Handle Lock
3
3
x
163-530-34 & 163-530-35
Cabinet Work Bench
Assembly Instructions
Tools Needed:
wrench
at head screwdriver
(1) Kick Plate Channel
6
x
8/32" x 3/8" Flat Head
Machine Screw
12
x
3/8" Lock Washer
27
x
1/4" Lock Washer
3
x
Cylinder Lock
x
Cylinder Lock Attachment
Drawer Handle
power drill
phillips head screwdriver
(2) Shelves
(1) Door Jam
(3) Drawer Covers
(3) Drawers
22
x
1/4" x 5/8" Round Head
Machine Screw
5
x
Spacer
5
x
1/4" x 1 1/4" Flat Head
Machine Screw
6
x
3/8" x 2 1/2" Flat Head Machine Screw
Note: For 163-530-35 (6) 3/8" x 3 1/2" Flat Head Machine
Screws will replace (6) 3/8" x 2 1/2" Flat Head Machine Screws.
(2) Cabinet Doors (Left & Right)
30
x
#12- 3/4" Wood Screw
12
x
3/8" x 3/4" Hex Head
Machine Screw
4
x
2" x 2" Butt Hinges
Advertisement
Table of Contents
Related Manuals for Pollard 163-530-34
Summary of Contents for Pollard 163-530-34
- Page 1 163-530-34 & 163-530-35 Cabinet Work Bench Assembly Instructions www.pollardbros.com Tools Needed: Includes: wrench at head screwdriver power drill phillips head screwdriver (2) Cabinet Sides (Left & Right) (1) Back Plate (1) Kick Plate Channel (2) Shelves (1) Door Jam (2) Cabinet Doors (Left & Right)
- Page 2 Steps: Insert Cabinet Back Plate in inside of rear ange of Left Cabinet Side. Attach Left Cabinet Side to Cabinet Back Plate using (3) 1/4” x 5/8” Round Head Machine Screws, 1/4” Hex Nuts, and 1/4” Lock Washers. Attach Right Cabinet Side the same way.
- Page 3 Attach Door Center Post to Door Jam and Shelves using (3) 1/4” x 1 1/4” Flat Head Machine Screws, Hex Nuts, and Lock Washers, and (3) Nylon Spacers. Note: Spacers should be between Center Post and Shelves and Door Jam. Attach 2”...
- Page 4 Drawer must be inserted slowly and squarely to ensure proper attach- ment to drawer slide on underside of cover. Pollard Brothers Manufacturing 5504 N. Northwest Highway Chicago IL 60630 (773)763-6868 (773)763-4466 (800) 551-5566...
