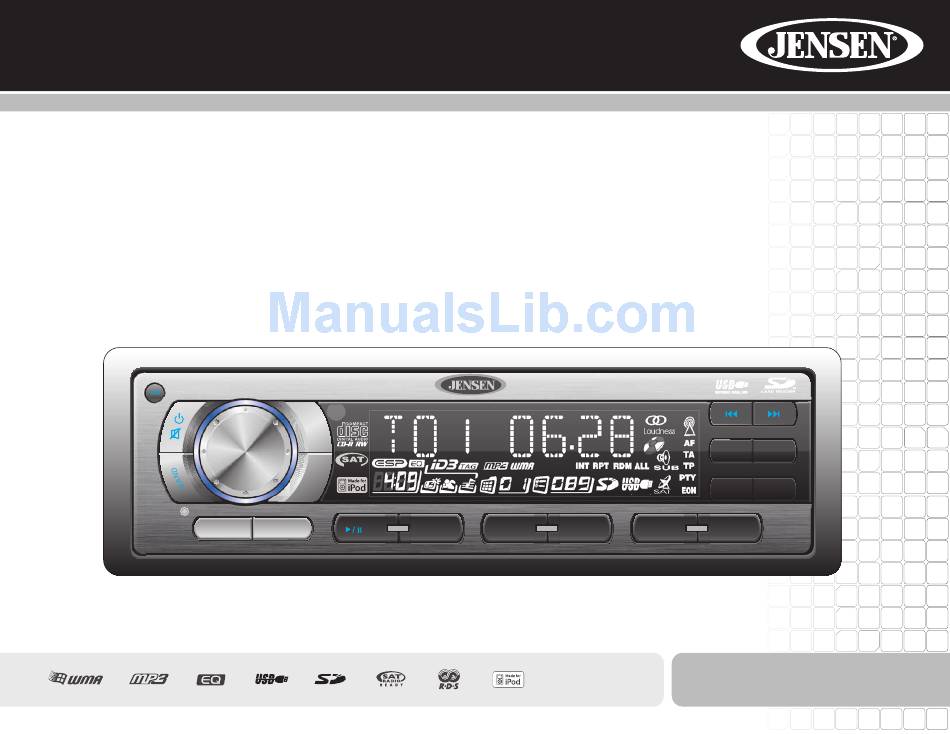

- Page 1 MP6512i Installation and Operation Manual MP6512i RADIO READY MENU/ENTER-PRESS LOUD LO/DX Loudness TUNE / TRACK CH/CAT SCAN iPod Menu Watts Peak Watts en Crête Vatios el Máximo 60W x 4...
-
Page 3: Table Of Contents
MP6512i TABLE OF CONTENTS Introduction ...1 Installation ...2 Wiring ...5 Front Panel Release ...6 Operation ...7 Tuner Operation ...10 CD Player Operation ...12 MP3/WMA Operation ...13 Satellite Radio Operation ...17 iPod Operation ...19 Remote Control ...20 Care and Maintenance ...21 Troubleshooting ...22 Specifications ...23... - Page 4 MP6512i...
-
Page 5: Introduction
MP6512i INTRODUCTION Congratulations on your purchase of the Jensen MP6512i Mobile Receiver. It’s a good idea to read all of the instructions before beginning the installation. We recommend having your Jensen MP6512i installed by a reputable installation shop. Features CD / MP3 / WMA •... -
Page 6: Installation
INSTALLATION This unit is designed for installation in cars, trucks and vans with an existing radio opening. In many cases, a special installation kit will be required to mount the radio to the dashboard. These kits are available at electronics supply stores and car stereo specialty shops. - Page 7 MP6512i CAUTION: For proper operation of the CD player, the chassis must be mounted within 20° of horizontal. Make sure the unit is mounted within this limitation. 4. Place the radio in front of the dashboard opening so the wiring can be brought through the mounting sleeve.
- Page 8 MP6512i Removing the Radio To remove the radio after installation, remove the trim ring by lifting in the center and pulling it off from either side. Insert the removal keys straight back until they lock, then pull the radio out. If removal keys are inserted at an angle, they will not lock properly and will not release the unit.
-
Page 9: Wiring
MP6512i WIRING NOTE: The amplifier in this radio is only designed for use with four speakers. Never combine (bridge) outputs for use with two speakers. Never ground negative speaker leads to chassis ground. Failure to wire exactly as shown may cause electrical damage to DATA BUS the radio. -
Page 10: Front Panel Release
MP6512i FRONT PANEL RELEASE The open button (1) releases the mechanism that holds the front panel to the chassis. Detaching the Front Panel To detach the front panel: 1. Press and hold the power button (2) to turn the unit off. 2. -
Page 11: Operation
MP6512i OPERATION Power Press the power button (2) to turn the unit on. Press and hold the power button again to turn the unit off. NOTE: LCD panels may take longer to respond when subjected to cold temperatures for an extended period of time. In addition, the visibility of the numbers on the LCD may decrease slightly. - Page 12 Mid-Range To adjust Mid-Range options, press the MENU button (22) to access the audio menu. Turn the rotary encoder until “MID” appears in the display. Press the MENU button repeatedly to access the following Mid-Range settings: • Mid-Range Center Frequency Turn the rotary encoder clockwise to adjust the Mid-Range Center Frequency to 500, 1000, 1500 or 2500 (500Hz, 1KHz, 1.5KHz, 2.5KHz).
- Page 13 MP6512i select “OFF”, “LOW”, “MID” or “HIGH”. When activated, “LOUDNESS” appears on the display panel. Local/Distant Reception (LO/DX) When the Local function is on, only radio stations with a strong signal are played. To activate Local reception mode, press the LO/DX button (6). NOTE: Distant mode is indicated by a triangle with circles above it.
-
Page 14: Tuner Operation
TUNER OPERATION The MP6512i allows you to receive channels in U.S.A. or EUROPE mode. See “Frequency Spacing (AREA SET)” on page 9 to learn how to change the tuner options. MP6512i READY Select a Band Press the BAND button (3) to change between three FM and two AM bands. - Page 15 MP6512i • Language • Religious Music • Religious Talk • Personality • Public • College • Weather • Emergency Test • Emergency To search for stations in a PTY category: 1. Press the PTY button (17) to view the current PTY category. 2.
-
Page 16: Cd Player Operation
CD PLAYER OPERATION Insert CD 1. Press the OPEN/EJECT button (1) and the motorized front panel will slide down automatically to display the disc slot. • If a disc is already present, it will be ejected. Remove the ejected disc before proceeding. •... -
Page 17: Mp3/Wma Operation
MP6512i MP3/WMA OPERATION MP3 and WMA (Windows Media Audio) music files are digital audio files that are compressed to allow more files on a single CD. This unit can play MP3/WMA directly from files contained on a CD-R/RW, SD card or USB device using the buttons on the receiver (or optional remote control) as described below. - Page 18 Bit Rates The unit supports bit rates from 32 - 320 kbps. MP3 Playing Order When selected for play, files and folders (Folder Search, File Search or Folder Select) are accessed in the order they were written by the CD writer. As a result, the order in which they are expected to be played may not match the order in which they are actually played.
- Page 19 MP6512i MP6512i READY Pause Press the pause >/|| button (8) to suspend play. Press the pause >/|| button again to resume play. Accessing the ID3 Tag Press the DISP button (21) repeatedly during MP3/WMA play to access the ID3 information manually. The display will show any of the following information that is programmed on the source: Folder Name, File Name, Track Title, Artist Title, Album Name.
- Page 20 MP3/WMA File or Folder Search The unit offers three methods of searching for files or folders on a disc. Direct Track Search 1. Press the AS button (15) to activate the Track Search function. The LCD will display "TRK SCH". 2.
-
Page 21: Satellite Radio Operation
MP6512i SATELLITE RADIO OPERATION ® Listeners can subscribe to XM Radio on the Web by visiting www.xmradio.com, or by calling (800) 967-2346. Customers should have their Radio ID ready (see “Displaying the Identification (ID) Code”). Customers can receive a limited number of free-to-air channels without activation. - Page 22 Category Tuning Mode To select stations in a specific category, perform the following steps. 1. Press the AS button (15) twice. “CATEGORY” appears on the screen. 2. Turn the rotary encoder to move through the available categories. 3. Press the MENU button (22) to select the displayed category. 4.
-
Page 23: Ipod Operation
MP6512i IPOD OPERATION Accessing iPod Mode Press the SRC button (7) to change to iPod playback mode. iPod playback begins automatically when an iPod is connected. MP6512i READY Selecting a Track Press the TUNE/TRACK >>| or |<< button (19) to select a track. Press and hold the TUNE/TRACK >>| or |<<... -
Page 24: Remote Control
REMOTE CONTROL The remote control will allow you to control many functions of the MP6512i. MUTE MENU SCAN Operating Range The remote control sensor (20) is located to the right of the SRC button. The remote control can operate within a distance of 3~5m. REMOTE SENSOR Replacing the Battery When the range of operation of the card remote control becomes short or... -
Page 25: Care And Maintenance
MP6512i CARE AND MAINTENANCE CD Player The following guidelines will help you extend the life of your CD player: 1. When cleaning the vehicle interior, do not get water or cleaning fluids on the unit. 2. The CD player will not operate properly in extreme hot/cold or under damp conditions. -
Page 26: Troubleshooting
TROUBLESHOOTING Problem Cause Does not operate No power to yellow Check connection with test (display does not wire; no power to red light; check vehicle fuse with light) wire test light Inline fuse blown Replace fuse No power to unit Inline fuse blown Check/replace fuse No speakers oper-... -
Page 27: Specifications
MP6512i SPECIFICATIONS CEA Power Ratings Power Output ....18 watts RMS X 4 channels into 4-ohms @ < 1% THD+N Signal to Noise Ratio....70dBA below reference (reference: 1 watt, 4-ohms) Frequency Response . - Page 28 MP6512i...
-
Page 29: Limited Warranty
Who is covered? The Company extends this warranty to the original retail purchaser of products purchased through an authorized Audiovox retailer in the U.S.A., Puerto Rico or Canada. This warranty is not transferable or assignable. Proof of purchase is required in the form of an original sales receipt. - Page 30 Audiovox Electronics Corporation Hauppauge, NY 11788 Technical Assistance: 1-800-323-4815 www.jensen.com © 2007 Audiovox Ver. 052107 Printed in China...
