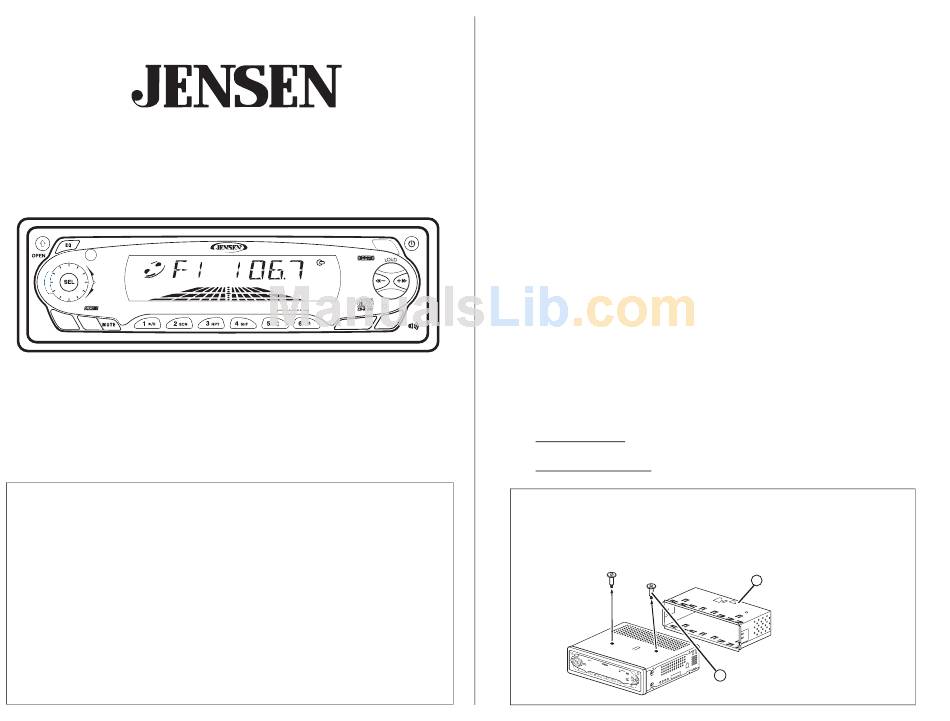

CD4720
Owner's Manual
CD4720
AUX IN
AUDIO
ADJUST
ST
LOUD
MONO
LO/DX
Audiovox Electronics Corporation
150 Marcus Boulevard
Hauppauge, NY 11788
1-800-323-4815
www.jensen.com
© 2004 Audiovox
Thank You!
Thank you for choosing a Jensen product. We hope you will find the instructions in this owner's
manual clear and easy to follow. If you take a few minutes to look through it, you'll learn how to
use all the features of your new Jensen receiver for maximum enjoyment.
Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Tuner Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
CD Player Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
CD Changer Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
®
SCAN
MOSFET 60
WATTS
X 4
BAND
DISP
SUB-W
CD RECEIVER
/
AS/PS
MODE
v.123103
Preparation
Getting Started
It's a good idea to read all of the instructions before beginning the installation.
Tools and Supplies
The following tools and supplies are needed to install the radio.
•
Torx type, flat-head and Phillips screwdrivers
•
Wire cutters and strippers
•
Tools to remove existing radio (screwdriver, socket wrench set or other tools)
•
Electrical tape
•
Crimping tool
DIM
•
Volt meter/test light
•
Crimp connections
•
18 gauge wire for power connections
•
16 – 18 gauge speaker wire
SUB-W
Speaker Requirements: Only connect speakers rated in the load impedance of 4 ohms.
Speakers with a load impedance less than 4 ohms could damage the unit.
Disconnect Battery
Before you begin, always disconnect the battery negative terminal.
Prepare Radio
1.
Remove half sleeve – Press the metal levers on both sides to remove the half-sleeve
from the radio.
2.
Remove transport screws – Remove screws before inserting a CD.
EQ
MON
LOC
MUT
Prepare Radio
Preparar la Radio
Préparer la Radio
Remove half sleeve
Quite la media camisa
Enlevez le demi-fourreau
1
Remove transport screws
SCN
2
Quite los tornillos transportadores
PAU
CD REC
RX
EIVE
SCN
R
DIM
RPT
BND/
LOU
SHF
DSP
Enlevez les vis de transport
AMS
MOD
SW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jensen CD4720 - AM/FM/CD Receiver With Detachable Face and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Audiovox Jensen CD4720 - AM/FM/CD Receiver With Detachable Face

Summary of Contents for Audiovox Jensen CD4720 - AM/FM/CD Receiver With Detachable Face

  • Page 1 CD4720 AUX IN AUDIO ADJUST LOUD CD RECEIVER MONO LO/DX Audiovox Electronics Corporation 150 Marcus Boulevard Hauppauge, NY 11788 1-800-323-4815 www.jensen.com © 2004 Audiovox v.123103 Thank You! Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s manual clear and easy to follow.

  • Page 2: Table Of Contents

    Il faut toujours débrancher la borne de batterie négative avant de commencer. Préparer la Radio Enlevez le demi-fourreau – Appuyez sur les verrous placés de chaque côté de l’autoradio pour enlever le demi-fourreau. Enlevez les vis de transport – Enlevez les vis avant d’insérer un CD. CD4720...

  • Page 3: Install Half-Sleeve

    When replacing a fuse, make sure the new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The CD4720 uses one 15 amp fuse located below the wiring connector: 15 amp fast blow ATO.

  • Page 4: Cableado

    Lors du remplacement d’un fusible, assurez-cous que le fusible de remplacement est du type et de la puissance appropriés. L’utilisation d’un fusible non approprié pourrait endommager la radio. Le CD4720 est doté d’un fusible de 15 A, situé sous le connecteur du câblage (15 A à fusion rapide, type ATO).

  • Page 5: Instalación

    Installation Final Installation Connect wiring adapter to existing wiring harness. Connect antenna lead. Slide radio chassis into half-sleeve. Secure radio to bracket using nut (if possible). Replace any items you removed from the dashboard. Final ISO-DIN Installation Remove trim ring. Mount factory brackets on new radio using existing screws from old radio.

  • Page 6: Basic Operation

    10F (full front) to 10R (full rear). “F=R” represents an equal balance between the front and rear speakers. 3. Mute Press MUTE (7) to silence the receiver. Press MUTE again to resume normal operation. Basic Operation Operación Básica Opération de base CD4720 AUX IN AUDIO ADJUST LOUD CD RECEIVER MONO...

  • Page 7: Audio Adjust

    CD4720 Basic Operation (continued) 4. Loudness Press and hold the BAND (19) button > 3 seconds to activate the Loudness. When the Loudness is on, LOUD appears in the bottom left of the display. Press and hold the BAND button again to turn the Loudness off.

  • Page 8: Tuner Operation

    MA. Chaque bande peut comprendre jusqu’à six stations programmées. 12. Local/Éloigné Appuyez sur LO/DX (6) pour boutonner le commutateur entre des stations locales plus fortes et des stations éloignées plus faibles. Cet arrangement est efficace en utilisant la fonction de balayage. CD4720...
  • Page 9 CD4720 Tuner Operation (continued) 13. Mono/Stereo Press MON button (21) to select mono or stereo mode. You can sometimes improve reception of distant stations by selection mono operation. 14. Tuning Manual Tuning Press the UP TUNING (+>>) or DOWN TUNING (<<-) button (17 and 18) for > 3 seconds until “MANUAL”...
  • Page 10 Press AS/PS (14) for < 3 seconds. The unit will pause for 5 seconds at each preset station. Press AS/PS again to stop scanning when the desired station is reached. Preset Stations Preselección de Emisoras Stations Programmées SCAN CD4720 AUX IN AUDIO ADJUST LOUD CD RECEIVER Press and hold...

  • Page 11: Cd Player Operation

    CD4720 CD Player Operation 18. Insert and Eject CD Press the OPEN (1) button and let the front panel flip down to display the CD slot. Insert a CD label-side up, and return the face plate to the locked position. The disc will automatically begin to play.

  • Page 12: Remote Control

    Do not expose the CD player to extremely high or low temperatures. Do not drive with an ejected CD in the slot. Remote Control The remote control will allow you to control the basic functions of the CD4720. The remote control sensor is at the top left of the BAND (19) button. Remote Control Prêt à...

  • Page 13: Cd Changer Operation

    CD4720 CD Changer Operation Please call Jensen technical support at 1-800-323-4815 for a list of CD changers compatible with this unit. Refer to the owner’s manual included with the CD changer for instructions on installing, loading and using the CD magazine.

  • Page 14: Specifications

    Try a different disc. The disc may be damaged or dirty AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that Press RESET. The disc may be damaged should this product or any part thereof, under normal use and conditions, be proven defective in material or...

  • Page 15: Corrección De Problemas

    Presione el botón RESET. Inserte el disco y AUDIOVOX CORPORATION (la Compañía) garantiza al comprador minorista original del presente producto vuelva a intentar que en el caso de que este producto o cualquiera de las partes del mismo, bajo circunstancias y condiciones de Presione el botón RESET.

  • Page 16: Dépannage

    Appuyez sur RESET, insérez le disque et essayez AUDIOVOX CORPORATION (la Société) garantit à l’acheteur initial du produit que si tout ou partie de ce produit, en cours d’utilisation et sous des conditions normales, venait à présenter des vices de matière Appuyez sur RESET.

Table of Contents

Save PDF
