Strategy Series
Features
• E xtended Low Frequency Response from the Optimally Tuned &
Ported Deep Drawn Galvanized Steel Enclosure (937 in
• U nique "Trap Door" Input Section Allows for Through Conduit Runs
with Rigid or Flex Conduit
• 1 " Exit Compression High Frequency Driver Coupled to a Specially
Designed Conical Wave-Guide Horn Provides Exceptional Output &
Accurate High Frequency Reproduction
• 90° Conical Dispersion (2 kHz Octave Band)
• F ront Mounted Tap Selector Switch for Easy System Tuning
Adjustments (1.9 Watts – 60 Watts @ 70.7V Plus 8Ω Setting)
• Includes C-Ring and V-Rails for Ceiling Mounting
• "Press-Fit" Grille to Better Blend Into Contemporary Architecture
Technical Specifications
Depth:
22
3
Diameter:
15
3
Shipping Weight:
23 lbs (10.43 kg)
Frequency Response: 60 Hz – 15 kHz (±5 dB)
Power Taps:
7.5, 15, 30, 60, & 8Ω
Speaker Type:
Coaxial
Dispersion:
90°
Sensitivity:
92 dB Average
Crossover Frequency: 2 kHz
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
FAP8CXT
II Coaxial Loudspeaker System
®
FAP8CXT
)
3
⁄
" (578 mm)
4
⁄
" (401 mm)
4
Applications
The Atlas Sound FAP8CXT is a true compression driver premium
p erformance 70.7V / 100V, tuned & ported 8" coaxial ceiling speaker
s ystem. The system is perfectly suited for many business music and
public address applications where high ceilings require loudspeakers with
increased efficiency and tighter pattern control.
The FAP8CXT System has a 90° dispersion angle and is well suited for
higher ceiling applications where tighter pattern control is required.
The FAP8CXT features a curvilinear, polypropylene cone for lower
harmonic distortion and a built-in 2 kHz crossover network for proper
frequency transition between the two transducers. This loudspeaker is
factory assembled in an optimally tuned & ported deep drawn enclosure
and includes a specially designed 60 Watt high performance 70.7V/100V
transformer. A convenient, front mounted, multi-position selector switch
allows tap adjustment without the need to remove the speaker from
the ceiling. This tap selector switch also includes a transformer bypass
s etting for instances where the FAP8CXT driver is direct coupled to a low
impedance amplifier.
AtlasSound.com

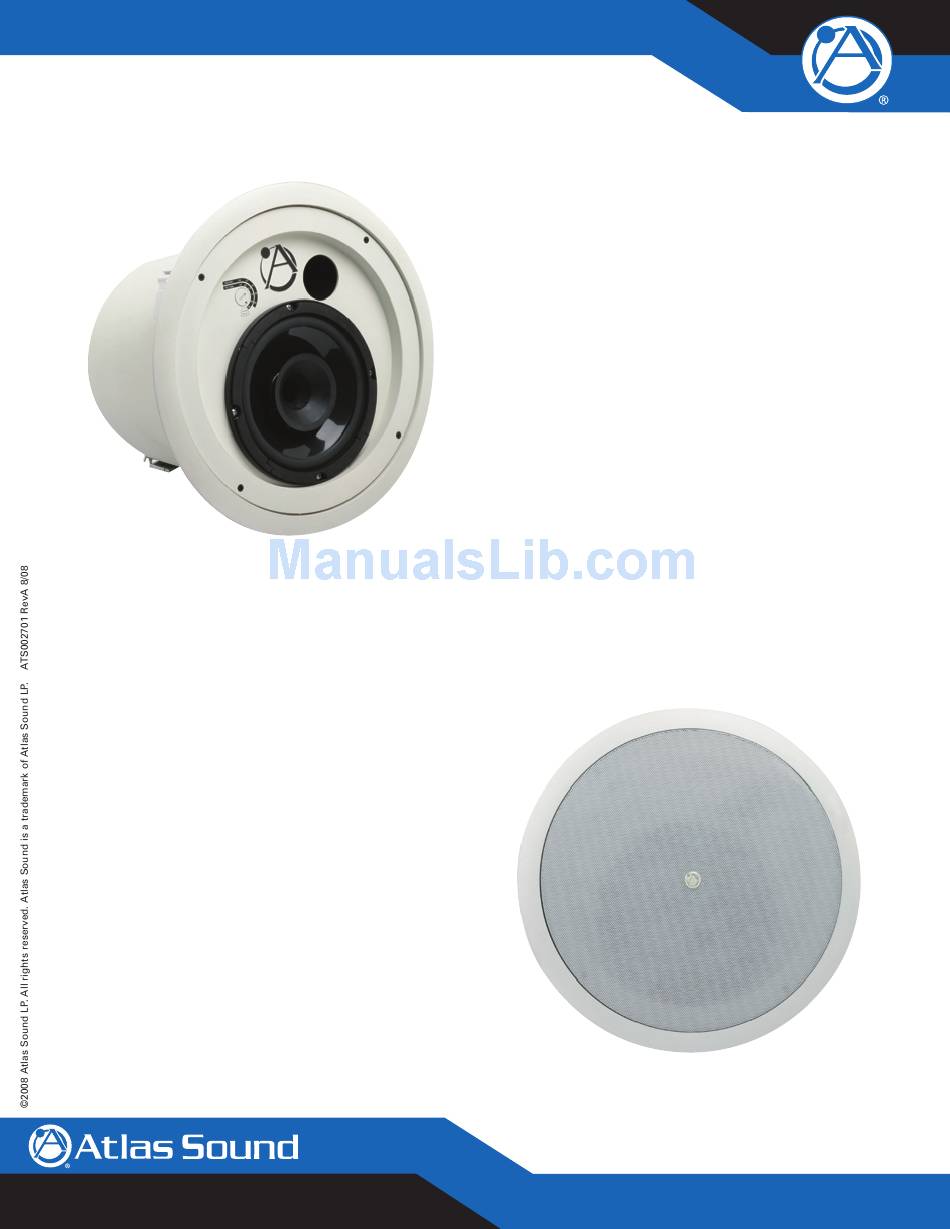

FAP8CXT
with Grille
1/4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Atlas FAP8CXT
Summary of Contents for Atlas FAP8CXT
-
Page 1: Technical Specifications
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A. TELEPHONE: (800) 876-3333 FAX (800) 765-3435 II Coaxial Loudspeaker System Applications The Atlas Sound FAP8CXT is a true compression driver premium p erformance 70.7V / 100V, tuned & ported 8" coaxial ceiling speaker s ystem. The system is perfectly suited for many business music and public address applications where high ceilings require loudspeakers with increased efficiency and tighter pattern control. The FAP8CXT System has a 90° dispersion angle and is well suited for higher ceiling applications where tighter pattern control is required. The FAP8CXT features a curvilinear, polypropylene cone for lower harmonic distortion and a built-in 2 kHz crossover network for proper frequency transition between the two transducers. This loudspeaker is factory assembled in an optimally tuned & ported deep drawn enclosure and includes a specially designed 60 Watt high performance 70.7V/100V transformer. A convenient, front mounted, multi-position selector switch allows tap adjustment without the need to remove the speaker from the ceiling. This tap selector switch also includes a transformer bypass s etting for instances where the FAP8CXT driver is direct coupled to a low FAP8CXT impedance amplifier. FAP8CXT with Grille AtlasSound.com... -
Page 2: Architects And Engineers Specifications
Mounting Accessories Mounting is simplified with Strategy Series allow easy installation into drop tile or drywall ceilings with provided tile bridge assembly. The tile bridge consists of (2) V-Rails and a C-Ring assembly. The C-Ring can be attached to the rails with the screws p rovided to extend support to the T-Bar grid in suspended ceiling a pplications. Multiple hole locations are provided to allow the C-Ring to be positioned to the outer edge of the tile if necessary. For existing drywall applications the tile bridge C-ring and support rails can be inserted into the hole cut for the FAP8CXT. For easy positioning the V shaped support rails match the shape of the C-ring tabs for easy maneuvering and location when working “blindly" above the deck. This technique is recommended to distribute the weight of the system across a wider area of the ceiling. A uniquely designed “easy access" input panel on the side of the enclo- sure allows conduit runs using flexible or rigid conduit. Below this cover resides a detachable Phoenix style locking four-pole connector for field wiring connection and pass-through. The package includes an attractive press-fit grille, which nicely matches contemporary architecture. For new construction drywall ceiling applications, the optional FAP82-TR trim ring is available. This unit provides a marked location for drywall installers to cut around, essentially reserving the desired location in the ceiling until final installation of FAP8CXT is completed. Mounting holes are provided to accommodate 16" or 24" OC stud/joist mounting. With the FAP8CXT, Atlas Sound has addressed pendant mounting for open ceiling applications. An eyebolt assembly is incorporated into the package allowing suspension of the FAP8CXT with load rated cable, “all thread" or other load rated hardware. The enclosure is finished white to match the bezel ring for better blend in open ceiling applications. Please note that the enclosure/bezel ring may also be painted to accommodate custom finishes when required. SPEAKER SYSTEMS SUSPENDED OVERHEAD POSE A RISK OF SERIOUS INJURY OR DEATH IF THEY FALL. Overhead suspension of any object (rigging) is inherently dangerous. It poses a substantial risk of injury or death to both those persons per- forming the installation and those persons who may later occupy the space under the suspended objects. You may be held liable for any injury... - Page 3 FAP8CXT Polars (Normalized to Zero on Axis) (-6 dB) 1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A. TELEPHONE: (800) 876-3333 FAX (800) 765-3435 FAP8CXT Beamwidth (-6 dB) Frequency (Hz) FAP8CXT Frequency Response Frequency (Hz) AtlasSound.com...
- Page 4 Fundamental Harmonic Harmonic FAP8CXT Impedance (Ohms) vs Frequency 1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A. TELEPHONE: (800) 876-3333 FAX (800) 765-3435 FAP8CXT Harmonic Distortion Frequency (Hz) Frequency (Hz) AtlasSound.com...
